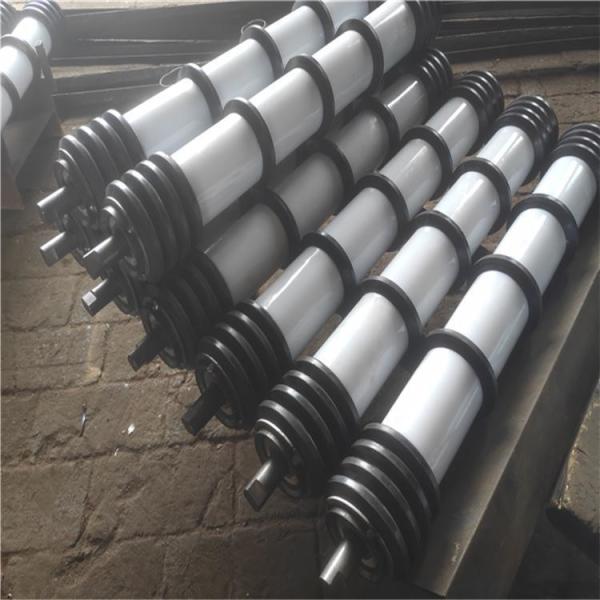

Belt Conveyor System Rubber Disc Return Roller Cema Carrier Roller

Detailed conveyor roller idler feature:

1. Roller idlers Dia 50mm-219mm, length 190-3400mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc
2. Tube: Q235
3. Shaft: 45# STEEL
5. Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.

6. Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
8. Welding: Mixed gas shielded arc welding end
9. Painting: Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting

conveyor roller Description

The basic types of rollers:

(1) The rollers are classified into self-aligning rollers, buffer rollers, trough rollers, and parallel rollers according to their uses. The function of the self-aligning roller is to correct the deviation of the belt of the belt conveyor. Usually, a rotary groove-shaped self-aligning roller is installed on the heavy-duty section of the conveyor, and a parallel self-aligning roller is installed on the no-load section. The buffer roller is applied to the tailstock of the machine according to the actual situation. When receiving the material, it can reduce the impact of the material on the belt, which is beneficial to the service life of the long belt. The trough-shaped roller is generally composed of two side rollers and a flat roller. The groove angle is generally 30 degrees. For a detachable belt conveyor, the three rollers of the trough-shaped roller are hinged to each other, so Called hinged roller. The parallel roller is generally a long roller, which is installed at the lower end under pressure, so it is called the lower roller.

(2) The rollers are divided into two types: steel rollers and plastic rollers. There are three types of bearing seats for rollers: cast iron, stamped steel plate and phenolic plastic.
