Steel Roller Belt FDA Conveyor Drum Pulley For Driving Or Tension
Steel Roller Belt FDA Conveyor Drum Pulley For Driving Or Tension
Steel Roller Belt FDA Conveyor Drum Pulley For Driving Or Tension
Steel Roller Belt FDA Conveyor Drum Pulley For Driving Or Tension
Steel Roller Belt FDA Conveyor Drum Pulley For Driving Or Tension
Steel Roller Belt FDA Conveyor Drum Pulley For Driving Or Tension
Specifications
Brand Name :
QINYI
Model Number :
Belt Conveyor Drive Pulley
Certification :
CE / ISO / FDA / SGS / TUV
Place of Origin :
china , cangzhou
MOQ :
5 ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
10~15 days
Packaging Details :
Steel-strcuture pallet or wooden case
Product name :
Belt Conveyor Bend Pulley
Application :
Manufacturing Plant, Energy & Mining
Sample :
available,Please contact our representatives for more details
Length :
Depends on the belt width
Material :
Stainless Steel
welding :
pipe and bearing housing with automatic welding
Frame material :
Stainless Steel,steel or as required,Carbon Steel,aluminum carbon steel stainless steel
surface :
smooth steel surface ,rubber lagging
Description

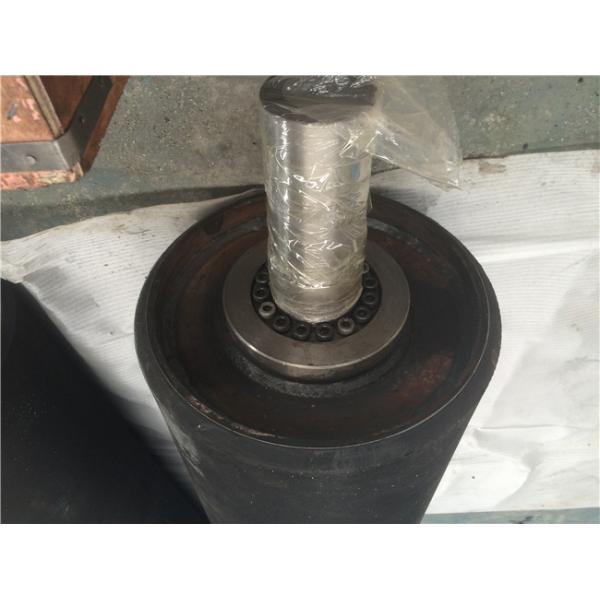

Belt Conveyor Steel Roller Drum Pulley For Driving Or Tension

Key Features of steel pipe bend pulley drum

(1). Steady running, reliable quality and reduce maintenance;

(2). Less movement longitudinally, rotating smoothly, extends the life span;
(3). Various bearing housing and sealing structure are available for the customers choice;
(4). Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;
(5). Manufacturing by steel pipe specially for of high precision roller, ensuring the strong
load, low shaking and less noise.

conveyor pulley Description

Type
Belt Width(mm)
Standard Diameter(mm)
Length
Drive Pulley
500
500
Length of the pulley depends on the belt width of the conveyor
650
500 630
800
500 630 800
1000
630 800 1000
1200
630 800 1000
1400
800 1000
Turnaround Pulley
500
250 315 400 500
650
250 315 400 500
800
250 315 400 500 630 800 1000
1000
250 315 400 500 630 800 1000
1200
250 315 400 500 630 800 1000
1400
250 315 400 500 630 800 1000


Drive/Head Pulley – A conveyor pulley used for the purpose of driving a conveyor belt. Typically mounted in external bearings anddriven by an external drive source.
Return/Tail Pulley – A conveyor pulley used for the purpose of redirecting a conveyor belt back to the drive pulley.
Tail pulleys can utilize internal bearings or can be mounted in external bearings and are typically located at the end of the conveyor bed.
Snub Pulley – A conveyor pulley used to increase belt wrap around a drive pulley, typically for the purpose of improving traction.
Take - Up Pulley– A conveyor pulley used to remove slack and provide tension to a conveyor belt. Take-Up pulleys are more common to conveyors of longer lengths.
Bend Pulley – A conveyor pulley used to redirect the belt and provide belt tension where bends occur in the conveyor system.

Type conveyor DTII, TD75
Bearing NO: 6204/6205//6306/6307/6308 etc
Material: carbon steel, Rubber , nylon etc.
Belt width: from 300mm to 2400mm


Steel Roller Belt FDA Conveyor Drum Pulley For Driving Or TensionSteel Roller Belt FDA Conveyor Drum Pulley For Driving Or Tension
