Light Weight Outdoor Stage Rental Led Display P4.8mm LED Panel 500X500mm
Light Weight Outdoor Stage Rental Led Display P4.8mm LED Panel 500X500mm
Light Weight Outdoor Stage Rental Led Display P4.8mm LED Panel 500X500mm
Light Weight Outdoor Stage Rental Led Display P4.8mm LED Panel 500X500mm
Specifications
Brand Name :
Conwin LED Display
Model Number :
D-YD4.8
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
MOQ :
1sqm
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000sqm/month
Delivery Time :
15days
Packaging Details :
Flight Case
Pixel :
4.81mm
Color :
Full color
LEDs :
SMD 3in1
Module Size :
250mmx250mm
Module Pixel :
52x52
Cabinet Material :
Aluminium
Description

Light Weight Outdoor Stage Rental Led Display P4.8mm LED Panel 500X500mm

Quick Details:

1, Pixel Pitch: 4.81mm.

2, RGB Full colors: 281trillions.

3, SMD LEDs, Wide viewing angle: 160°/ 160°.

4, Standard cabinet size: 500×500x80mm

5, IP65 Waterproof.

Light Weight Outdoor Stage Rental Led Display P4.8mm LED Panel 500X500mm

D-YD series rental LED display include outdoor rental led screen: P2.6mm, P2.976mm, P3.91mm, P4.81mm and P5.95mm ,P3.91mm and P4.81mm are the best-selling types.

Features:
- Thin and light, weight only 7.5kg for 500x500mm cabinet, 14kg for 500x1000mm cabinet, thickness only 8cm, can be lifted with only one hand.

- Fast assembling and easy installation with handle and fast lock design, quick within 8seconds.

- High refresh rate 3840Hz, no strips for camera shooting.

- Smart design one person can do installation and disassembly

Handle and fast lock design enable fast and convenient installation and disassembly, one person can handle it all.

Parameters:

Model D-YD2.9 D-YD3.9 D-YD4.8
Pixel Pitch 2.976mm 3.91mm 4.81mm
Pixel Configuration SMD1415 SMD1921 SMD1921
Pixel Density 112,896 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
Module Dimensions(W x H) (mm) 250 x 250 250 x 250 250 x 250
Panel Dimensions (mm) 500 x 500 x 80 500 x 500 x 80 500 x 500 x 80
Modules Per Cabinet (W x H) 2 x 2 2 x 2 2 x 2
Module Resolution 84 x 84 64 x 64 52 x 52
Cabinet Resolution 168 x 168 128 x 128 104 x 104
Panel Material Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum
Weight per Cabinet 7.5kg 7.5kg 7.5kg
Colours 281 trillion 281 trillion 281 trillion
Contrast Ratio 5,000 : 1 5,000 : 1 5,000 : 1
Average Power Consumption 250 W /Sqm 220 W /Sqm 200 W /Sqm
Max Power Consumption 650 W /Sqm 620 W /Sqm 600 W /Sqm
Brightness >5,000 nits >5,000 nits >5,000 nits
Refresh Rate >3,840Hz >3,840 Hz >3,840 Hz
Vertical Viewing Angle 160° 160° 160°
Horizontal Viewing Angle 160° 160° 160°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front/Rear Front/Rear Front/Rear
IP Rating (Front/Rear) IP 65 IP 65 IP 65
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%

Pictures:

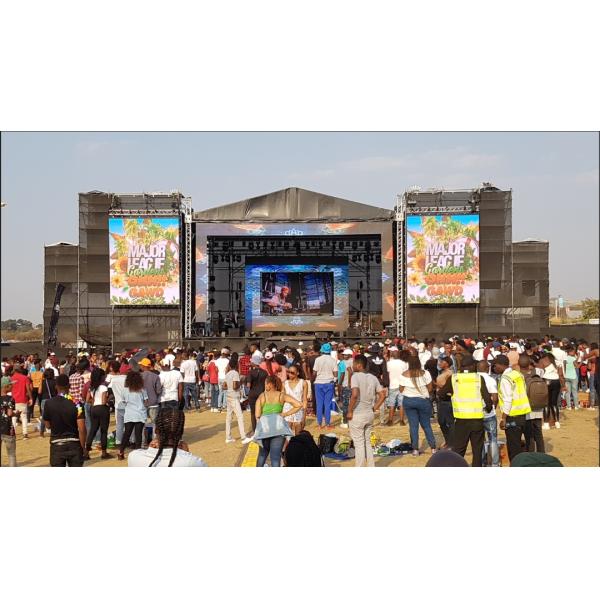

Light Weight Outdoor Stage Rental Led Display P4.8mm LED Panel 500X500mm
