P3.9 P4.8 LED Video Wall Panels Waterproof For Outdoor Advertising
P3.9 P4.8 LED Video Wall Panels Waterproof For Outdoor Advertising
Specifications
Brand Name :
Conwin LED Display
Model Number :
S-C3.9, S-C4.8
Certification :
FCC, CE, ROHS
Place of Origin :
China
MOQ :
1sqm
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000 sqm per month
Delivery Time :
15days
Packaging Details :
Wooden box
Pixel Pitch :
P3.91mm, P4.81mm
Size :
500X1000mm, 500X750mm,500X500mm
Weight :
33kg/sqm
Module Size :
250X250mm
Service Type :
Front/Rear
Refresh Rate :
3840hz
Description

P3.9 P4.8 Outdoor Advertising LED Display Waterproof Directly on Wall LED Panel

P3.9 Outdoor Fixed LED Display, P4.8 LED Video Wall Directly on Wall

Features:

- Aluminium profile cabinet structure

With light weight, corrosion resistance, high precision, good flatness, not easy to deform, good heat dissipation, etc., stronger and more durable than the sheet metal cabinet, aluminium profile structure after finishing, can improve the screen splicing accuracy, screen consistency is better, the standard cabinet is as light as 16kg, the thickness is only 85mm.

- The structure of the product is hard-wired, hidden wire design, the whole wireless, neat and beautiful appearance.

- Multiple cabinet sizes

Can be spliced with each other to meet the needs of splicing of different area sizes.

- Naked eye 3D display

Supports 90-degree curved splicing, which easily realises outdoor close-up naked eye 3D display effect.

- Waterproof design

IP66 protection level, using outdoor special independent waterproof module and excellent sealing waterproof cabinet to prevent water vapour from attacking the screen, fanless design to reduce the leakage of water failure points.

- Fire retardant

S series adopts die-casting aluminium module, profile aluminium cabinet, no deformation under high temperature conditions, no spontaneous combustion, safe and reliable.

- Support Front/Rear Service

Parameters:

Model S-C3.9 S-C4.8
Pixel Pitch 3.91mm 4.81mm
Pixel Configuration SMD1919 SMD1919
Pixel Density 65536 pixels/m2 43264 pixels/m2
Module Dimensions(W x H)(mm) 250 x 250 250 x 250
Panel Dimensions (mm) 500X500mm 500X750mm 500X1000mm 500X500mm 500X750mm 500X1000mm
Module Resolution 64 x 64 52 x 52
Panel Material Aluminum Aluminum
Weight 33kgs/sqm 33kgs/sqm
Colors 281 trillion 281 trillion
Contrast Ratio 5,000 : 1 5,000 : 1
Average Power Consumption 280 W /Sqm 280 W /Sqm
Max Power Consumption 750 W /Sqm 750 W /Sqm
Brightness >4,500 nits >4,500 nits
Refresh Rate >3,840Hz >3,840Hz
Vertical Viewing Angle 160° 160°
Horizontal Viewing Angle 160° 160°
Expected Lifetime 100,000 Hrs 100,000 Hrs
Servicing Front / Rear Front / Rear
IP Rating (Front/Rear) IP66 / IP66 IP66 / IP66

Pictures:

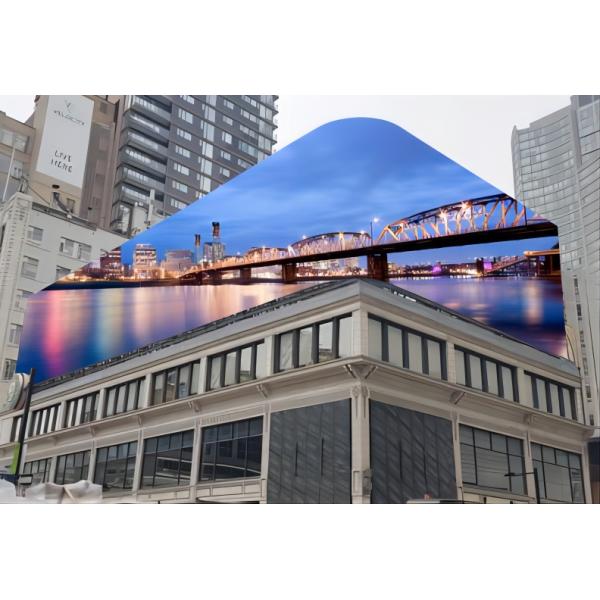

P3.9 P4.8 LED Video Wall Panels Waterproof For Outdoor Advertising

Our Services

1. 20 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request
