Specifications
Brand Name :
Conwin LED Display
Model Number :
MI-V1.2
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
MOQ :
1sqm
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000sqm/month
Delivery Time :
15 days
Packaging Details :
Wooden box
Pixel Pitch :
P1.25mm
Material :
Die-casting Aluminum
Size :
640X480mm
Depth :
70mm
Weight :
8kg
Refresh :
3840hz
Description

Indoor Fixed Small Pixel Pitch P1.25mm High Resolution LED Display

Application:

MI-V sereis(MI-V1.2) P1.25mm high resolution led display is good choice for high end indoor led video wall with competitive price, applied for high profile hotels, securities companies, schools, stage, public security, shopping centers and other fields.

Advantage and Features:

- PWM constant current output led high refresh rata driving IC

Improving display effect with brighter color, without moire effect when taking pictures

High Resolution HD LED Display Indoor Fixed Small Pixel Pitch P1.25mm

Low light high grey scale VS Low refresh rate low brightness

- Wireless connection between cabinets

No exposed wire, using aviation plugs inside, stable and firm to ensure no trouble on free power transmission

Quick lock design between cabinets, fast and easy to install tidily.

High Resolution HD LED Display Indoor Fixed Small Pixel Pitch P1.25mm

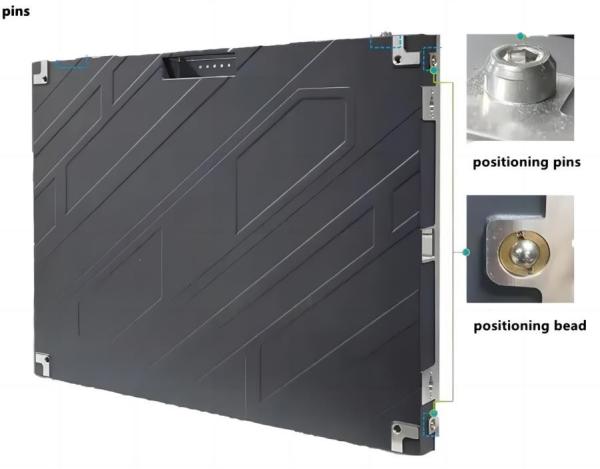

- Precise die-casting aluminum material,CNC precison processing,high flatness

LED module, power supply,card are all front service, save the rear side maintenace/install space

- Cabinet size 640X480mm,ratio 4:3, which can be easily spliced 16:9 ratio screen

Support diversified installation type, standing, wall mounted,pedestal...

High Resolution HD LED Display Indoor Fixed Small Pixel Pitch P1.25mmHigh Resolution HD LED Display Indoor Fixed Small Pixel Pitch P1.25mm

High Resolution HD LED Display Indoor Fixed Small Pixel Pitch P1.25mm

Parameters:
Pixel pitch mm 1.25
Brightness nits 500
Viewing angle - Horizontal deg. 160(+80/-80)
Viewing angle - Vertical deg. 160(+80/-80)
Cabinet weight kg 8
Cabinet width mm 640
Cabinet height mm 480
Cabinet depth mm 70
Cabinet material Die-casting Aluminum
Operating temperature range deg. C -20 to 60
Operating humidity range HR 10％ to 85％
Pixel type and configuration R/G/B SMD1010
Pixel matrix per cabinet dots 512X384
LED module size(WXH) mm 320X160
Module resolution(WXH) dots 256X128
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Frame rate Hertz 60
Display refresh rate Hertz 3840
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Power (max/avg) Watts per sq.m 550/200
Grey scale level bits 16
