P3.91 Outdoor Led Video Wall 500*1000mm Rental Led Display Screen Panel
Application:

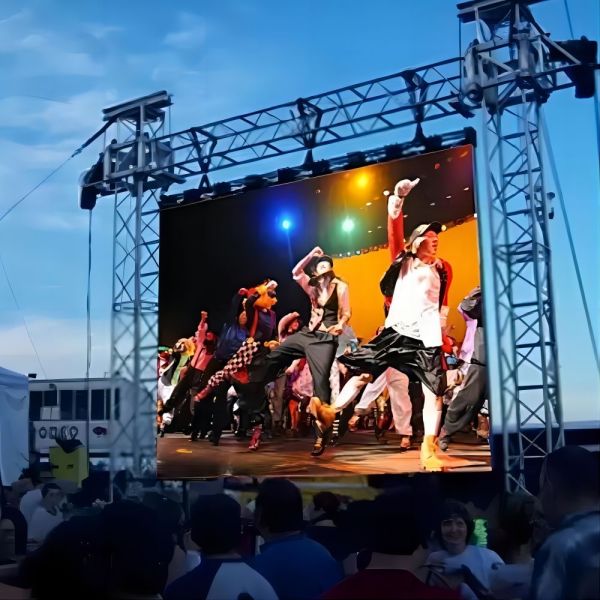

Outdoor full color rental LED display could be used in outdoor environment such as airport, highway, cultural or relax square, commercial walking street, residential sub-district, downtown, with various real-time signal sources and the speciality of waterproof, dust-proof, static-proof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program etc.
Product Features:
- Module size:250x250mm, compatible pitch:P2.6,P2.9,P3.9 and P4.8
- 500x500mm, 500x1000mm cabinet, stable die-casting alloy structure, not easy to deform.
- Cable-less and pluggable power supply, easy to change.
- Intelligent cabinet handle lock, single operation design, time-saving and labor-saving.
- Foldable all-around corner protectors, effectively protect the edge led lamps and modules.
- Adopt high end big chip pure black led lamps, ultra-high contrast, high gray scale and high refresh rate.
- Curved function cabinet option, no need curved lock, can realize arc/ special-shaped, suitable for different rental events.
- Corner Protector
- Support curve design with angle adjust lock
- Support front service
Parameters:
Model | D-LN2.6 | D-LN2.9 | D-LN3.9 | D-LN4.8 |
Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
Average Power Consumption | 280 W /Sqm | 260 W /Sqm | 250 W /Sqm | 220 W /Sqm |
Max Power Consumption | 680 W /Sqm | 650 W /Sqm | 620 W /Sqm | 600 W /Sqm |
Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
Vertical Viewing Angle | 160° | 160° | 160° | 160° |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
FAQ:
Q1. What's fast delivery time?
The production can be controlled as fast as you need from 7 days to 25 days.
Q2. Can I just wait for the items at my door and no need to do others?
Yes, items can be delivery to your specific address and you just wait for receiving the items at your door and nothing to do.
Q3. The display will come to me in parts?and i have to install each part together?
Yes, but it's quite easy. We will send you the instruction and also we can remote to help you to adjust the software, everything.
Q4. What's the function of video processor?
It can transfer the video source to make the screen performance more clear. Sometimes there has HD camera, so that the performance can show themselves on the screen as well.
Q5. How can I install the led display?
There are two options, one is hanging the display, the other is standing the display. Hanging bars and back stacking will be provided.
