Indoor P5 Stadium LED Screen Perimeter High Brightness Banner LED Display
Indoor P5 Stadium LED Screen Perimeter High Brightness Banner LED Display
Indoor P5 Stadium LED Screen Perimeter High Brightness Banner LED Display
Indoor P5 Stadium LED Screen Perimeter High Brightness Banner LED Display
Indoor P5 Stadium LED Screen Perimeter High Brightness Banner LED Display
Indoor P5 Stadium LED Screen Perimeter High Brightness Banner LED Display
Specifications
Brand Name :
Conwin LED Display
Model Number :
Qi-A5
Certification :
FCC, CE, ROHS
Place of Origin :
China
MOQ :
1sqm
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000sqm/month
Delivery Time :
15 days
Packaging Details :
Wooden box/Flight Case
Pixel Pitch :
P5mm
Material :
Steel/Aluminum
Module size :
320x160mm
Service Type :
Rear
Refresh Rate :
3840hz
LED Type :
High Brightness SMD3528
Description

Indoor P5 Stadium LED Screen Perimeter High Brightness Indoor LED Panel

Indoor Basketball Stadium Perimeter LED Display High Brightness 2000nits-3000nits

Features and Quick Details

- Pixel Pitch: 5mm
- SMD3528 LED, high brightness 2000-3000nits and high refresh rate
- Cabinet size: 960x960mm ,1280X960mm,1600X960mm or 1920X960mm
- Recommended Min Viewing Distance: .5m

- Cabinet Material: Steel or Aluminum

- Refresh Rate: 3840Hz

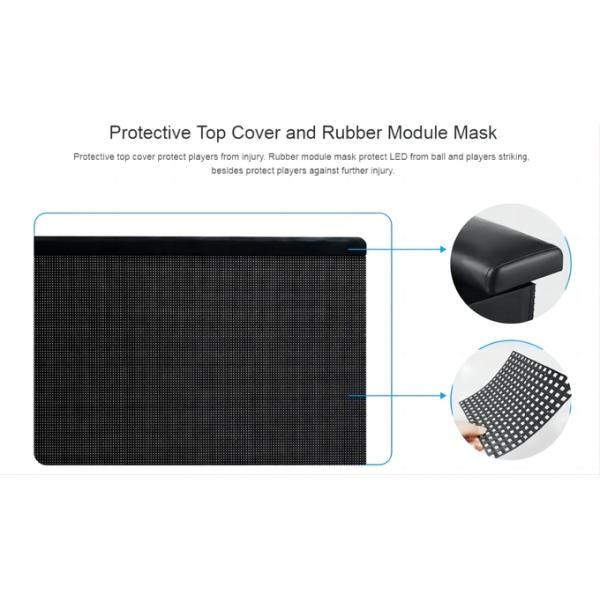

- Player protection: Soft mask and Soft cushion on top of cabinet

- Quick Installation: Yes, fast side lock for quick assembly and disassembly

- Wooden box or Flight case designed for efficient storage and shipping (for transportable systems).
- Back-up data system for non-stop displaying.
- Cabinet angle adjustable with best viewing performance

- High refresh rate, no strip for camera shooting and live show broadcasting.

- Wide viewing angle 160°/160°

- Rotating base and wheers could be added

- LED Module surface with soft mask for protecting players from injuiry

Indoor P5 Stadium LED Screen Perimeter High Brightness Banner LED Display

Indoor P5 Stadium LED Screen Perimeter High Brightness Banner LED Display

- Different size could be choosed.

960X960mm, 1280X960mm, 1600X960mm, 1920X960mm

Indoor P5 Stadium LED Screen Perimeter High Brightness Banner LED DisplayIndoor P5 Stadium LED Screen Perimeter High Brightness Banner LED Display

Spec
Mode Qi-A5
Pixel Pitch 5mm
LED type SMD3528
Unit size W960×H960mm
Unit resolution 192×192 dots
Resolution 40,000dots/㎡
Unit direction Vertical Horizontal
Brightness ≥2000nit
Weight 40kg
Max consumption 500W/㎡
Adv consumption 230W/㎡
Viewing angle H120°/V120°
Protection level IP43
Thickness 100mm
Service Rear
Refresh rate 3840Hz
Life time ≥100,000 hours
Input voltage AC110-220V
Pictures:

Indoor P5 Stadium LED Screen Perimeter High Brightness Banner LED Display

Our Services

1. 20 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request

6. 24/7 hrs online service
