Specifications
Brand Name :
Conwin LED Display
Model Number :
Di-XG3.9, Di-XG4.8
Certification :
FCC, CE, ROHS
Place of Origin :
China
MOQ :
1sqm
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000 sqm per month
Delivery Time :
15 working days
Packaging Details :
Plywood box
Type :
Indoor Rental LED Screen
Pixel Pitch :
P3.91mm, P4.81mm
Cabinet Size :
500x500
Service :
Front Service
Weight :
7.5kg
Module Size :
250x250mm
Description

Indoor P3.91mm Stage Rental LED Display Front Magnetic Service 3840Hz Refresh Rate

Quick detail Of Indoor Rental LED Screen

1, Pixel Pitch: 2.604mm. 2.976mm, 3.91mm,4.81mm
2, Quality and High Contrast SMD LEDs, Wide viewing angle: 160°/ 160°.
3, Greyscale: 16bits, 22bits with NOVA Star A8S

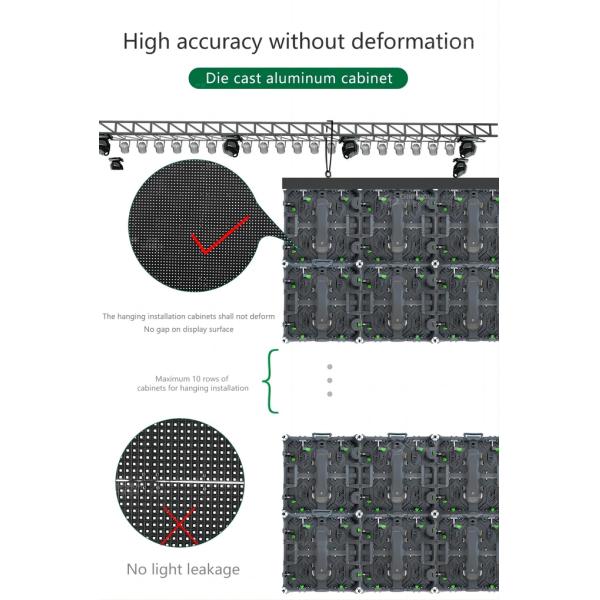

4, Cabinet size: 500x500mm Die Cast Aluminum
5, Recommended Viewing Distance: 2-4m.

6, Cabinet Material: Die Cast Aluminum Cabinet, 7.5kg Weight

7, Refresh Rate: 3840-7680Hz

8, Ingress Rate: IP43 Indoor, IP68 Outdoor

9,Quality Certificate:CE, RoHS,FCC, ETL

10,Brightness:>1000cd/sqm

11, Curve Installation: Yes, Concave and Convex Available

12, Corner Protector: Yes, Semi-auto Corner Protector

P3.9mm P4.8mm Stage Indoor Rental LED Panel IP43 3840Hz Refresh Rate

P3.9mm P4.8mm Stage Indoor Rental LED Panel IP43 3840Hz Refresh Rate

P3.9mm P4.8mm Stage Indoor Rental LED Panel IP43 3840Hz Refresh Rate

P3.9mm P4.8mm Stage Indoor Rental LED Panel IP43 3840Hz Refresh Rate

Parameters

Model Di-XG2.6 Di-XG2.9 Di-XG3.9 Di-XG4.8
Pixel Pitch 2.604mm 2.976mm 3.91mm 4.81mm
Pixel Configuration SMD1415 SMD1415 SMD1921 SMD1921
Pixel Density 147,456 pixels/m2 112,896 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
Module Dimensions (W x H) (mm) 250 x 250 250 x 250 250 x 250 250 x 250
Panel Dimensions (mm) 500 x 500 x 80 500 x 500 x 80 500 x 500 x 80 500 x 500 x 80
Modules Per Cabinet (W x H) 2 x 2 2 x 2 2 x 2 2 x 2
Module Resolution 96 x 96 84 x 84 64 x 64 52 x 52
Cabinet Resolution 192 x 192 168 x 168 128 x 128 104 x 104
Panel Material Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum
Weight per Cabinet 7.5kg 7.5kg 7.5kg 7.5kg
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 5,000 : 1 5,000 : 1 5,000 : 1 5,000 : 1
Average Power Consumption 220 W /Sqm 220 W /Sqm 220 W /Sqm 220 W /Sqm
Max Power Consumption 600 W /Sqm 600 W /Sqm 600 W /Sqm 600 W /Sqm
Brightness >1,000 nits >1,000 nits >1,000 nits >1,000 nits
Refresh Rate >3,840Hz >3,840Hz >3,840 Hz >3,840 Hz
Vertical Viewing Angle 160° 160° 160° 160°
Horizontal Viewing Angle 160° 160° 160° 160°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating (Front/Rear) IP 65 IP 65 IP 65 IP 65
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%

Pictures:

P3.9mm P4.8mm Stage Indoor Rental LED Panel IP43 3840Hz Refresh Rate

P3.9mm P4.8mm Stage Indoor Rental LED Panel IP43 3840Hz Refresh Rate

P3.9mm P4.8mm Stage Indoor Rental LED Panel IP43 3840Hz Refresh Rate

Our Services

1. 20 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request

Feature Of Indoor Rental LED Video Wall

Many people do not know that the purpose and function of stage rental displays are different. Compared with traditional LED displays, they need to be configured. The next LCF will use the difference between the LED stage rental screen and the traditional display example.

1. Different models selected

The stage rental screen has high requirements for stage display, so the requirements for screen playback effect should be clearer. Therefore, the general indoor environment adopts the high-definition stage display of P3P4 model, and the small pitch P2.5P2 is used in poor conditions P7P6 and other models are used outdoors. For traditional indoor and outdoor displays, due to long viewing distance or low display requirements, P6P5 is usually used indoors, while P10 is most often used outdoors, followed by P16. The interior is a surface sticker. Plug in lighting is usually used outdoors, but sometimes the current surface mounted products are used in the stage rental screen market, and a variety of box type products are introduced, including all major models in the market. P3P4P4.8P6, etc

2. How to install

Many people in the industry know that stage rental screens are easy to remove and install. For example, at the end of a concert, you can break up the concert and recreate it at another stage. The conventional indoor LED display is usually a fixed installation method, which is not easy to move after the fixed installation position. Therefore, it would be impossible to rebuild in other places after disassembly.

3. Box difference

Generally, traditional outdoor LED displays are waterproof and heavy in structure. The interior is also a simple box, which is used for LED stage rental display. It is usually made of die-casting aluminum box, with light structure, high stability and more convenient use. The most important thing is to install at any time. Removable, suitable for concerts, stage and other major performances. The above three points are the biggest differences between the existing display and the screen leased at the current stage. There are also other differences in the quotation, size and configuration of the environment.
