IP68 Waterproof Outdoor LED Signs Aluminum With Good Heat Radiation
IP68 Waterproof Outdoor LED Signs Aluminum With Good Heat Radiation
Specifications
Brand Name :
Conwin LED Display
Model Number :
S-A Series
Certification :
FCC, CE, ROHS
Place of Origin :
China
MOQ :
1sqm
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000sqm/month
Delivery Time :
15 days
Packaging Details :
Wooden box
Pixel Pitch :
P5-P10mm
Module size :
320x320mm
Material :
Aluminum
Service Type :
Front/Rear
Refresh rate :
3840hz
Description

IP68 Waterproof Outdoor LED Signs Aluminum LED Module with Good Heat Radiation

Waterproof Road LED Sign, LED Display

The box is light and stable. Aluminum cabinet is lighter, stronger and more stable, box weighs only 29 KG for Aluminum cabinet.It is generally applicable to commercial centers, airport terminals, large-scale summits, city landmarks, exhibition centers and other outdoor places. Also welcome using for road, small install places LED Signs.

Quick Details:

- Pixel Pitch: 5.33mm,6.67mm, 8mm, 10mm
- SMD LED, high brightness and durable for outdoor use
- Greyscale: 16bits
- Cabinet size: 960x960mm Steel Or Aluminum Cabinet, size also could be customized

- Cabinet Material: Cold Rolled Steel Cabinet 36kg per Panel, Aluminum 29kg

- Refresh Rate: 3840Hz

- Ingress Rate: IP68 Outdoor Standard Connectors

- Brightness:>5500-6000cd/sqm

- Curve Installation: Yes, Concave and Convex Available

- Support Common Cathode Aluminum Display: Energy-Saving by 75%

IP68 Waterproof Outdoor LED Signs Aluminum With Good Heat Radiation

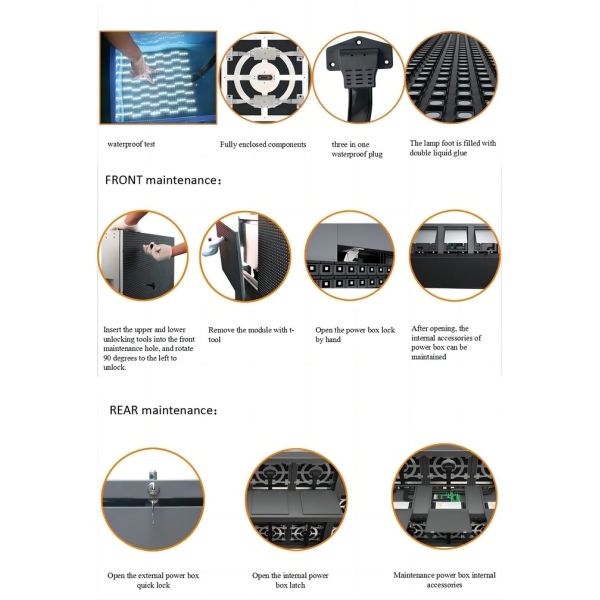

- LED Module Advantages

a. Aluminum bottom shell, good heat radiation
b. Waterproof front and rear IP68.
c. Support front and rear service.

IP68 Waterproof Outdoor LED Signs Aluminum With Good Heat Radiation

- LED Cabinet advantage
Cabinet Could be designed all Aluminum with 28.5kg for 960X960mm cabinet. also could be design steel cabinet 36kg.

Also could be designed for different size according to LED Module size(320X320mm). Like 640X960mm, 640X640mm,1280X640mm....
Brilliant cabinet design making installation easy and with enough installation space.

Fast Assemble with plugs, Marked “Power in/out” “Signal in/out” on cabinet. Keep safe and save install time.

IP68 front and rear, Moisture-proof, water-proof, anti-corrosion, dust-proof.

IP68 Waterproof Outdoor LED Signs Aluminum With Good Heat Radiation

IP68 Waterproof Outdoor LED Signs Aluminum With Good Heat Radiation

Parameters:
Model S-A5 S-A6 S-A8 S-A10
Pixel Pitch 5.33mm 6.67mm 8mm 10mm
Pixel Configuration SMD1921 SMD2727 SMD2727 SMD2727
Pixel Density 35156 pixels/m2 22500 pixels/m2 15625 pixels/m2 10000 pixels/m2
Module Dimensions (W x H)(mm) 320 x 320 320 x 320 320 x 320 320 x 320
Panel Dimensions (mm) 960 x960 x 100 960 x960 x 100 960 x960 x 100 960 x960 x 100
Modules Per Cabinet (W x H) 3 x 3 3 x 3 3 x 3 3 x 3
Module Resolution 60 x 60 48 x 48 40 x 40 32 x 32
Cabinet Resolution 180 x 180 144 x 144 120 x 120 96 x 96
Panel Material Aluminum Aluminum Aluminum Aluminum
Weight per Cabinet 29kgs 29kgs 29kgs 29kgs
Colors 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 5,000 : 1 5,000 : 1 5,000 : 1 5,000 : 1
Average Power Consumption 330 W /Sqm 330 W /Sqm 330 W /Sqm 330 W /Sqm
Max Power Consumption 950 W /Sqm 950 W /Sqm 950 W /Sqm 950 W /Sqm
Brightness >5,500 nits >5,500 nits >5,500 nits >5,500 nits
Refresh Rate >3,840Hz >3,840Hz >3,840Hz >3,840Hz
Vertical Viewing Angle 160° 160° 160° 160°
Horizontal Viewing Angle 160° 160° 160° 160°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front / Rear Front / Rear Front / Rear Front / Rear
IP Rating (Front/Rear) IP68 / IP68 IP68 / IP68 IP68 / IP68 IP68 / IP68
Pictures:

IP68 Waterproof Outdoor LED Signs Aluminum With Good Heat Radiation

Our Services

1. 20 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request

6. 24/7 hrs online service
