High Transparency LED Pixel Grid Screen Transparent Mesh Display P50 Grid LED Screen
High Transparency LED Pixel Grid Screen Transparent Mesh Display P50 Grid LED Screen
High Transparency LED Pixel Grid Screen Transparent Mesh Display P50 Grid LED Screen
High Transparency LED Pixel Grid Screen Transparent Mesh Display P50 Grid LED Screen
High Transparency LED Pixel Grid Screen Transparent Mesh Display P50 Grid LED Screen
High Transparency LED Pixel Grid Screen Transparent Mesh Display P50 Grid LED Screen
High Transparency LED Pixel Grid Screen Transparent Mesh Display P50 Grid LED Screen
High Transparency LED Pixel Grid Screen Transparent Mesh Display P50 Grid LED Screen
Specifications
Brand Name :
CONWIN
Model Number :
M80
Certification :
CE,ROHS
Place of Origin :
China
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000sqm/month
Delivery Time :
5-8 working days
Packaging Details :
wooden box or carton
Input Voltage :
AC 110/220V
Transparency Rate :
63%/m²
View Angle :
170º
Protection Class :
IP67
Refresh Rate :
≥1920Hz
Ic Driver :
ICN2038S/ MBI5124 etc.
Led Controller :
Novastar VX4S controller
Life Span :
≥1,000,000 hours
Description
Products Description
Specification
Model
P31.25
P40
P50
P55
P62
P70
P100
P120
P150
Pixel density
1024 points/sqm
540 points/sqm
400 points/sqm
333 points /sqm
250 points /sqm
200 points /sqm
100 points /sqm
66 points /sqm
44 points /sqm
Point spacing (mm)
31*31
35*50
50*80
50*60
50*80
50*100
100*100
100*150
150*150
Model size(mm)
400*4480
400*4480
400*6400
400*7680
400*10240
400*12800
800*19200
800*19200
1200*19200
Model resolution
8*128
8*128
8*128
8*128
8*128
8*128
8*128
8*128
8*128
Lamp bead arrangement
1/2/3/4 /6 National Star RGB 3-in-1 patch 3535 lamp beads
Minimum viewing distance
＞7m
＞9m
＞10m
＞15m
＞20m
＞25m
＞30m
＞40m
＞50m
Relative translucency
60%
70%
75%
80%
85%
90%
92%
95%
96%
Screen weight
9.2kg/sqm
6kg/sqm
4.2kg/sqm
3.5kg/sqm
3kg/sqm
2.6kg/sqm
2.2kg/sqm
1.8kg/sqm
1.8kg/sqm
Maximum power
480W
320W
240W
200W
180W
150W
120W
90W
66W
Average Power consumption
160W
108W
80W
66W
60W
50W
40W
30W
22W
Brightness
6100cd
3750cd
2000nits
1800nits
1200nits
1000nits
500nits
350nits
250nits
The Best View
120°(H)/120°(V)/140°(H)/140°(V)
Refresh Rate
＞1920Hz
IP code
IP67
Working voltage
DC 5V/12V
Note
LED Mesh Screen Features:
Close viewing effect is poor, display pixels have large point spacing,
Suitable for Viewing from a distance of 10 meters, use in low brightness outdoor environment,
Spcing Introduction:
1.P31.25 means 31*31mm center distance bettween two pixels,1024pcs per square meter
2.P40 means 35*50mm center distance bettween two pixels, 540 pcs per square meter
3.P50 means 50*80mm center distance between two pixels,400pcs per square meter
3.P55 means 50*60mm center distance between two pixels,333pcs per square meter
5.P62 means 50*100mm centerdistance between two pixels, 250 pcs per square meter
6.P100 means 100mm center distance between two pixels, 100pcs per square mete

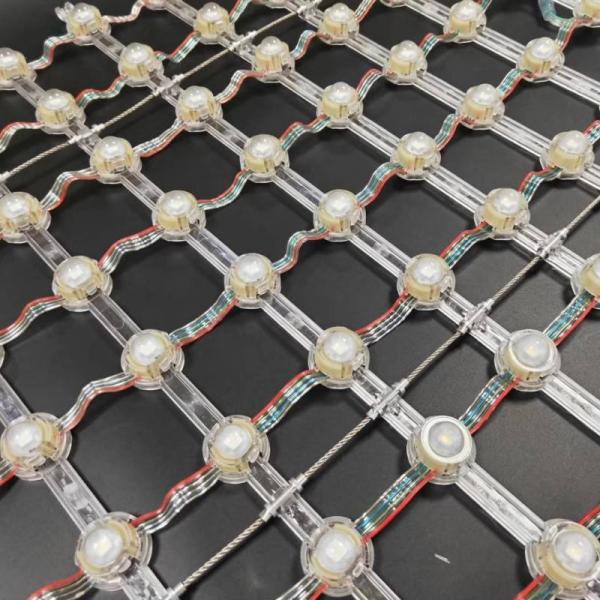

Details Images
Advantages

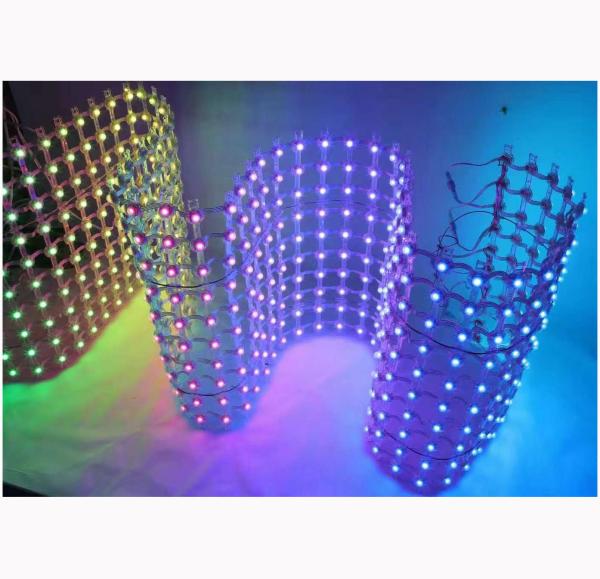

Compared with the traditional LED screen, the advantages of the LED Mesh Screen: 1. High transparent effect, does not take up space, ultra-thin, ultra-light * The perspective rate can reach 55%~95%, ensuring the original lighting and viewing Angle needs of the glass facade and curtain wall, and the wind resistance effect is good * Thin body (only 15mm), light weight (only 2~8 kg/m2) 2. Folding, arbitrary bending, minimal installation, maintenance, no steel structure * Flexible and lightweight, changeable shape, easy to install and maintain. The product can be freely combined to adapt to a variety of shapes to meet the needs of a variety of creative displays, very artistic and creative, the card strip and pixel light points can be taken out separately, easy to maintain the screen quickly. * The screen is ultra-light, directly using steel wire suspension, without complex steel structure. * The front and back of the screen are IP67 waterproof technology, and the front and tail belts are quickly matched 3. Cost saving, the price is only one-fifth of the traditional screen * By optimizing the structure, abandon the bulky box of the traditional screen, and make targeted changes to the process technology, lamp bead packaging, and control system. 4. Energy saving and environmental protection * Air duct self-cooling, no need to cool by air conditioning
Applications

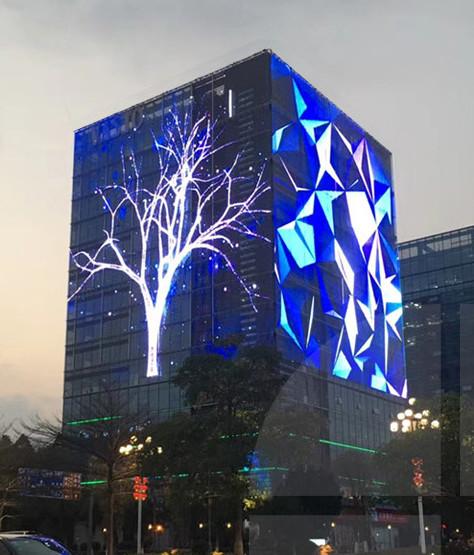

Landscape lighting / Facade lighting / Bridge lighting / Holiday lighting / Stage lighting decoration
Installation Instructions
