Specifications
Brand Name :
Conwin
Model Number :
E5
Certification :
CE, RoHS, CCC, ETL
MOQ :
1pc
Price :
USD420/sqm
Payment Terms :
T/T
Supply Ability :
5000sqm/month
Delivery Time :
3 weeks
Packaging Details :
Polywood case
pixels :
P5
Brightness :
6000 nits
Lifespan :
100000 hours
Maintenance way :
Front service
Size :
320 x 320
Refresh rate :
3840Hz
Scan mode :
1/8 scaning
Description
Application Scenarios
Shopping Mall
Buildings
Stadium
Road Sides
Expressway
Park
Specification
Module Number
P5
P6.67
P8
P10
Pixel Pitch
5mm
6.67 mm
8 mm
10 mm
Physical Density
40000 pixels/m2
224778 pixels/m2
15625 pixels/m2
10000 pixels/m2
Led Arrangement
3 in 1 SMD
3 in 1 SMD
3 in 1 SMD
3 in 1 SMD
Module Resolution
64*64pixels
48*48 pixels
40*40 pixels
32*32 pixels
Module Dimensions
320*320 mm
320*320 mm
320*320mm
320*320mm
Cabinet Resolution
192*192 pixels
144*144 pixels
120*120 pixel
96*96 pixel
Cabinet Dimensions
960*960 mm
960*960 mm
960*960 mm
960*960 mm
Cabinet Weight
42 kg
42 kg
42 kg
42 kg
Brightness
≥6000 nits
≥6000 nits
≥6000 nits
≥6000 nits
Max Power Consumption
850w/panel
850w/panel
850w/panel
850w/panel
Ave Power Consumption
350w/panel
350w/panel
350w/panel
350w/panel
Viewing Angle
160°(W) 160°(H)
160°(W) 160°(H)
160°(W) 160°(H)
160°(W) 160°(H)
Operating Power source
110-240V AC 50-60Hz
110-240V AC 50-60Hz
110-240V AC 50-60Hz
110-240V AC 50-60Hz
Operating Temperature
-20℃～+50℃
-20℃～+50℃
-20℃～+50℃
-20℃～+50℃
Refresh Rate
3840Hz
3840Hz
3840Hz
3840Hz
IP Rating
IP65
IP65
IP65
IP65
Signal Input Source
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
Certificate
ETL, FCC, CCC, RoHS,CE
ETL, FCC, CCC, RoHS,CE
ETL, FCC, CCC, RoHS,CE
ETL, FCC, CCC, RoHS,CE

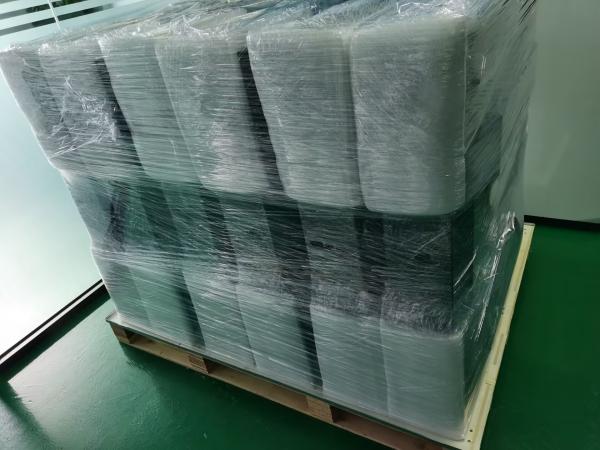

Packing & Delivery
According to the different packing patterns of different, we offer carton box, wooden case, flight case packing Shipping Method:

By Express (DHL/FEDEX/UPS etc) door to door
By ocean (cheap method) to sea port
By air to airport Pls inform airport name and sea port name

if you want, we can also check the shipping cost for you!
