Specifications
Brand Name :
DINGCHU
Model Number :
DCGZDM
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
7 work days
Certification :
CE、ISO
Name :
Dishwasher Machine
Type :
Hood Type
Material :
Stainless Steel
Volt :
380V
Washing Capacility :
60 Baskets Per Hour
Warranty :
One Year
Description

Stainless Steel Commercial Dishwasher Drawback Dishwasher High Temperature Disinfection Dishwasher

Efficient cleaning system: The ABT gold armor counter-rotating water curtain hedging jet technology system used in this machine has strong hedging spray to every corner to ensure the cleaning effect.

Economical and energy-saving: Adopt high-intelligent and precise control technology to ensure that the washing effect and indicators are consistent; the energy consumption is reduced by 20~30% compared with the traditional one.

Simple to use: This machine is user-friendly design, built-in washing and recording system, easy to operate, maintain and manage, saving labor and taking up less space.The unique sandwich door design combines the functions of heat preservation and heat insulation, and effectively reduces noise.

Rugged and durable: All parts and components are made of high quality and durable products at home and abroad. The high-efficiency water pump is made in Italy and is highly efficient, ensuring washing power. The whole machine adopts stainless steel (SS304), which is manufactured according to the foreign production experience and technology for more than 50 years.

Installation connection request
When installing, the product should be placed 3 degrees backwards.
Power installation requires 380V/50Hz/three-phase five-wire (bottom inlet), and an external air switch is required for external installation. The power supply is about 1.5 meters away from the equipment.
The equipment can be directly connected to the general water supply system, the minimum water pressure must be 0.2Mpa, and the 3/4" inch manual valve should be installed around 1.5 meters from the equipment.
Connect the 42mm drain at the bottom of the unit to the appropriate drain. The drain should be about 1.5 meters from the equipment.
4 points (1⁄2") joint of the inlet pipe, drain pipe diameter ≥ 42mm.

1. The desktop dishwasher is compact, small in space, small in size and flexible in placement.
2. The cabinet dishwasher has a standardized form factor and a large capacity for use with the entire kitchen.
3, the integrated size of the sink is the same as the sink, the volume is small, the installation does not need to change the water to change the electricity, suitable for the Chinese kitchen.
4, the embedded dishwasher capacity is relatively large. After the embedded installation, it is integrated with the kitchen cabinet.

Model & Configuration:

Name: Dishwasher Machine Type: Hood Type
Material: Stainless Steel Volt: 380V
Washing Capacility: 60 Baskets Per Hour Warranty: One Year
High Light:

high temperature commercial dishwasher

,

commercial bar dishwasher

AXE-601D AXE-602D
Power requirement N~380V AC/50Hz/3PH N~380V AC/50Hz/3PH
Inlet water temperature (degrees Celsius) 10-60 10-60
Dimensions (mm) 710*790*1430 710*790*1430
Maximum washing capacity (basket / hour) 60 60
Total power (kW) 16.66 15.71
Total current (A) 33 31
Air switch rated power supply (A) 40 40
Washing times record (times) 9999 9999
Table pre-match (bit) 300 300

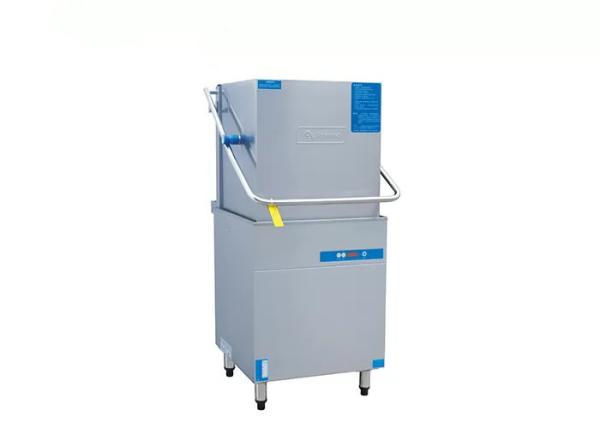

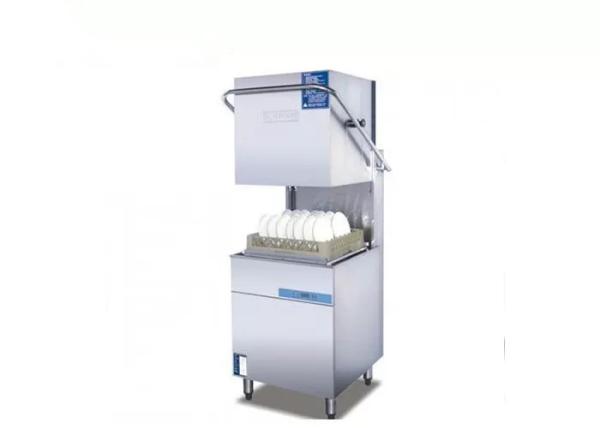

High Speed Hood Type 1430mm Commercial Dishwasher MachineHigh Speed Hood Type 1430mm Commercial Dishwasher Machine

Send your message to this supplier
Send Now

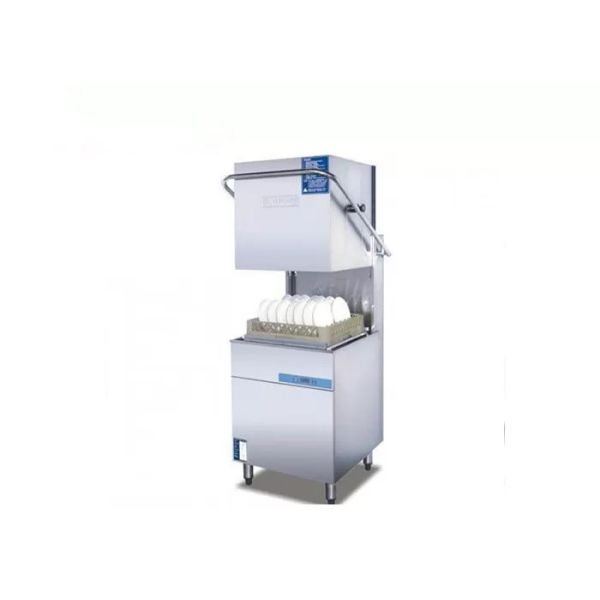

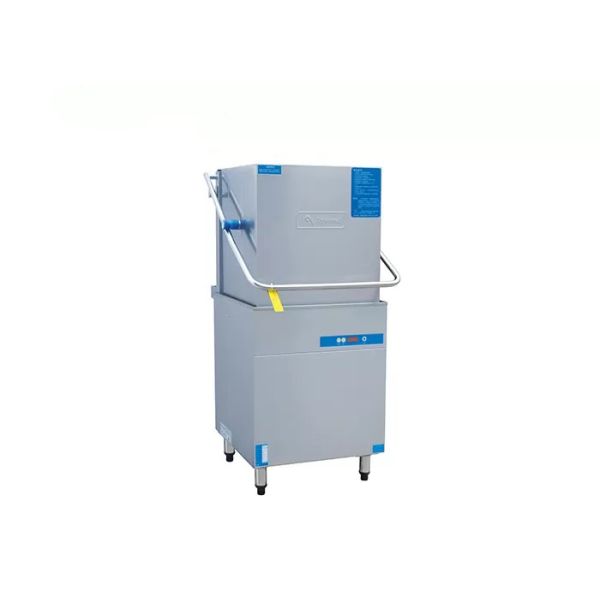

High Speed Hood Type 1430mm Commercial Dishwasher Machine
