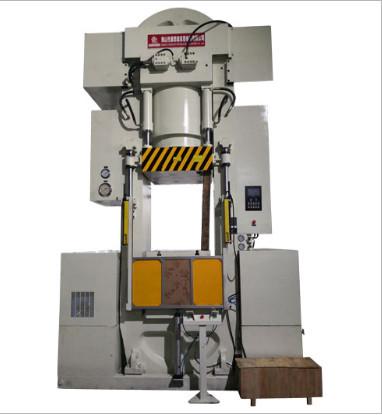

Advanced Automation Control System Large Tonnage Hot and Cold Forging Hydraulic Press
Advanced Automation Control System Large Tonnage Hot and Cold Forging Hydraulic Press
Advanced Automation Control System Large Tonnage Hot and Cold Forging Hydraulic Press
Advanced Automation Control System Large Tonnage Hot and Cold Forging Hydraulic Press
Advanced Automation Control System Large Tonnage Hot and Cold Forging Hydraulic Press
Advanced Automation Control System Large Tonnage Hot and Cold Forging Hydraulic Press
Specifications
Brand Name :
Star Power
Model Number :
YRK-12000SD
Certification :
CU,ISO
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Set/Sets per Month
Delivery Time :
1 month
Packaging Details :
metal frame with film
System :
PLC
Oil pump type :
Double pump
Main oil cylinder nominal force :
120000 KN
Maximum working pressure of the main oil cylinder :
80 Mpa
Maximum travel of the activity crossbeam :
500 MM
Description
YRK-SD series hot and cold forging steel wire winding hydraulic press (large tonnage)
Purpose: This equipment is suitable for cold and hot forging, precision forging, and extrusion forming processes of metal and non-ferrous metal materials. For example, forging and forming of large finned heat sinks, wireless base station heat dissipation plates, wheel hubs, and complex disc-shaped structural components.
characteristic:
1. It has the characteristics of high compression force, small workbench, lightweight machine, and high cost-effectiveness.
2. The main oil cylinder of the rack adopts prestressed steel wire winding technology, which has good fatigue resistance, high service life and safety.
3. Adopting a single master cylinder design and equipped with guide rails on the body, it has strong resistance to eccentric loads.
4. Equipped with a return cylinder, edge pressing and ejection mechanism to meet various process requirements.
5. Mature and reliable ultra-high pressure sealing technology ensures stable operation of equipment.
6. Adopting branded servo motor pump controlled hydraulic system, precise, fast, and energy-saving.

Partial configuration table of hydraulic power machine

project

YRK-6500SD

YRK-8000SD

YRK-10000SD

YRK-12000SD
Main oil cylinder nominal force20000 KN25000 KN30000 KN35000 KN
Maximum working pressure of the main oil cylinder80 Mpa80 Mpa80 Mpa80 Mpa
Maximum travel of the activity crossbeam 450 MM450 MM500 MM500 MM
Effective area of worktable (lr*fb) mm²1400*14001400*14001500*15001600*1600



Specifications:

Description
Large tonnage hot and cold forging steel wire winding hydraulic press
Purpose: This equipment is suitable for cold and hot forging, precision forging, and extrusion forming processes of metal and non-ferrous metal materials. For example, forging and forming of large finned heat sinks, wireless base station heat dissipation plates, wheel hubs, and complex disc-shaped structural components.
Advantage: safe operation.
Operator: 1 person.
Servo motor power(KW)181
Rated Voltage(V)380
Effective area of workbench (left and right * front and rear mm)1600*1600
Return cylinder stroke (mm)

Active beam Lifting speed (mm/s)
work in:11/17

Active beam Lifting speed (mm/s)Fast down: 200
Active beam Lifting speed (mm/s)Fast return :200
Closed height (mm)Max: 1300
Closed height (mm)Min: 800
Cooling motor (KN)4




Advanced Automation Control System Large Tonnage Hot and Cold Forging Hydraulic Press


Advanced Automation Control System Large Tonnage Hot and Cold Forging Hydraulic Press
Advanced Automation Control System Large Tonnage Hot and Cold Forging Hydraulic Press
