Industrial Brazing Furnace Equipment For Large-Scale Production Of Metal Parts
Industrial Brazing Furnace Equipment For Large-Scale Production Of Metal Parts
Industrial Brazing Furnace Equipment For Large-Scale Production Of Metal Parts
Industrial Brazing Furnace Equipment For Large-Scale Production Of Metal Parts
Industrial Brazing Furnace Equipment For Large-Scale Production Of Metal Parts
Industrial Brazing Furnace Equipment For Large-Scale Production Of Metal Parts
Specifications
Brand Name :
Star Power
Model Number :
RC16-25
Certification :
CU,ISO
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Set/Sets per Month
Delivery Time :
1-2 month
Packaging Details :
metal frame with film
Rated Voltage :
380V*3
Heating Zone No :
3
Rated Power :
70KW
Heating Zone(L*W*H) :
3500*250*80
Rated Temo :
1100 ℃
Temp.Rising Time :
≤4h
Empty Consumption :
17KW
Ammonia Decomposition Power :
11KW
Decomposition Capacity :
4.8m³/h
Output :
100kg/h
Description
In fact, there are many types of brazing furnaces, such as copper brazing furnace, aluminum brazing furnace, mesh belt brazing furnace, vacuum brazing furnace, NB continuous brazing furnace, continuous drying furnace, power and pressure regulation electric control system, HB continuous brazing furnace, JNB periodic brazing furnace, XNB periodic box brazing furnace, etc.
Mainly used for vacuum brazing of aluminum products such as aluminum alloy heat exchangers, brazing of stainless steel, titanium alloys, hard alloys, high-temperature alloys, non-ferrous metals, vacuum tempering of high-speed steel, tool and mold steel, bearing steel, stainless steel and other materials, as well as aging and annealing treatment of non-ferrous metals, and vacuum brazing of stainless steel heat exchangers, oil coolers, and stainless steel insulation cups.


Application:

Industrial Brazing Furnace Equipment For Large-Scale Production Of Metal Parts

Industrial Brazing Furnace Equipment For Large-Scale Production Of Metal Parts


Characteristic:
●Adoptfor heat-resistance stainless steel belt or mesh belt transmit the heat treatment workpieces to pass through heating zone and colingzoneAndinjectinsert gas or gas ammonia decomposition as a protective atmosphere to prevent and avoid the workpiece oxidation in the processafheatingand cooling, to ensure the brazing surface brightness, no oxidation, no scratches and welding line satiation

●Fumacehearth(i.e.hearting zone or muffle) adopt for imported Sweden heat-resisting temperature nickel metal 310S) to ensure thattheworkprietemperature come down to technical requirement when outlet.

●Withreasonable structure ofheating, uniform furnace temperature, workpiece on the conveyo belt running smoothly, lit deformation. Fumaehearth sze Canbe acroding to customer's dif size of the product and production design and manufacturing, with a strong specificity and generality.

●Channelfurnace overall appearance is "bridge" structure, front back inlet and outlet chamber using high quality materials into intermediate sandwichpipe body;The front and back working face with horizontal line to be a certain angle, the angle designis6 ' . lts advantages to saving protectiveatmosphere consumption, reduce the production cost.

●Adopts advanced frequency control of motor speed conveyor belt control system, realize the stepless variable speed drive of components, preciselycontrolthe workpiece in the running time of the heating zoen, ensure the aluminum brazing process curve accurate implementation.

● Equipped with modem energy saving type ammonia decomposition funace.

Thchnical Parameters:

Specifications:

Description

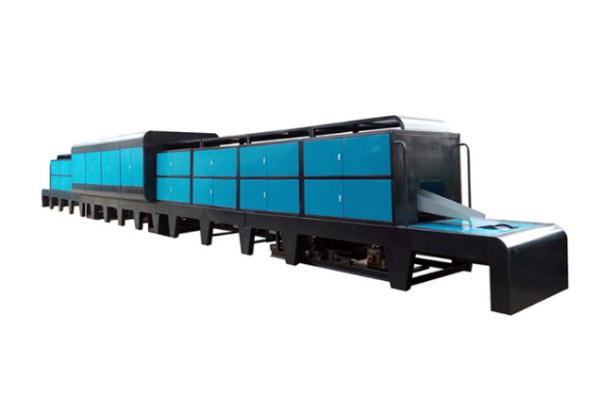

Continuous gas shielded aluminum brazing furnace equipment
Automatic constant temperature control
Advantage: safe operation.
Operator: 1 person.
Rated Power(KW) 70
Rated Voltage(V) 380x3
Working Temperature(℃) 1100
Effective Cooling Length (MM) 3500
Heating up time(h) ≤4
Empty furnace loss power (KW) 17
Output (kg/h) 100
Decomposition power (KW) 11
Decomposition capacity (m ³/h) 4.8
Heating size (L*W*H) mm 3500x250x80
