Specifications
Brand Name :
KUB
Model Number :
4DES-5Y
Certification :
CE
Place of Origin :
SHANGHAI CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 units per month
Delivery Time :
10-15days
Packaging Details :
plywood package
Type: :
Condensing unit
Brand Name: :
KUB
Certification: :
CE
Voltage :
380V/3Ph/50Hz
Horse power: :
5HP
Refrigerant: :
R404a
Warranty :
one year
Compressor type: :
Semi-hermetic Piston Compressors
Condenser type: :
Air Cooler Condenser
Description

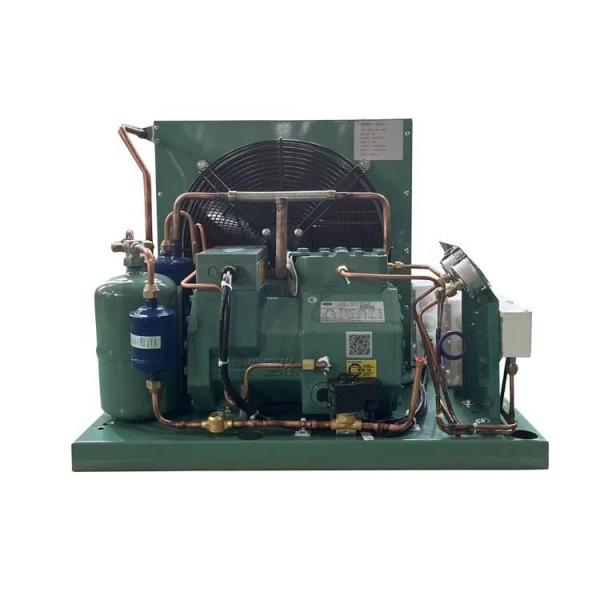

KUB/4DES-5Y Open type air cooled Marine corrosion-resistant unit 5HP condensing unit Copper tube copper fin condensing unit

Product name condensing unit Compressor model 4DES-5Y-40S
Voltage 380v 3ph 50hz Refrigerant R404A

4DES-5Y condensing unit , this is produced by our company. It is a condensing unit for ships.

The compressor adopts Bit-zer, and a KP1 low-pressure pressure control is used alone for low-pressure start-up and shutdown.
Aluminum fins are more likely to be corroded by seawater than copper fins, because copper is more resistant to seawater corrosion than aluminum. Therefore, for the condenser used on board, we choose the condenser with copper tube and copper sheet.
The specific heat of copper is 0.385 J/g K; the specific heat of aluminum is 0.897 J/g K. The smaller the specific heat, the easier the temperature rises or falls. The specific heat of copper is about half of that of aluminum, so the temperature drops faster and the heat dissipation is more efficient.

Factory direct production , Customized according to needs.
