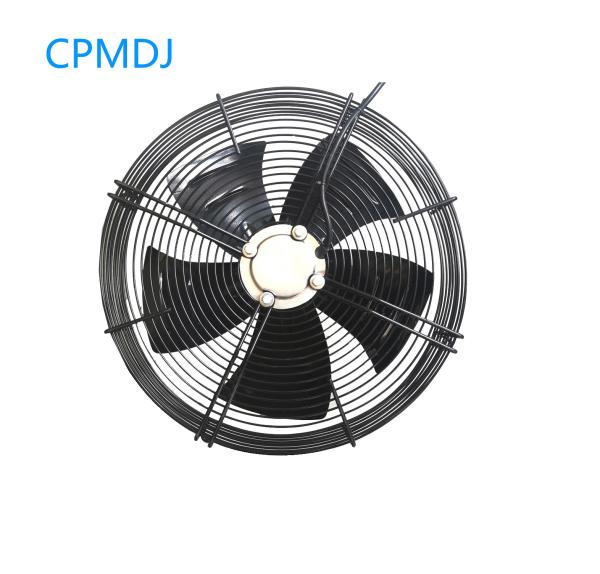

1350RPM Dia 450mm Air Axial Flow Fan With External Rotor Motor Ventilation System
1350RPM Dia 450mm Air Axial Flow Fan With External Rotor Motor Ventilation System
1350RPM Dia 450mm Air Axial Flow Fan With External Rotor Motor Ventilation System
1350RPM Dia 450mm Air Axial Flow Fan With External Rotor Motor Ventilation System
1350RPM Dia 450mm Air Axial Flow Fan With External Rotor Motor Ventilation System
1350RPM Dia 450mm Air Axial Flow Fan With External Rotor Motor Ventilation System
1350RPM Dia 450mm Air Axial Flow Fan With External Rotor Motor Ventilation System
1350RPM Dia 450mm Air Axial Flow Fan With External Rotor Motor Ventilation System
Specifications
Brand Name :
CPMDJ
Model Number :
YWF4D-450
Certification :
CCC
Place of Origin :
Made in China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000000
Delivery Time :
15-35 days
Packaging Details :
Foam+Carton
Blade material :
Stainless Steel,Steel Plate,Galvanized sheet
Size :
Customized
Type :
Axial Flow Fan,AC Fan and blower,large air volume axial exhaust fan
Electric current type :
AC
Usage :
widely used in condenser
Color :
black & customized
Voltage :
220V/380V
Description

220 V 380 V Dia 550 mm Air Axial Blower Ventilation Motor Fan Axial Flow Exhaust Fan / AC Axial Flow Fan

Product Review:

1),YWF series axial fan motors are external rotor fan motors with the characteristics of compact structure, convenient installation, reliable operation, low noise, energy saving and high efficiency.
2), AC External Rotor Motor Fans are divided into singlephrase asynchronous capacitor fan motor and threephrases asynchronous fan motor which are widely used in condenser, evaporator and other refrigeration equipment and ventiliating cycle areas.
4),The standard length of the electrical wire on the fan is 1.5m, and we can also provide connection box to fan motors for clients' choices.
5),The applicable environment temperature of the fan motors used in condensers is from 0℃ to +60℃, and that of the fan motors used in evaporators is from -30℃ to 0℃.
6),The average working life of motors is more than 30000 hours.

2,Model Description YWF4D400 axial fan
YWF 4 D -400
1 2 3 4
1.YWF-External Rotor Axial Fan
2.Motor pole number:2--Two poles 4--Four poles 6--Six poles
3.D-Three-phase motor,E-Single-phase motor
4.Blade diameter:400-blade diameter is 400mm

Details of Axial Flow Fan:

The Axial Fan with external rotor motor is composed of Fan Blade, outer rotor motor, net cover, lead wire, etc. . It is suitable
for many aspects. Use but not limited to: Air Coolers, Air Dryers, chillers,
evaporators, outdoor air conditioners,
radiators, dehumidifiers, hydraulic equipment,
heat pumps, laser cutting, laser printing,
refrigeration equipment and so on.

Technical Paremeters:

Model Voltage Frequency Current Input Power Speed Air Flow Capacitor Noise
(V) (Hz) (A) (W) (RPM) (m3/h) (uF) (dB)
YWF4E200 220 50 0.2 40 1450 540 1.5 45
YWF4E250 220 50 0.25 56 1400 770 2 52
YWF4D250 380 50 0.19 60 1400 770 / 52
YWF4E300 220 50 0.4 90 1400 1600 3 58
YWF4D300 380 50 0.28 90 1400 1600 / 58
YWF4E350 220 50 0.73 145 1380 2500 4 62
YWF4D350 380 50 0.4 145 1380 2500 / 62
YWF4E400 220 50 0.85 190 1380 3500 6 68
YWF4D400 380 50 0.52 190 1380 3500 / 68
YWF4E450 220 50 1.2 250 1350 4850 8 68
YWF4D450 380 50 0.62 250 1350 4850 / 68
YWF4E500 220 50 1.6 350 1350 6570 10 72
YWF4D500 380 50 0.52 390 1350 6570 / 72
YWF4E550 220 50 2.4 500 1300 8700 12 75
YWF4D550 380 50 1.25 500 1300 8700 / 75
YWF4E600 220 50 3.3 710 1350 10850 16 78
YWF4D600 380 50 1.61 750 1350 10850 / 78
YWF4E630 220 50 3.55 750 1310 11000 16 78
YWF4D630 380 50 1.6 750 1310 12000 / 78
YWF6D710 380 50 1.25 670 650 12800 / 80
YWF6D800 380 50 2.4 1100 900 21500 / 83
YWF6D900 380 50 3.2 1600 900 27300 / 85

1350RPM Dia 450mm Air Axial Flow Fan With External Rotor Motor Ventilation System

Applications:

1350RPM Dia 450mm Air Axial Flow Fan With External Rotor Motor Ventilation System

Packing:

1350RPM Dia 450mm Air Axial Flow Fan With External Rotor Motor Ventilation System
