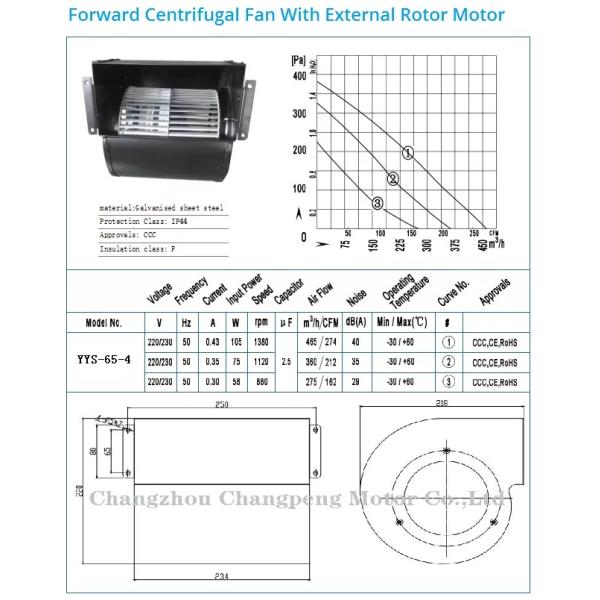

Dual Inlet 850rpm Forward Centrifugal Blower Fan
Dual Inlet 850rpm Forward Centrifugal Blower Fan
Dual Inlet 850rpm Forward Centrifugal Blower Fan
Dual Inlet 850rpm Forward Centrifugal Blower Fan
Specifications
Brand Name :
CPMDJ
Model Number :
YYS-65-4
Certification :
CCC
Place of Origin :
Made in China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000000
Delivery Time :
15-35 days
Packaging Details :
Foam+Carton
Type :
Forward Centrifugal Fan
Winding :
Copper Wire
Bearing :
Ball/Sliding Bearing
Blade material :
Stainless Steel,Steel Plate,Galvanized sheet
Power :
65W
Speed :
850rpm
Size :
Customized
Description

CPMDJ Dual Inlet Centrifugal Blower Fan External Rotor Motor / AC Forward Blower Fan Motor Double Wheel Blower Fans

AC Forward Centrifugal Blower Fan
AC Forkward Centrifugal Fans, we provide the highest quality, We can customize products of different specifications and materials according to customers' needs. We provide samples free of charge to ensure that the quality of the products meets your requirements.

Product Features:

Material: Housing:Sheet Steel
Impeller:Galvanised Sheet Steel
Rotor:Partially cast in aluminium
Direction of rotation: CW OR CCW,seen on rotor
Type of protection: IP44
Insulation class: B/F
Mode of operation: S1
Mounting position: Any
Bearing: Ball bearing (Maintenance)

Application :

Our range of small ,midium and large sized centrifugal fans are suitable for many areas . Include but limited to :
Electronic cabinet cooling

EC fan array

Clean room modules

Heat exchangers

Air filtration

Military HVAC

Medical appliances

Plastic extrusion

Fume hoods

Pharmaceutical equipment

Pre-Sales Service:

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service:

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery online.

Dual Inlet 850rpm Forward Centrifugal Blower Fan

AC External Rotor Motor Powered Double-Inlet Housing Centrifugal Fan

1. The external rotor motor powered centrifugal fan has the characteristics of compact structure, reliable operation, low noise, easy installation, and high efficiency, etc.
2. There are single-phase and three-phase power input types for the external rotor motor powered centrifugal fan. And the centrifugal fans are widely used in the industries of air conditioning terminal system, IT & Telecom, FFU, Fresh air system, and ventilation, etc.
3. There's a built-in thermal protector for the single-phase motor, and the motor can be operated in the temperature from -30 to 60 degrees Celsius. If the customer needs a built-in thermal protector for the three-phase motor, please note us while placing the order.
4. The speed of the motor can be controlled by a transformer or VFD. We also can change the speed by changing the motor's △- and Y-wiring for the three-phase motor, and by using the shifts taps vary method for single-phase motor.
5. We would need the operating point parameters of the motor such as speed, power, and even the assembly size if the customer is only ordering the motor for their application. To get a suitable motor performance, we would prefer an impeller and housing for doing testing and research if the customer is going to use the motor for powering their centrifugal impeller.
6. Noise Level. The noise level defined for our motor fan is the sound pressure level. The distance for doing the noise level test is 1m from the test point to the inlet hose according to the national standard requirements.
7. Average of our motors The bearing used on our motor is a maintenance-free ball bearing, and the average life rating is L10 which is between 30,000 to 50,000 hours based on different operating conditions.

Specification:

Fan model Motor model Voltage Frequency Speed Air volume Current Capacitor
CPZ7-7 YDK90-6 203V-240V 50/60Hz 850RPM 1000m³/h 0.9A 5μF
YDK200-4 203V-240V 50/60Hz 1150RPM 1500m³/h 1.8A 10μF
CPZ8-8 YDK200-6 203V-240V 50/60Hz 820RPM 2000m³/h 2.0A 10μF
YDK300-4 203V-240V 50/60Hz 1200RPM 2200m³/h 2.1A 10μF
CPZ9-9 YDK250-6 203V-240V 50/60Hz 850RPM 2000m³/h 1.9A 10μF
YDK375-6 203V-240V 50/60Hz 850RPM 2000m³/h 3.5A 10μF
YDK375-4 203V-240V 50/60Hz 1200RPM 2500m³/h 3.5A 10μF
YDK550-4 203V-240V 50/60Hz 1150RPM 3250m³/h 4.6A 20μF
CPZ10-10 YDK450-6 203V-240V 50/60Hz 850RPM 3000m³/h 3.5A 20μF
YDK550-4 203V-240V 50/60Hz 1150RPM 3250m³/h 4.6A 20μF
CPZ12-9 YDK750-6 203V-240V 50/60Hz 830RPM 3000m³/h 7.2A 30μF
YDK900-4 203V-240V 50/60Hz 1250RPM 6000m³/h 8.0A 30μF
CPZ12-12 YDK750-6 203V-240V 50/60Hz 830RPM 3000m³/h 7.2A 30μF
YDK900-6 203V-240V 50/60Hz 880RPM 7000m³/h 8.6A 30μF

​The radial / centrifugal fans have an impeller as the moving component; it is nothing but a set of blades or ribs suitably placed around a central shaft. They are also sometimes called a squirrel cage or a scroll fan.

In centrifugal fans, the air flows at right angles to the inlet air direction and throws the air outward toward the outlet through the action of deflection and centrifugal force. When the impeller rotates, air is allowed to enter the fan around the open space between the impeller and the shaft and is forced to proceed at a right angle to the shaft toward the opening of the fan casing. This type of fan produces, comparatively (with respect to axial fans), a higher pressure and less gas flow; they are noisier than axial fans. Radial/centrifugal fans also are classified according to their type of wheel blades.
