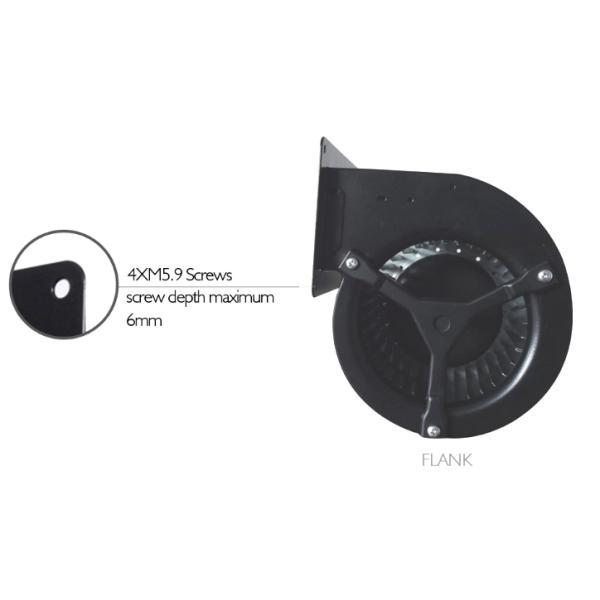

65W Centrifugal Blower Fan Exhaust Centrifugal Blower Quiet Centrifugal Fan
65W Centrifugal Blower Fan Exhaust Centrifugal Blower Quiet Centrifugal Fan
65W Centrifugal Blower Fan Exhaust Centrifugal Blower Quiet Centrifugal Fan
65W Centrifugal Blower Fan Exhaust Centrifugal Blower Quiet Centrifugal Fan
65W Centrifugal Blower Fan Exhaust Centrifugal Blower Quiet Centrifugal Fan
65W Centrifugal Blower Fan Exhaust Centrifugal Blower Quiet Centrifugal Fan
65W Centrifugal Blower Fan Exhaust Centrifugal Blower Quiet Centrifugal Fan
65W Centrifugal Blower Fan Exhaust Centrifugal Blower Quiet Centrifugal Fan
65W Centrifugal Blower Fan Exhaust Centrifugal Blower Quiet Centrifugal Fan
65W Centrifugal Blower Fan Exhaust Centrifugal Blower Quiet Centrifugal Fan
Specifications
Brand Name :
CPMDJ
Model Number :
YYS-65-4
Certification :
CCC
Place of Origin :
Made in China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000000
Delivery Time :
15-35 days
Packaging Details :
Foam+Carton
Type :
Forward Centrifugal Fan
Product Name :
HVAC Radial Fan Centrifugal Air Conditioning Blower With Double Air Flow Inlet
Winding :
Copper Wire
Bearing :
Ball/Sliding Bearing
Blade material :
Stainless Steel,Steel Plate,Galvanized sheet
Material :
Steel
Application :
Exhaust Ventilation
Power65W :
65W
Electric current type :
AC,DC
Feature :
high efficiency,Low noise
Size :
Customer's Request,Customized
Description

65W Centrifugal Blower Fan Exhaust Centrifugal Blower Quiet Centrifugal Fan

Centrifugal Blower fan with high efficiency, low power consumption, large air value and quiet noise level.Available with global voltage input accommodating 100VAC to 240VAC, allowing for a single model to be used in products for both 115VAC and 230VAC applications.

Storage temperature range : -40~+80 C°

Operating temperature range : -40~ +70C°

Bearing type : ball bearing NMB or other equivalent brand

Life time : above 35000hours

Specification:

Fan model Motor model Voltage Frequency Speed Air volume Current Capacitor
CPZ7-7 YDK90-6 203V-240V 50/60Hz 850RPM 1000m³/h 0.9A 5μF
YDK200-4 203V-240V 50/60Hz 1150RPM 1500m³/h 1.8A 10μF
CPZ8-8 YDK200-6 203V-240V 50/60Hz 820RPM 2000m³/h 2.0A 10μF
YDK300-4 203V-240V 50/60Hz 1200RPM 2200m³/h 2.1A 10μF
CPZ9-9 YDK250-6 203V-240V 50/60Hz 850RPM 2000m³/h 1.9A 10μF
YDK375-6 203V-240V 50/60Hz 850RPM 2000m³/h 3.5A 10μF
YDK375-4 203V-240V 50/60Hz 1200RPM 2500m³/h 3.5A 10μF
YDK550-4 203V-240V 50/60Hz 1150RPM 3250m³/h 4.6A 20μF
CPZ10-10 YDK450-6 203V-240V 50/60Hz 850RPM 3000m³/h 3.5A 20μF
YDK550-4 203V-240V 50/60Hz 1150RPM 3250m³/h 4.6A 20μF
CPZ12-9 YDK750-6 203V-240V 50/60Hz 830RPM 3000m³/h 7.2A 30μF
YDK900-4 203V-240V 50/60Hz 1250RPM 6000m³/h 8.0A 30μF
CPZ12-12 YDK750-6 203V-240V 50/60Hz 830RPM 3000m³/h 7.2A 30μF
YDK900-6 203V-240V 50/60Hz 880RPM 7000m³/h 8.6A 30μF

65W Centrifugal Blower Fan Exhaust Centrifugal Blower Quiet Centrifugal Fan

The radial / centrifugal fans have an impeller as the moving component; it is nothing but a set of blades or ribs suitably placed around a central shaft. They are also sometimes called a squirrel cage or a scroll fan.

In centrifugal fans, the air flows at right angles to the inlet air direction and throws the air outward toward the outlet through the action of deflection and centrifugal force. When the impeller rotates, air is allowed to enter the fan around the open space between the impeller and the shaft and is forced to proceed at a right angle to the shaft toward the opening of the fan casing. This type of fan produces, comparatively (with respect to axial fans), a higher pressure and less gas flow; they are noisier than axial fans. Radial/centrifugal fans also are classified according to their type of wheel blades.

Certificate of HVAC Air Cooling Motor:

65W Centrifugal Blower Fan Exhaust Centrifugal Blower Quiet Centrifugal Fan

Our Service of HVAC Air Cooling Motor:

● Online service: we can talk on Trade manger , Email, Phone, Wechat and so on.
● Customer service: we accept OEM,with your own design, brand and label.
● Sample service:we will send samples for free, if you decide to buy our product
● Presale service: We will try our best to answer you every question in time.

● In-sale service: We will produce the goods with high quality; and pack carefully. We will also keep contact with you when the goods are ready for delivery until it reached safely.

● After-sale service:If you have any question, please contact us at any time.
