Specifications
Brand Name :
CPMDJ
Model Number :
YSK110-25-4
Certification :
CCC
Place of Origin :
Made in China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000000
Delivery Time :
15-35 days
Packaging Details :
Foam+Carton
Protect Feature :
Totally Enclosed
Efficiency :
IE 1
Product Name :

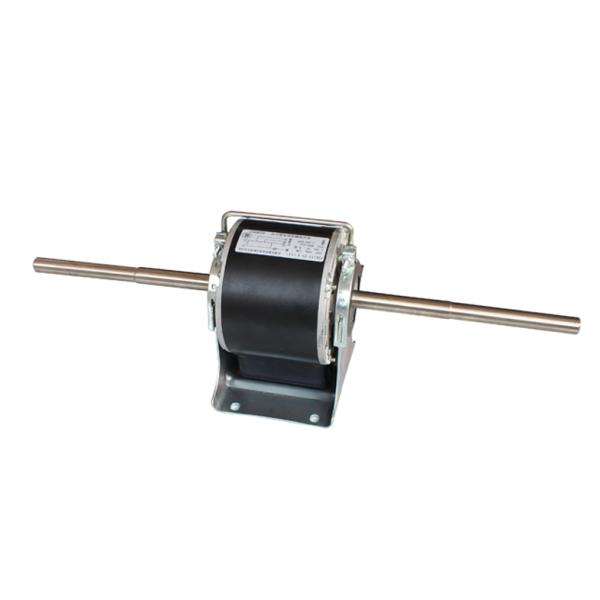

25W YSK Fan Coil Unit Motor For HVAC System Double Shaft FCU Fan Motor
Voltage :
220v
Speed :
890RPM
Protection class :
IP21
Capacitor :
0.5uF
Output power :
25W
Description

25W YSK Fan Coil Unit Motor For HVAC System Double Shaft FCU Fan Motor

Product Feasure:
Product Name AC Fan Coil Motor
Model YSK110-25-4
Voltage 110~270V
Rated Power 25W
Rated Speed 900rpm
Insulation Class "B"
Motor Protection Totally Enclosed
Commutation Brushless
Efficiency 85%
Ambient temp. - 20 ℃ to + 40
Life Time 50,000 hours
Application FFU, FCU, Air Curtain, Air Conditioner, Evaporator Cooler, etc

Other Models:

Model Voltage(v) Frequency(Hz) Output(w) Speed(rpm) Capacitor(μF) Insulation(Class)
YDK83-20-4 220/110 50/60 20 1300 2 B
YDK93-16-4 220/110 50/60 16 1300 1.5 B
YDK93-25-4 220/110 50/60 25 1300 2.5 B
YDK120-30-8 220/110 50/60 30 520 3 B
YDK120-50-8 220/110 50/60 50 520 4 B
YDK139-100-22 220/110 50/60 100 480 6 B
YDK95-25-6 220/110 50/60 25 880 2.5 B
YDK95-35-6 220/110 50/60 35 880 3 B
YDK95-45-6 220/110 50/60 45 880 3.5 B
YDK120-60-6 220/110 50/60 60 850 4 B
YDK139-150-6 220/110 50/60 150 900 10 B
YDK139-250-6 220/110 50/60 250 900 10 B

25W YSK Fan Coil Unit Motor For HVAC System / Double Shaft FCU Fan Motor

Product features:


1. Safe and reliable, low noise, good starting, long life, etc.
2. All our products pass the CE/CCC/ISO9001.
3. This motor can be designed and produced according to customers' request.
4. We will send you some samples for your inspecting and reference.
5. Every motor is upon strict inspection.
6. Delivering goods on time.

Main advantages:

1. Stamping of lamination.
2. Winding and inserting(both manual and semi-automatically).
3. Vacuum varnishing and machining shaft, housing, end shields etc.
4. Rotor balancing and rotor die-casting..
5. Painting (both wet paint and powder coating).
6. Full Inspecting of all spare parts and in every assembly processing.

Our services:

1. OEM and ODM service are offered.
2. Customers’ requests are seriously considered.
3. We will cooperate with customers for any reasonable design and develop new product.
4. Efficient quality after-sales services are provided.
5. 7-30 days leading time.
6. If need, sample testing or other requests will be arranged.

Company Introduction:


Changzhou Changpeng Motor Co., Ltd., established in 2009, covered an area of 10,000 square meters, is a professional motor manufacturer, designing and producing all kinds of motors for room, commercial and central air conditioners.As an factory of more than 10 years experience, our products have been exported to North and South America, Europe, Mid-east, Southeast Asia,Africa and so on. We have been supporting OEM & ODM for 90% of our customers.

We supply the core techniques service and professional guidance for customers. And our products are exported to Americas, Europe, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit.

FAQ

Q: Do you offer ODM service?
A: Yes. We can custom design for any specific application.

Q: Are your motors expensive?
A: No. Our design team works with end users and OEM to provide the lowest total life cycle cost solution. If continuous operation is critical to your operation, our technologies can design and manufacturer a motor to your specific or unique needs to avoid costly equipment down time.

Q: How can you ensure the motor can drive the machine?
A: Our factory elaborately choose 100% pure copper wire and capacitor with appropriate volume; Our professional manager provide you accurate purchase guide.

Q: How can you control the noise?
A: Our producers carefully check the drawing and process the shaft and end cover; Our inspectors check the dynamic balance repeatedly;

Q: How can you decrease the heat production?
A: Totally copper line lead to less heat production; IP55 class insulation paper avoid cutting-out; Multiple inspections ensure no carelessness exist; Professional application guidance.
