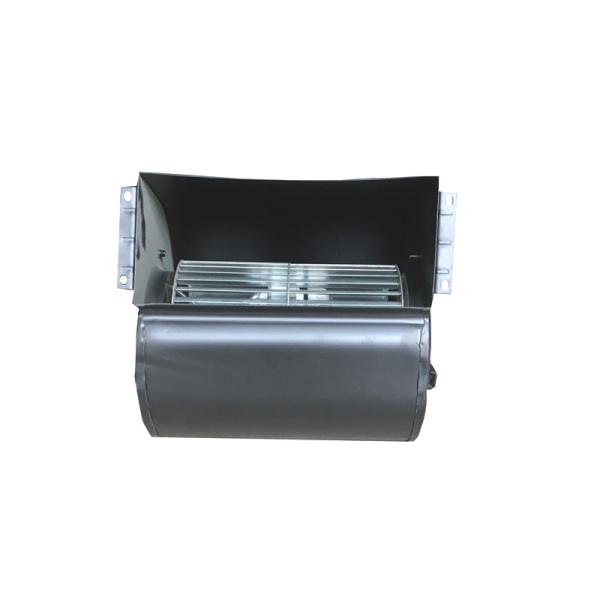

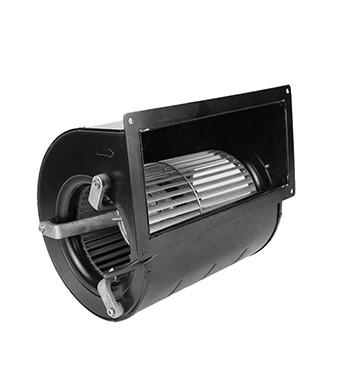

Centrifugal Blower Fan / HVAC Radial Fan Centrifugal Air Conditioning Blower With Double Air Flow Inlet
Centrifugal Blower Fan / HVAC Radial Fan Centrifugal Air Conditioning Blower With Double Air Flow Inlet
Centrifugal Blower Fan / HVAC Radial Fan Centrifugal Air Conditioning Blower With Double Air Flow Inlet
Centrifugal Blower Fan / HVAC Radial Fan Centrifugal Air Conditioning Blower With Double Air Flow Inlet
Centrifugal Blower Fan / HVAC Radial Fan Centrifugal Air Conditioning Blower With Double Air Flow Inlet
Centrifugal Blower Fan / HVAC Radial Fan Centrifugal Air Conditioning Blower With Double Air Flow Inlet
Specifications
Brand Name :
CPMDJ
Model Number :
YYS-65-4
Certification :
CCC
Place of Origin :
Made in China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000000
Delivery Time :
15-35 days
Packaging Details :
Foam+Carton
Type :
Forward Centrifugal Fan
Frequency :
50/60HZ
Protect Feature :
Totally Enclosed
AC Voltage :
208-230 / 240 V
Product Name :
HVAC Radial Fan Centrifugal Air Conditioning Blower With Double Air Flow Inlet
Protection class :
IP44
Winding :
Copper Wire
Bearing :
Ball/Sliding Bearing
Blade material :
Stainless Steel,Steel Plate,Galvanized sheet
Color :
Black,Customer,Customizable,Metal grey,Silver Gray
Material :
Steel,Carbon Steel /Stainless Steel,Metal Blade/Metal Frame
Application :
Exhaust Ventilation,high-pressure forced ventilation,industrial fan,equipment blowing,transport materials and gas
Feature :
High Efficiency,Low Noise Power Saving,easy installation,High Performance
Warranty :
1 Year
Power :
65W
Air volume :
1000
Speed :
850rpm
Motor :
AC Motor,Brushless External Rotor Motor,100% cooper with overload protection,China Brand,Equipped with motor
Size :
Customized
Mounting :
Free Standing
Description

Centrifugal Blower Fan / HVAC Radial Fan Centrifugal Air Conditioning Blower With Double Air Flow Inlet

The radial / centrifugal fans have an impeller as the moving component; it is nothing but a set of blades or ribs suitably placed around a central shaft. They are also sometimes called a squirrel cage or a scroll fan.

In centrifugal fans, the air flows at right angles to the inlet air direction and throws the air outward toward the outlet through the action of deflection and centrifugal force. When the impeller rotates, air is allowed to enter the fan around the open space between the impeller and the shaft and is forced to proceed at a right angle to the shaft toward the opening of the fan casing. This type of fan produces, comparatively (with respect to axial fans), a higher pressure and less gas flow; they are noisier than axial fans. Radial/centrifugal fans also are classified according to their type of wheel blades.

Specification:

Fan model Motor model Voltage Frequency Speed Air volume Current Capacitor
CPZ7-7 YDK90-6 203V-240V 50/60Hz 850RPM 1000m³/h 0.9A 5μF
YDK200-4 203V-240V 50/60Hz 1150RPM 1500m³/h 1.8A 10μF
CPZ8-8 YDK200-6 203V-240V 50/60Hz 820RPM 2000m³/h 2.0A 10μF
YDK300-4 203V-240V 50/60Hz 1200RPM 2200m³/h 2.1A 10μF
CPZ9-9 YDK250-6 203V-240V 50/60Hz 850RPM 2000m³/h 1.9A 10μF
YDK375-6 203V-240V 50/60Hz 850RPM 2000m³/h 3.5A 10μF
YDK375-4 203V-240V 50/60Hz 1200RPM 2500m³/h 3.5A 10μF
YDK550-4 203V-240V 50/60Hz 1150RPM 3250m³/h 4.6A 20μF
CPZ10-10 YDK450-6 203V-240V 50/60Hz 850RPM 3000m³/h 3.5A 20μF
YDK550-4 203V-240V 50/60Hz 1150RPM 3250m³/h 4.6A 20μF
CPZ12-9 YDK750-6 203V-240V 50/60Hz 830RPM 3000m³/h 7.2A 30μF
YDK900-4 203V-240V 50/60Hz 1250RPM 6000m³/h 8.0A 30μF
CPZ12-12 YDK750-6 203V-240V 50/60Hz 830RPM 3000m³/h 7.2A 30μF
YDK900-6 203V-240V 50/60Hz 880RPM 7000m³/h 8.6A 30μF

Product Features:

Material: Housing:Sheet Steel
Impeller:Galvanised Sheet Steel
Rotor:Partially cast in aluminium
Direction of rotation: CW OR CCW,seen on rotor
Type of protection: IP44
Insulation class: B/F
Mode of operation: S1
Mounting position: Any
Bearing: Ball bearing (Maintenance)


Centrifugal Blower Fan / HVAC Radial Fan Centrifugal Air Conditioning Blower With Double Air Flow Inlet
