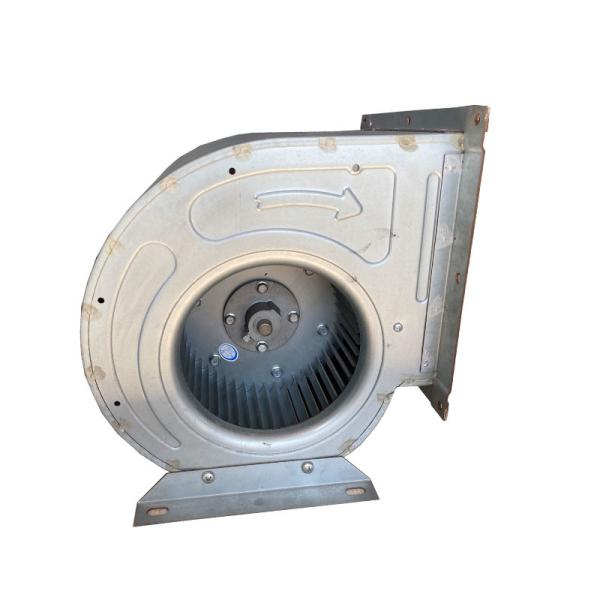

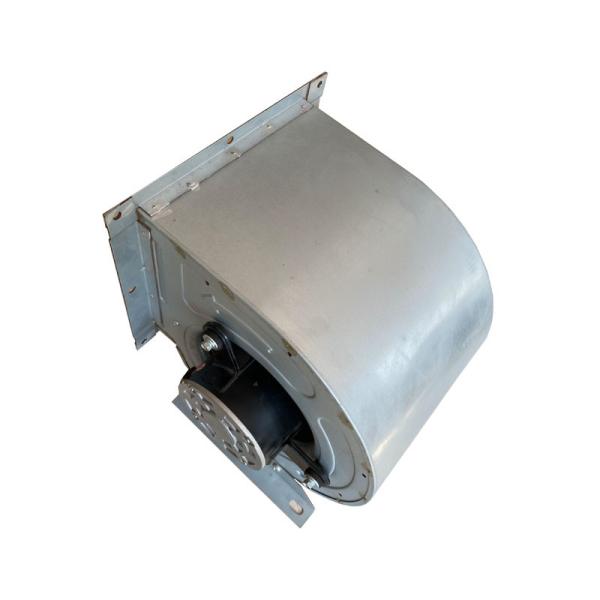

Fan Blower Motor Centrifugal Exhaust Fan For Air Handling Unit AHU Centrifugal Blower
Fan Blower Motor Centrifugal Exhaust Fan For Air Handling Unit AHU Centrifugal Blower
Fan Blower Motor Centrifugal Exhaust Fan For Air Handling Unit AHU Centrifugal Blower
Fan Blower Motor Centrifugal Exhaust Fan For Air Handling Unit AHU Centrifugal Blower
Specifications
Brand Name :
CPMDJ
Model Number :
CPZ12-12
Certification :
CCC
Place of Origin :
Made in China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000000
Delivery Time :
15-35 days
Packaging Details :
Foam+Carton
Type :
Forward Centrifugal Fan
Frequency :
50/60HZ
Protect Feature :
Totally Enclosed
AC Voltage :
208-230 / 240 V
Product Name :
Fan Blower Motor Centrifugal Exhaust Fan For Air Handling Unit AHU Centrifugal Blower
Protection class :
IP44
Winding :
Copper Wire
Bearing :
Ball/Sliding Bearing
Blade material :
Stainless Steel,Steel Plate,Galvanized sheet
Color :
Black,Customer,Customizable,Metal grey,Silver Gray
Material :
Steel,Carbon Steel /Stainless Steel,Metal Blade/Metal Frame
Application :
Exhaust Ventilation,high-pressure forced ventilation,industrial fan,equipment blowing,transport materials and gas
Feature :
High Efficiency,Low Noise Power Saving,easy installation,High Performance
Warranty :
1 Year
Power :
750W
Air volume :
3000
Speed :
850rpm
Motor :
AC Motor,Brushless External Rotor Motor,100% cooper with overload protection,China Brand,Equipped with motor
Size :
Customized
Mounting :
Free Standing
Description

Fan Blower Motor Centrifugal Exhaust Fan For Air Handling Unit AHU Centrifugal Blower

Centrifugal fans can be manufactured to various casing thicknesses and with various forms of construction according to usage. Thus at one extreme they can be handling clean air whilst at the other, air or gas handled can be at a temperature well above ambient and/or may contain substantial quantities of moisture and/or solids. It may also be at high pressure such that loadings on the fan casing and the associated ducting system are much higher than usually expected for a HVAC fan.

Connection to the ducting may be via flexible connections, or alternatively may be directly connected. In the latter case the fan has to withstand additional loads due to the dead weight of these connections. Where gases, or the surrounding ambient atmosphere, are at a high or low temperature, additional loading can result from the effects of expansion or contraction.

Product Features:

Material: Housing:Sheet Steel
Impeller:Galvanised Sheet Steel
Rotor:Partially cast in aluminium
Direction of rotation: CW OR CCW,seen on rotor
Type of protection: IP44
Insulation class: B/F
Mode of operation: S1
Mounting position: Any
Bearing: Ball bearing (Maintenance)

  • External rotor motor protected through thermal contact
  • Balanced statically and dinamically
  • Low noise level
  • Vibrations free
  • Motor connections through both sides of the casing
  • Variable speed 0-100% through electronic controller or transformer

Specification:

Fan model Motor model Voltage Frequency Speed Air volume Current Capacitor
CPZ7-7 YDK90-6 203V-240V 50/60Hz 850RPM 1000m³/h 0.9A 5μF
YDK200-4 203V-240V 50/60Hz 1150RPM 1500m³/h 1.8A 10μF
CPZ8-8 YDK200-6 203V-240V 50/60Hz 820RPM 2000m³/h 2.0A 10μF
YDK300-4 203V-240V 50/60Hz 1200RPM 2200m³/h 2.1A 10μF
CPZ9-9 YDK250-6 203V-240V 50/60Hz 850RPM 2000m³/h 1.9A 10μF
YDK375-6 203V-240V 50/60Hz 850RPM 2000m³/h 3.5A 10μF
YDK375-4 203V-240V 50/60Hz 1200RPM 2500m³/h 3.5A 10μF
YDK550-4 203V-240V 50/60Hz 1150RPM 3250m³/h 4.6A 20μF
CPZ10-10 YDK450-6 203V-240V 50/60Hz 850RPM 3000m³/h 3.5A 20μF
YDK550-4 203V-240V 50/60Hz 1150RPM 3250m³/h 4.6A 20μF
CPZ12-9 YDK750-6 203V-240V 50/60Hz 830RPM 3000m³/h 7.2A 30μF
YDK900-4 203V-240V 50/60Hz 1250RPM 6000m³/h 8.0A 30μF
CPZ12-12 YDK750-6 203V-240V 50/60Hz 830RPM 3000m³/h 7.2A 30μF
YDK900-6 203V-240V 50/60Hz 880RPM 7000m³/h 8.6A 30μF

Fan Blower Motor Centrifugal Exhaust Fan For Air Handling Unit AHU Centrifugal Blower

The two-outlet channels are termed channels 1 and 2. There are no conclusive differences in the measured data for either channel. The designations 1 and 2 only show which channel is throttled and where the pressure measurements are made.

Variation of total pressure in channel 1 versus flow rate at each channel. Variations in the total pressure of both channels are fairly similar. It does not make any difference which of the two outlet channels has a constant throttle point when the other is throttled. Pressure in the fixed throttled channel remains constant when the other channel is throttled. This is important since it shows that if application setting in one channel changes, the users of the other channel will not experience higher or lower heads.
