Curved Multi Bides Centrifugal Blower Fan Single Phase Motor Direct Drive Low Pressure Low Noise
Curved Multi Bides Centrifugal Blower Fan Single Phase Motor Direct Drive Low Pressure Low Noise
Curved Multi Bides Centrifugal Blower Fan Single Phase Motor Direct Drive Low Pressure Low Noise
Curved Multi Bides Centrifugal Blower Fan Single Phase Motor Direct Drive Low Pressure Low Noise
Curved Multi Bides Centrifugal Blower Fan Single Phase Motor Direct Drive Low Pressure Low Noise
Curved Multi Bides Centrifugal Blower Fan Single Phase Motor Direct Drive Low Pressure Low Noise
Specifications
Brand Name :
CPMDJ
Model Number :
CPZ9-9
Certification :
CCC
Place of Origin :
Made in China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000000
Delivery Time :
15-35 days
Packaging Details :
Foam+Carton
Product name :
Curved Multi-bides Centrifugal Fan single phase motor direct drive low pressure low noise Centrifugal Fan
Type :
Centrifugal Fan
Electric Current Type :
AC
Protect Feature :
Totally Enclosed
Winding :
Copper Wire
Housing :
Aluminum
Speed :
820RPM
Warranty :
1 year
Description

Curved Multi-bides Centrifugal Fan single phase motor direct drive low pressure low noise Centrifugal Fan

Dimension Detail

Curved Multi Bides Centrifugal Blower Fan Single Phase Motor Direct Drive Low Pressure Low Noise

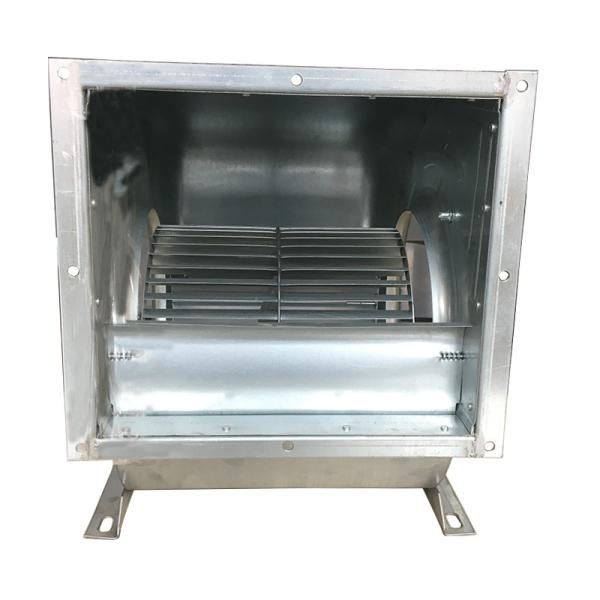

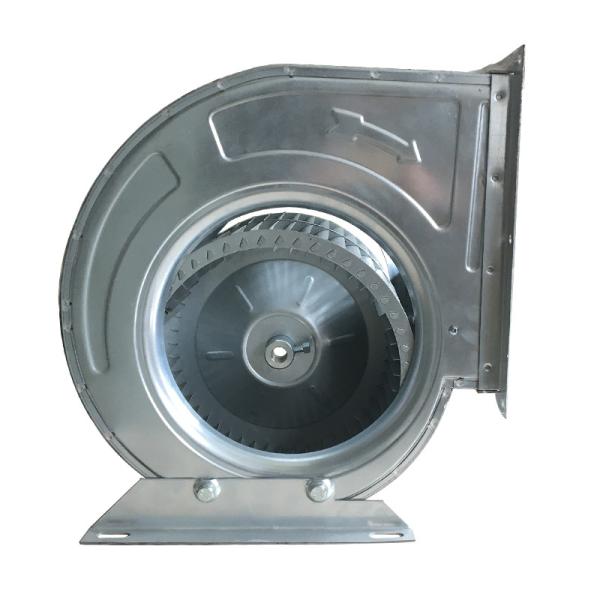

The fans are low noise fans which are newly developed according to the international advanced similar products. With single phase motor direct drive , the fans are characterized by high efficiency, low noise, easy speed regulation . compact structure.

Specification

Fan model Motor model Voltage Frequency Speed Air volume Current Capacitor
CPZ7-7 YDK90-6 203V-240V 50/60Hz 850RPM 1000m³/h 0.9A 5μF
YDK200-4 203V-240V 50/60Hz 1150RPM 1500m³/h 1.8A 10μF
CPZ8-8 YDK200-6 203V-240V 50/60Hz 820RPM 2000m³/h 2.0A 10μF
YDK300-4 203V-240V 50/60Hz 1200RPM 2200m³/h 2.1A 10μF
CPZ9-9 YDK250-6 203V-240V 50/60Hz 850RPM 2000m³/h 1.9A 10μF
YDK375-6 203V-240V 50/60Hz 850RPM 2000m³/h 3.5A 10μF
YDK375-4 203V-240V 50/60Hz 1200RPM 2500m³/h 3.5A 10μF
YDK550-4 203V-240V 50/60Hz 1150RPM 3250m³/h 4.6A 20μF
CPZ10-10 YDK450-6 203V-240V 50/60Hz 850RPM 3000m³/h 3.5A 20μF
YDK550-4 203V-240V 50/60Hz 1150RPM 3250m³/h 4.6A 20μF
CPZ12-9 YDK750-6 203V-240V 50/60Hz 830RPM 3000m³/h 7.2A 30μF
YDK900-4 203V-240V 50/60Hz 1250RPM 6000m³/h 8.0A 30μF
CPZ12-12 YDK750-6 203V-240V 50/60Hz 830RPM 3000m³/h 7.2A 30μF
YDK900-6 203V-240V 50/60Hz 880RPM 7000m³/h 8.6A 30μF

Curved Multi Bides Centrifugal Blower Fan Single Phase Motor Direct Drive Low Pressure Low Noise
