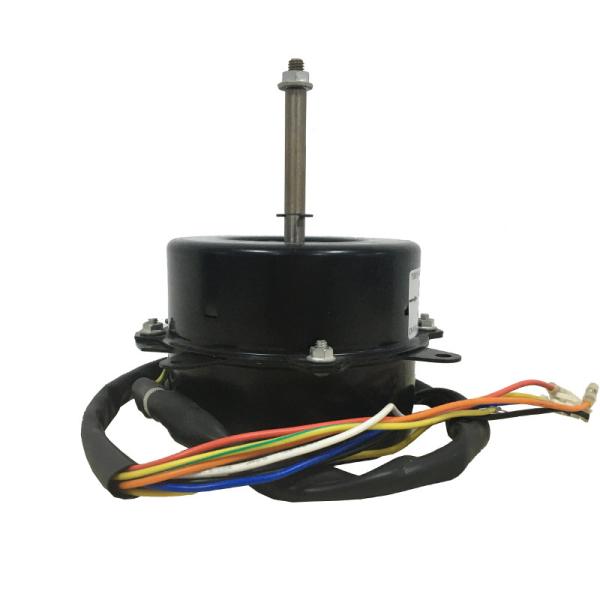

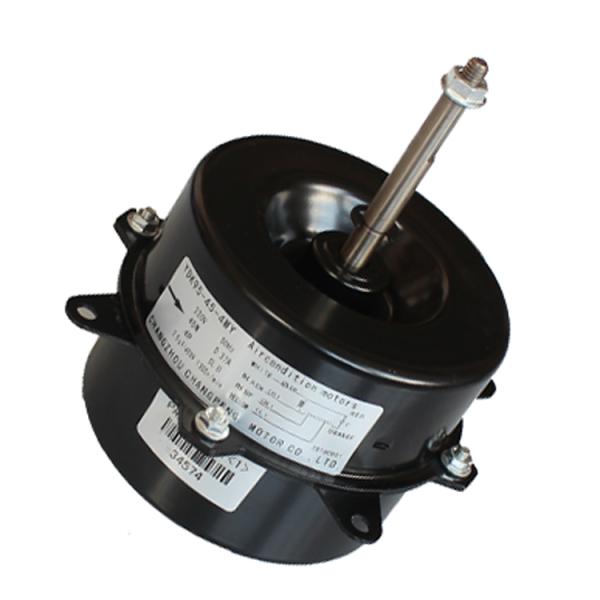

45W 4 Poles Air Cooler Motor / 220V AC Fan Motor For Air Cooler Parts \Air Conditioning Parts
45W 4 Poles Air Cooler Motor / 220V AC Fan Motor For Air Cooler Parts \Air Conditioning Parts
45W 4 Poles Air Cooler Motor / 220V AC Fan Motor For Air Cooler Parts \Air Conditioning Parts
45W 4 Poles Air Cooler Motor / 220V AC Fan Motor For Air Cooler Parts \Air Conditioning Parts
45W 4 Poles Air Cooler Motor / 220V AC Fan Motor For Air Cooler Parts \Air Conditioning Parts
45W 4 Poles Air Cooler Motor / 220V AC Fan Motor For Air Cooler Parts \Air Conditioning Parts
Specifications
Brand Name :
CPMDJ
Model Number :
YDK95-45-4WY
Certification :
CCC
Place of Origin :
Made in China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000000
Delivery Time :
15-35 days
Packaging Details :
Foam+Carton
Product name :
Single phase 45W 4Poles air cooler motor 220V AC fan motor for air cooler
Protection class :
IP21
Insulation :
B
AC Voltage :
208-230 / 240 V
Type :
air cooler motor
Description

45W 4 Poles Air Cooler Motor / 220V AC Fan Motor For Air Cooler Parts Air Conditioning Parts

Product features for Air Cooler Motor

1. Energy-saving
2. Short delivery time
3. Long life, low noise
4. Stator size is optional

5. High efficiency, high reliability
6. Safe, reliable, low noise, good starting, long life
7. 110~120V/220~240V-50/60Hz

Product description for Air Cooler Motor

Single-phase asynchronous motor is composed of stator, rotor, bearing, casing and end cover.The stator of single-phase asynchronous motor is composed of frame and core with winding.

Technical Parameters for HVAC Fan Motor:

Rated Voltage 110/115/127/140V/208V/220/230V/380V/440V
Output Power 120W
Speed R. P. M 500-2600r/min
Frequency 50/60HZ
Protection Class IP21
Insulation Class BF
Type Asynchronous Air Cooler Fan Motor
Efficiency IE1, IE2, IE3, IE4
Input Power 10-1500W
Insulation Class E, B, F
Phase Single-phase
current 0.2A-2A
Poles 2/4/6/8/10
Air cooler fan motor Air Conditioning
Use Fan Motor for Air Conditioner, air cooler, cleaner,Fan Coil Unit and Other HVAC Systems
Certification CCC, CE, RoHS, UL, VDE

Main HVAC Motors

We are mainly engaged in manufacturing AC motors which are widely used in household appliances, such as fan motor, air cooler motor, air conditioner motor, fan coil motor, testing devices motor, centrifugal motor, air purifier motor , induction fan motor, ventilator motor, duct fan motor, dehumidifier motor, mobile air conditioner motor, household indoor and outdoor air conditioner motor and so on.

More Items of Air Cooler Motor

Model Voltage(v) Frequency(Hz) Output(w) Speed(rpm) Capacitor(μF) Insulation(Class)
YDK83-20-4 220/110 50/60 20 1300 2 B
YDK93-16-4 220/110 50/60 16 1300 1.5 B
YDK93-25-4 220/110 50/60 25 1300 2.5 B
YDK120-30-8 220/110 50/60 30 520 3 B
YDK120-50-8 220/110 50/60 50 520 4 B
YDK139-100-22 220/110 50/60 100 480 6 B
YDK95-25-6 220/110 50/60 25 880 2.5 B
YDK95-35-6 220/110 50/60 35 880 3 B
YDK95-45-6 220/110 50/60 45 880 3.5 B
YDK120-60-6 220/110 50/60 60 850 4 B
YDK139-150-6 220/110 50/60 150 900 10 B
YDK139-250-6 220/110 50/60 250 900 10 B

45W 4 Poles Air Cooler Motor / 220V AC Fan Motor For Air Cooler Parts \Air Conditioning Parts
