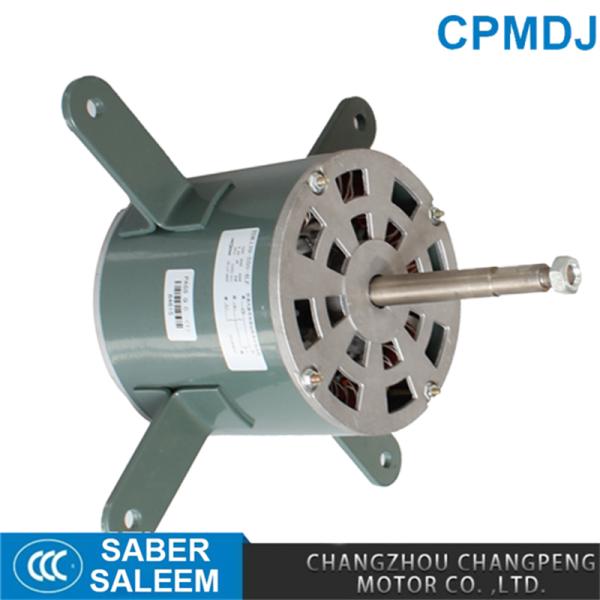

550W AC Motor Condenser Fan Motor 550W
550W AC Motor Condenser Fan Motor 550W
550W AC Motor Condenser Fan Motor 550W
550W AC Motor Condenser Fan Motor 550W
550W AC Motor Condenser Fan Motor 550W
550W AC Motor Condenser Fan Motor 550W
Specifications
Brand Name :
CPMDJ
Model Number :
YDK139-550-4
Certification :
CCC
Place of Origin :
Made in China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000000
Delivery Time :
15-35 days
Packaging Details :
Foam+Carton
Output Power :
550w
Type :
Asynchronous Motor
Phase :
Single-phase
AC Voltage :
208-230 / 240 V
Efficiency :
IE 1
Product Name :
Air Conditioner Condenser Fan Motor
Protection class :
IP21
Material :
copper coil wire
Housing :
Cast Aluminium
Rotation :
CW-CCW
Speed :
1100rpm
Bearing :
Ball Bearing
Description

550W AC Motor Condenser Fan Motor 550W

Product Feature

● Compact structure, small size, light weight, beautiful appearance.
● Steady rise low, high efficiency, environmental protection, energy saving, smooth running, low noise
● Special bearings for low noise, smooth running, small vibration, and aluminum alloy end caps for corrosion resistant.
● Built-in temperature control switch to effectively protect the motor, high reliability for long service life.
● Multi-speed regulator, a variety of installation methods to meet different requirements.

Model Voltage(V) Frequency(Hz) Output(W) Speed(RPM) Capacitor(μF) Model OEM Model
DTM-736 208-230 50/60 1/4 900 5 M3732
YSK140-250-6A 208-230 50/60 1/3 900 7.5 M3733
YSK140-185-6A2 208-230 50/60 1/2 900 10 M3734
YDK139-550-4 208-230 50/60 3/4 1050 15 M3735
YSK140-120-6 208-230 50/60 1/6 900 5 M3656
YSK140-185-6A2 208-230 50/60 1/4 900 6 M3676
YDK140-250-6 208-230 50/60 1/3 1050 7.5 M3686
YDK140-250-6 208-230 50/60 1/3 900 7.5 M3586
YDK140-350-4 208-230 50/60 1/2 900 10 M3588
YDK139-550-4 208-230 50/60 3/4 1050 15 M3590
YSK120-105-6A 220/230 50/60 1/7HP 825/3 CTM-1132 5KCP29TUE1195
YSK120-185-6 220/230 50/60 1/4HP 1125/3 CTM-1132 AC809-547-28
YSK140-120-6A2 220/230 50/60 1/6HP 1000/2 CTM-511 5KCP39DGM511T
YSK140-125-6A2 220/230 50/60 1/6HP 1000/3 CTM-511 5KCP39DGM635T
YSK140-120-6A5 220/230 50/60 1/6HP 1095/3 CTM-004 5KCP39DGM004T
YSK140-120-6A7 220/230 50/60 1/6HP 1050/3 CTM-5158 K55HXPKG-5158
YSK140-150-6A2 220/230 50/60 1/5HP 1075/3 CTM-672 5KCP39FGM672S
YSK140-150-6A3 220/230 50/60 1/5HP 1050/3 CTM-635C 5KCP39HGS635C
YSK140-150-6A4 220/230 50/60 1/5HP 1115/3 CTM-4440 5KCP39FGM4440
YSK140-150-6A15 220/230 50/60 1/5HP 1100/3 CTM-5966 K55HXLEK-5966
YSK140-180-6A 220/230 50/60 1/4HP 1075/3 CTM-736 5KCP29MGE736S
YSK140-185-6A3 220/230 50/60 1/4HP 1100/3 CTM-635S 5KCP39HGS635S
YSK140-245-6A2 220/230 50/60 1/3HP 1075/3 CTM-307 5KCP39HGM307AT
YSK140-245-4A 220/230 50/60 1/3HP 1335/3 CTM-A30 F48U02A30

◆INDICATIONS OF THE MODELS:
YDK139-550-4
CPMDJ Air Conditioner Condenser Fan Motor
139: Frame size:139mm
Power: 550W

550W AC Motor Condenser Fan Motor 550W

550W AC Motor Condenser Fan Motor 550W
◆GENERAL SPECIFICATIONS:


♦ Environmental conditions: -20 to +50 Centigrade degree

♦ Nuber of Poles/phase: 4

♦ Insulation class: B

♦ We can design as the customer request.

◆ Application:Air Conditioner, Condenser

Our Service

● Online service: we can talk on Trade manger , Email, Phone, Wechat and so on.
● Customer service: we accept OEM,with your own design, brand and label.
● Sample service:we will send samples for free, if you decide to buy our product
● Presale service: We will try our best to answer you every question in time.

● In-sale service: We will produce the goods with high quality; and pack carefully. We will also keep contact with you when the goods are ready for delivery until it reached safely.

● After-sale service:If you have any question, please contact us at any time

Packing and Delivery

All our goods will be delivered 1 month after receiving your payment. The goods will be packed in a container, which one container including 5000pcs.We will inform you before we send out the product.
