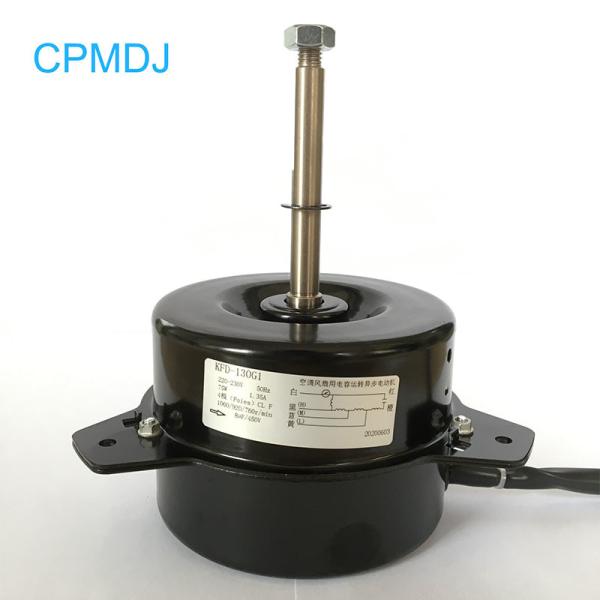

4 Poles NSK Ball Bearing Air Conditioner Single-Phase Outdoor Fan Motor / HVAC Fan Motor
4 Poles NSK Ball Bearing Air Conditioner Single-Phase Outdoor Fan Motor / HVAC Fan Motor
4 Poles NSK Ball Bearing Air Conditioner Single-Phase Outdoor Fan Motor / HVAC Fan Motor
4 Poles NSK Ball Bearing Air Conditioner Single-Phase Outdoor Fan Motor / HVAC Fan Motor
Specifications
Brand Name :
CPMDJ
Model Number :
YDK120-75-4
Certification :
CCC
Place of Origin :
Made in China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000000
Delivery Time :
15-35 days
Packaging Details :
Foam+Carton
Product name :
4 Poles NSK Ball Bearing Air Conditioner Single-Phase Outdoor Fan Motor
Voltage :
220V
Frequency :
50/60Hz
Insulation class :
B
Shaft :
Single Shaft
Bearing :
NSK Bearing
Phase :
Single-phase
Waterproof :
IP 21
Description

4 Poles NSK Ball Bearing Air Conditioner Single-Phase Outdoor Fan Motor / HVAC Fan Motor

Product Description of HVAC Fan Motor

Reversible plug for easy rotation
Quick installation
Energy efficient
Quiet operation
Ball bearing
Automatic overload
Thermal protection
High efficiency, High reliability, Little vibration, Low noise

Technical Parameters of Air Conditioner Fan Motor:

Rated Voltage 110/115/127/140V/208V/220/230V/380V/440V
Output Power 75W
Speed R. P. M 500-2600r/min
Frequency 50/60HZ
Protection Class IP21
Insulation Class BF
Type Asynchronous air conditioner fan motor
Efficiency IE1, IE2, IE3, IE4
Input Power 10-1500W
Insulation Class E, B, F
Phase Single-phase
current 0.2A-2A
Poles 2/4/6/8/10
air conditioner fan motor Air Conditioning
Use Fan Motor for Air Conditioner, air cooler, cleaner,Fan Coil Unit and Other HVAC Systems
Certification CCC, CE, RoHS, UL, VDE

4 Poles NSK Ball Bearing Air Conditioner Single-Phase Outdoor Fan Motor / HVAC Fan Motor

Production of HVAC Fan Motor:
1. High Speed Pressing Machine - Rotor
2. Automatic Production on Lacquered Wire & Auto Winding - Stator
3. Sheet Metaling - Cover

Then the finished fan motor will be completed.

Testing of HVAC Fan Motor: :
Our each process, each parts will be tested by our each production department with professional fan motor testing facilities to keep the quality proved.

Packing of HVAC Fan Motor:
Each fan motor will be packed by waterproof packages, then put in the thick and good quality cartons, around the products, some protecting materials will be toegther, then we seal it carefully to make the complete packing. After, we pile them carefully on the good-quality pallets. Finally the outside covers waterproof materials again to make it stronger and avoid the delivery problems.

Our Service of HVAC Fan Motor:

A. Design Services of HVAC Fan Motor:
1. Design Research
2. Strategy
3. Industrial Design
4. Engineering
5. Prototyping
6. Brand Support

B. Product Sampling of HVAC Fan Motor:
1. Material Testing
2. Bronze Level
3. Silver Level
4. Gold Level
5. Final Product
6. Certified & Assured

C. Quality Control of HVAC Fan Motor:
1. Raw Material
2. Preproduction Samples
3. in-process standards
4. Pre-shipping
