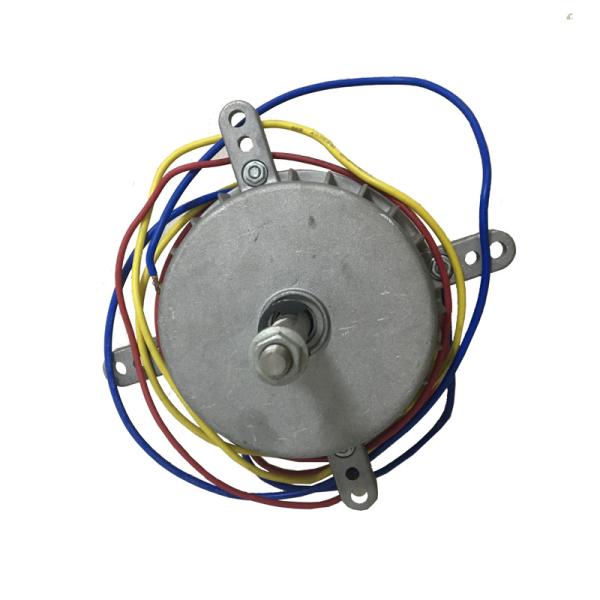

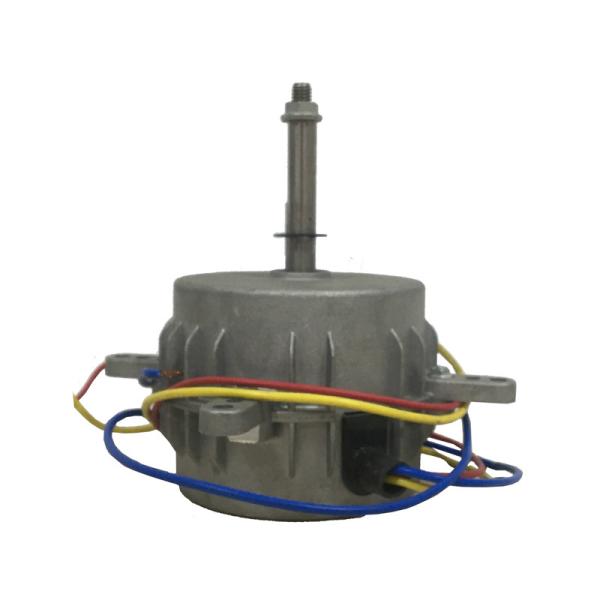

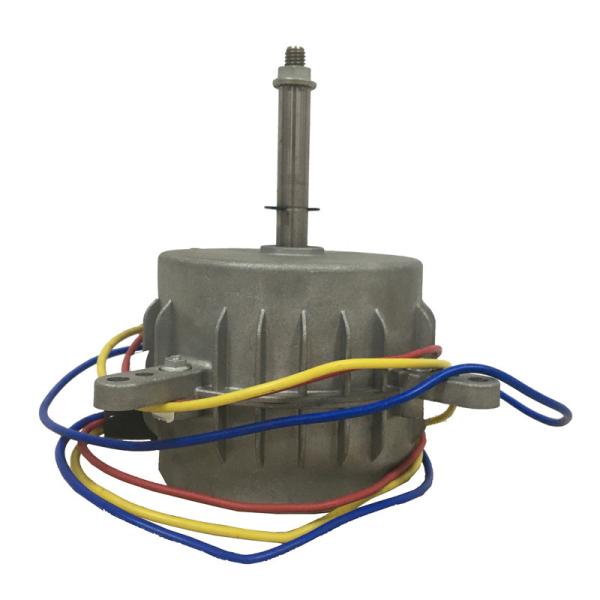

220V 6-750W Brushless Condenser Fan Motor DC Fan Motor For Air Cooler Air Conditioner

Application of DC Fan Motor

YDK series motors are used for Range hood, Air Conditioner, Air Cooler, Ventilator and UV Sterilizer Equipment confirm to CCC ,CE and ROHS standard ,with high efficiency ,good proformance,energy saving , lowest noise ,high starting torque,big air flow,dustproof , anticorrosion ,long service time .

Application ＆ Details of DC Fan Motor

YDK series motors are motors with single phase, 4 poles and running at rated voltage of 220~240V, 50/60Hz or 110~120V, 60Hz .They are widely used in the end of central air conditioner and other air cooler equipment.
The output power is from 6W to 750W, which is relative to the stack length and coil parameters.

Resistence ＆ thermal protection

The insulation class of motors is B, and the protection class of that is IP21. On request IP44 is avaliable
The motor,which output power less than 10W are impedance protection and the motors,which output is bigger than 10W,are thermal protection.The thermal protetor's is 125℃±5℃,135℃±5℃ or 150℃±5℃.
The applicable ambient temperatuer is from -30℃~50℃.

longevity

The average service life of motoer is over 20000 hours.
Most of motors passed CCC approval.
