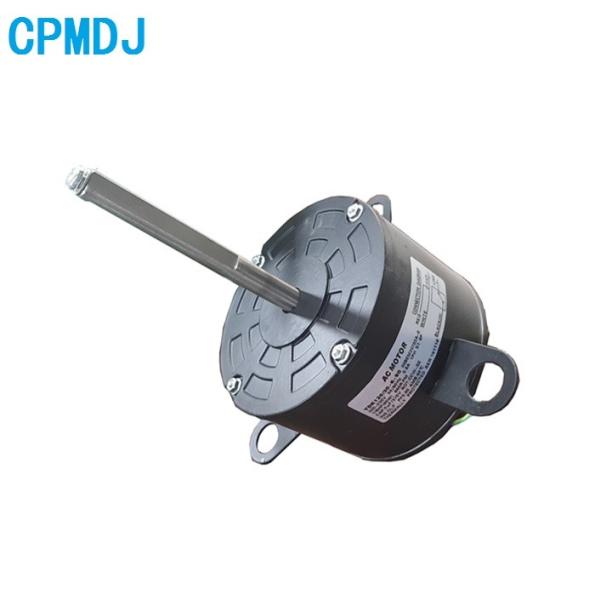

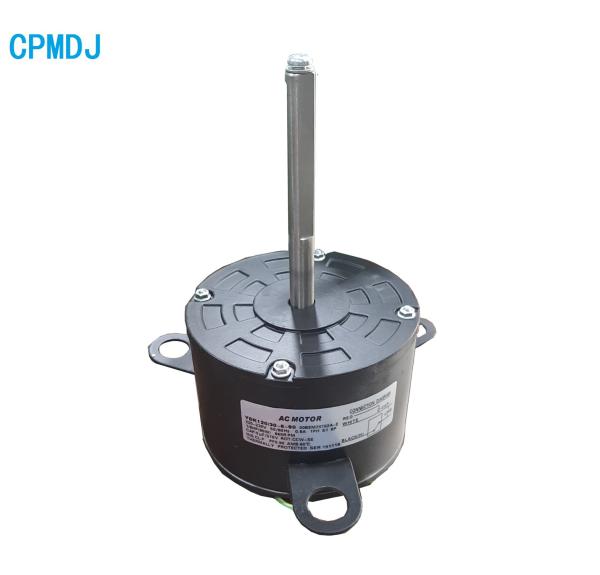

Single Phase Asynchronous 520RPM 60HZ Evaporative Air Conditioner Motor
Single Phase Asynchronous 520RPM 60HZ Evaporative Air Conditioner Motor
Single Phase Asynchronous 520RPM 60HZ Evaporative Air Conditioner Motor
Single Phase Asynchronous 520RPM 60HZ Evaporative Air Conditioner Motor
Single Phase Asynchronous 520RPM 60HZ Evaporative Air Conditioner Motor
Single Phase Asynchronous 520RPM 60HZ Evaporative Air Conditioner Motor
Specifications
Brand Name :
CPMDJ
Model Number :
YDK120-30-6-90
Certification :
CCC
Place of Origin :
Made in China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000000
Delivery Time :
15-35 days
Packaging Details :
Foam+Carton
Product Name :
50w Pole Pairs ac motor exhaust fan air fresher motor single phase Ventilation fan motor
Winding :
100% Cooper Wire
Frequency :
50/60HZ
Voltage :
220v
Model No. :
YDK120-30-6-90
Function :
Ac Motor Specification
Application :
air conditioning
Origin :
Changzhou Jiangsu China
Description

YDK120-30-6-90 High-quality Air Cooler Fan Motor For Air Conditioner Fan Motor For HVAC System

Customized Motor Solutions

All of the designs in the GP Motors portfolio of OEM electric motors, custom fans and blowers, custom controllers, custom electromechanical motor assemblies and components are fully and easily customized (see some of the many customization options listed below) offering OEMs high quality, cost effective options that meet their OEM application specific demands.

Choosing to customize one of the motors or fans in our portfolio, enables OEMs to meet their custom motor or fan requirements while allowing for faster development times.

Application of Air Cooler Fan Motor

Suitable for air conditioning
Model Voltage(v) Frequency(Hz) Output(w) Speed(rpm) Capacitor(μF) Insulation(Class)
YDK83-20-4 220/110 50/60 20 1300 2 B
YDK93-16-4 220/110 50/60 16 1300 1.5 B
YDK93-25-4 220/110 50/60 25 1300 2.5 B
YDK120-30-8 220/110 50/60 30 520 3 B
YDK120-50-8 220/110 50/60 50 520 4 B
YDK139-100-22 220/110 50/60 100 480 6 B
YDK95-25-6 220/110 50/60 25 880 2.5 B
YDK95-35-6 220/110 50/60 35 880 3 B
YDK95-45-6 220/110 50/60 45 880 3.5 B
YDK120-60-6 220/110 50/60 60 850 4 B
YDK139-150-6 220/110 50/60 150 900 10 B
YDK139-250-6 220/110 50/60 250 900 10 B

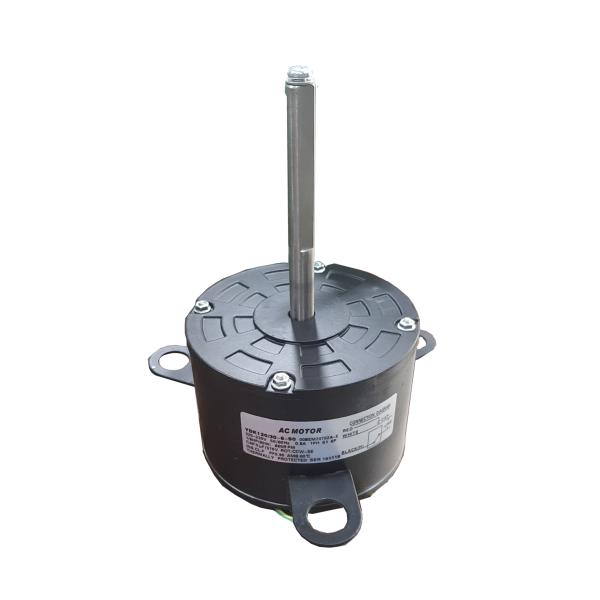

Single Phase Asynchronous 520RPM 60HZ Evaporative Air Conditioner Motor

Product features of Air Cooler Fan Motor


Single-phase asynchronous motor is composed of stator, rotor, bearing, casing and end cover.


The stator of single-phase asynchronous motor is composed of frame and core with winding. The core is made of silicon steel sheet punching groove, which is embedded with two sets of main casting group (also known as operating system group) and auxiliary winding (also known as starting winding to form secondary winding) separated by 90 electrical angles.

The main system is connected to the ac power supply, and the auxiliary winding is connected to the centrifugal switch S or the starting capacitor, the running capacitor, etc., before connecting to the power supply.

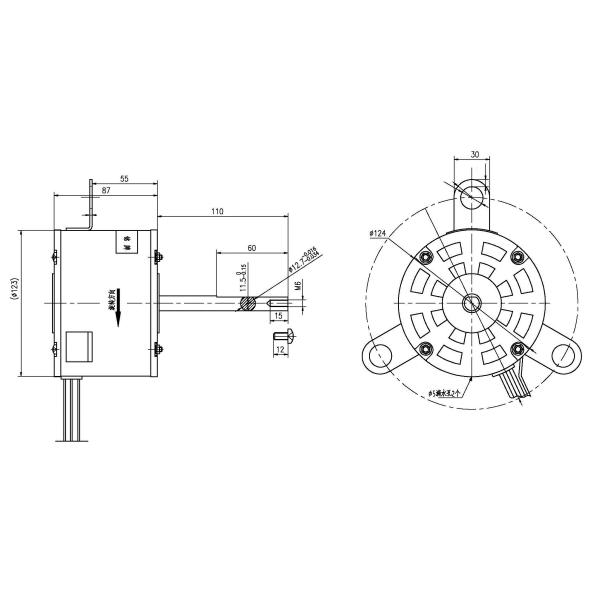

Drawing of Air Cooler Fan Motor

Single Phase Asynchronous 520RPM 60HZ Evaporative Air Conditioner Motor

Notes of Air Cooler Fan Motor
The above mentioned specification is representative specification,The specification can also be designed and manufactured
according to customers requirement.
The products of 100-120V,200-240V,60Hz can also be supplied as requested.
We will not give special notice on changes,please contact our technical department for further information.

Our Service of Air Cooler Fan Motor

● Online service: we can talk on Trade manger , Email, Phone, Wechat and so on.
● Customer service: we accept OEM,with your own design, brand and label.
● Sample service:we will send samples for free, if you decide to buy our product
● Presale service: We will try our best to answer you every question in time.

● In-sale service: We will produce the goods with high quality; and pack carefully. We will also keep contact with you when the goods are ready for delivery until it reached safely.

● After-sale service:If you have any question, please contact us at any time

We provide one-stop manufacturing service with high quality guarantee. It specializes in the researching, designing, developing, and manufacturing of AC motors and DC motors. The main products are environmentally friendly air conditioning motor, cooling fan motor, indoor and outdoor air conditioner motor, water air conditioner motor, fan coil motor, induction fan motor, axial fan motor, heat-pump water heater motor, moveable air cooler motor, brushless DC motor, air purification equipment motor, centrifugal fan motor, external rotor fan motor and other customized motors based on customer’s requirements. With advanced testing equipment, production equipment and experienced independent R&D team, Changzhou Changpeng Motor Co., Ltd believes in the concept of "quality as root, sincerity as basis, virtue as first, faith as living" for our management idea,and we put forward "integrity wins world, brand decides fate" for our development slogan.

We can meet all kinds of clients' needs in order to harmoniously develop our company and clients.

Packing and Delivery of Air Cooler Fan Motor

1.FedEX / DHL / UPS / TNT for samples,Door to door service;
2.By sea for batch goods;
3.Customs specifying freight forwarders or negotiable shipping methods;
4.Delivery Time:20-25 Days for samples;30-35 Days for batch goods;
5.Payment Terms:T/T,L/C at sight,D/P etc.
About Our Company

Since 2009, Changpeng Motors has designed and manufactured the highest quality, OEM electric motors, custom fans and blowers, custom controllers, custom electromechanical motor assemblies and components in the industry. All of our custom fan motors, fans and blowers, electromechanical motor assemblies and components are engineered and manufactured in our R&D, Air Conditioner Fan Motor square foot state-of-the-art manufacturing facility located in Changzhou,Jiangsu.
