Specifications
Brand Name :
CPMDJ
Model Number :
YDK83-20-4
Certification :
CCC
Place of Origin :
Made in China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000000
Delivery Time :
15-35 days
Packaging Details :
Foam+Carton
Product Name :
Air Conditioner Indoor Fan Motor
Application :
Home, Air Conditioner Fan Motor Parts, General Machinery, cooler, Commercial
Power :
20W
Capacitance :
1uF
Protection :
IP20-IP54
Voltage :
208-240V, 110V,115V,127V
Phase :
Single-phase, Three-phase, Single, Three Phase
Insulation :
E/B/F
Type :
Asynchronous Motor, Air Conditioner Parts, Fan Motor, Induction Motor, ac
Color :
black OR Optional
Description

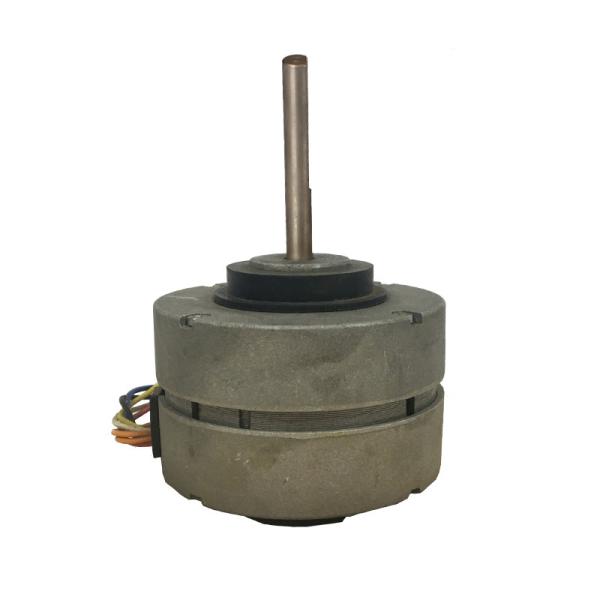

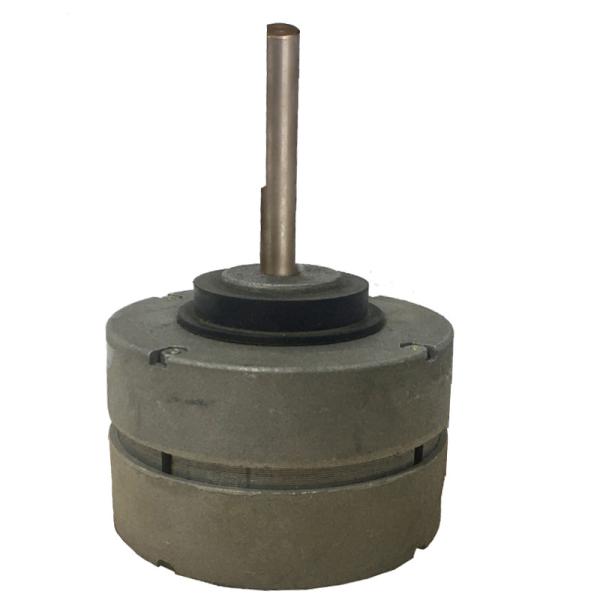

YDK83-20-4 Smooth Running Asynchronous Indoor Fan Motor Air Conditioner Blower Motor Capacitor Operating

Indoor Fan Motor Information

Brand: CPMDJ
Model Number: YDK83-20-4
Type: Asynchronous Moter
Rated Voltage 115V/127V/208-240V
Frequency: 50/60hz
Output Power: 5-750W
Pole: 4
Protect Feature: enclosed
Speed: 700-900 rpm
rotation CW/CCW
Bearing: Ball bearing
Place of Origin: Changzhou China (Mainland)
Certification: ROHS,UL
Features: • Reversible plug for easy rotation
• Class B Insulation
• Quick installation
• Energy efficient
• Quiet operation
• Ball bearing
• Voltage 115/127/208-240 voltage
• Diameter: Steel cover 83mm
• Automatic overload
• Operating temp -10-43 degree
• Power:20W
• Rated Frequency:50/60Hz
• Number of Pole:4/6Pole
• Shaft size:8mm
• Speed: 700-900 rpm
• Thermal protection
• Usage: indoor air conditioner
• High efficiency,High reliability,Little vibration,Low noise
Specifications: A.smooth running
B. long work times and Low temperature
C.low noise
D.steady performance
E.large loading capacity


Main advantages of Indoor Fan Motor:

1. Stamping of lamination.
2. Winding and inserting(both manual and semi-automatically).
3. Vacuum varnishing and machining shaft, housing, end shields etc.
4. Rotor balancing and rotor die-casting..
5. Painting (both wet paint and powder coating).
6. Full Inspecting of all spare parts and in every assembly processing.

Customer First,Honesty First

Now our indoor fan motor are well matched with well-known enterprises both at home and abroad,and are well received by customers.Our product research and development is constantly innovating, production testing equipment is advanced and perfect,quality management is comprehensive and standardized, production layout is reasonable, and product quality is stable.

YDK83-20-4 Smooth Running Asynchronous Indoor Fan Motor Air Conditioner Blower Motor Capacitor Operating

FAQ of Indoor Fan Motor:

1.How do we ensure your product and service quality?

We have strictly quality control system in our indoor fan motor process and 10 times inspection for each finished product before package.and We have 12 months quality guarantee after BL date.If the product can not work accord to the confirmation by both of you and us, and the problem is caused by our side, we will provide exchange same products to you. Changpeng Motor Team applies 24*7 service for you.

2.What's the MOQ of Indoor Fan Motor?

Some of the goods have stock with our brand,which do not have MOQ.
OEM or ODM motors, could discuss according to the actual conditions.

3.When will you ship my Indoor Fan Motor?

Normally,it need about 30days to manufacture the motors after we receiving deposit. Also it can be negotiated based on order quantity and production schedule.

4.What is the most convenient way if you have plan to visit us?

Welcome! Our company is located in Changzhou City.It's almost one hour train from shanghai. Or we will pick you up from Shanghai.
