Name: HVAC Fan Motor 220v 128511701065RPM Compact Structure 3 Speed Motor for Fan Coil Unit Motor FCU Motor
Brand: CPMDJ
Price: 1 USD

MachineU > China Products > Machinery > Electric Equipment Making Machinery > Transformer Making Equipment > Coil Winding Machine

$HVAC Fan Motor 220v 1285/1170/1065RPM Compact Structure 3 Speed Motor for Fan Coil Unit Motor \ FCU Motor$

Specifications

Place of Origin :

Made in China

Brand Name :

CPMDJ

Model Number :

MODA2925BB02A

Certification :

CCC

Supply Ability :

10000000

Packaging Details :

Foam+Carton

MOQ :

100PCS

Price :

Negotiable

Delivery Time :

15-35 days

Payment Terms :

TT, LC

Type :

Asynchronous Motor

Protect Feature :

Totally Enclosed

AC Voltage :

208-230 / 240 V

Product Name :

Good price ac air conditioner fan motor 220v

Voltage :

220v

Speed :

1285/1170/1065RPM

Protection class :

IP44

Insulation :

Capacitor :

5uF

Output power :

74W

Description

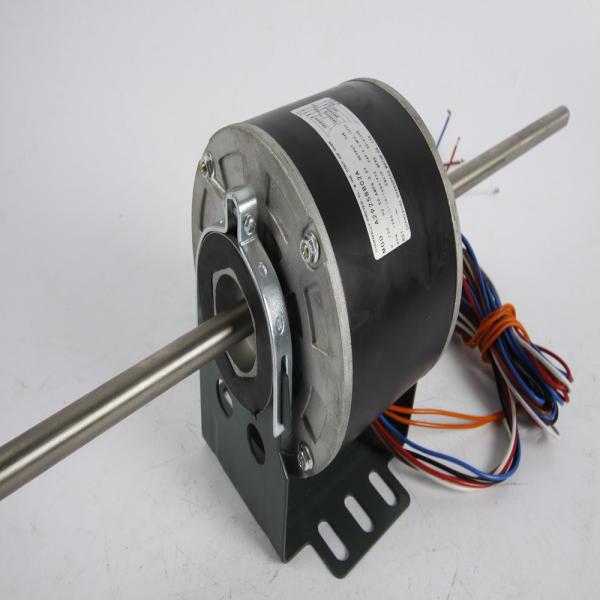

HVAC Fan Motor 220v 1285/1170/1065RPM Compact Structure 3 Speed Motor for Fan Coil Unit

Specification of Fan Coil Unit Motor FCU Motor

Rated Voltage: 220V/220V~240V/115V,100V~120V,50/60Hz

Output Power: 10-100W

Pole:4P/6P

Type: Fan Coil Unit Motor FCU Motor

Feature and Application

Steel Packed

UL/CCC recognized

Multi-speed Design

Commercial A/C, split outdoor fan

Fan coil unit; ventilation fan; dehumidifier

Technical Parameters of Fan Coil Unit Motor FCU Motor:

Rated Voltage	110/115/127/140V/208V/220/230V/380V/440V
Output Power	74W
Speed R. P. M	500-2600r/min
Frequency	50/60HZ
Protection Class	IP21
Insulation Class	BF
Type	Asynchronous Air Conditioner Condenser Fan Motor
Efficiency	IE1, IE2, IE3, IE4
Input Power	10-1500W
Insulation Class	E, B, F
Phase	Single-phase
current	0.2A-2A
Poles	2/4/6/8/10
Air conditioner condenser fan motor	Air Conditioning
Use	Fan Motor for Air Conditioner, air cooler, cleaner,Fan Coil Unit and Other HVAC Systems
Certification	CCC, CE, RoHS, UL, VDE

$HVAC Fan Motor 220v 1285/1170/1065RPM Compact Structure 3 Speed Motor for Fan Coil Unit Motor \ FCU Motor$

Other Models of Fan Coil Unit Motor FCU Motor

Model	Static Press	Vol.Fre.	Motor Type	Output	Input	Current	Speed	Noise
Model	Pa	V/Hz	Motor Type	W	W	A	r/min	Db(A)
FP34	12	220V/50Hz	YDK10-4C	10	34	0.15	820	≤37
	30	220V/50Hz	YDK12-4C	12	41	0.18	900	≤40
	50	220V/50Hz	YDK18-4C	16	48	0.21	1130	≤42
FP51	12	220V/50Hz	YSK12-4C	12	48	0.19	810	≤39
	30	220V/50Hz	YSK18-4C	18	56	0.25	950	≤42
	50	220V/50Hz	YSK28-4C	22	68	0.3	1120	≤44
FP68	12	220V/50Hz	YSK18-4C	20	55	0.25	840	≤41
	30	220V/50Hz	YSK30-4C	25	76	0.32	1030	≤44
	50	220V/50Hz	YSK40-4C	40	81	0.36	1160	≤46
FP85	12	220V/50Hz	YSK32-4C	28	77	0.34	980	≤43
	30	220V/50Hz	YSK34-4C	35	87	0.4	1050	≤46
	50	220V/50Hz	YSK54-4C	45	95	0.43	1230	≤47
FP102	12	220V/50Hz	YSK41-4C	30	98	0.45	1040	≤45
	30	220V/50Hz	YSK52-4C	40	112	0.47	1150	≤47
	50	220V/50Hz	YSK65-4C	55	114	0.5	1240	≤49
FP136	12	220V/50Hz	YDK12-4C	18	140	0.64	940	≤46
	12	220V/50Hz	YSK41-4C	Product tags sa76a fan motor , ywf4d1 condenser fan motor , 1075 rpm condenser fan motor Send your message to this supplier Message* Email* Phone or WhatsApp* Name Company Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Send Now Submission successful! HVAC Fan Motor 220v 1285/1170/1065RPM Compact Structure 3 Speed Motor for Fan Coil Unit Motor \ FCU Motor Ask Latest Price Product Detail Place of Origin : Made in China Brand Name : CPMDJ Model Number : MODA2925BB02A Certification : CCC Supply Ability : 10000000 Packaging Details : Foam+Carton Contact Supplier $HVAC Fan Motor 220v 1285/1170/1065RPM Compact Structure 3 Speed Motor for Fan Coil Unit Motor \ FCU Motor$ $HVAC Fan Motor 220v 1285/1170/1065RPM Compact Structure 3 Speed Motor for Fan Coil Unit Motor \ FCU Motor$ $HVAC Fan Motor 220v 1285/1170/1065RPM Compact Structure 3 Speed Motor for Fan Coil Unit Motor \ FCU Motor$ Changzhou Changpeng Motor Co., Ltd. Active Member 6 Years jiangsu, changzhou Since 2009 Business Type : Manufacturer Main Products : Air Cooler Fan Motor, Air Conditioner Condenser Fan Motor, Centrifugal Fan Motor Total Annual : 1000000-80000000 Employee Number : 100~500 Certification Level : Active Member Discover similar products 25W YSK Fan Coil Unit Motor For HVAC System / Double Shaft FCU Fan Motor Contact Now Single Phase 220v Ac Copper Coil Fan Motor 25W 4 Poles For The End Of Central Contact Now Double Shaft 74 Watts Hvac Blower Fan Coil Unit Motor For Central Air Conditioni Contact Now Multi Usage AC Air Conditioning Unit Fan Motor 200W 220V 50/60Hz Contact Now Single Phase 115/208-230V 1/25hp Electric Fan Coil Unit Motor Central Air Contact Now 220v 50hz 35w 1200rpm Industrial Fan Coil Unit Motor Low Noise Small Vibration Contact Now Steel Cover Black Outdoor Fan Coil Unit Motor 1300rpm Customize Frequency Contact Now Constant Speed Ac Asynchronous Motor , Fan Motor For Ac Unit Fast Startup Contact Now YDK139 370w 6 Pole Ac Air Cooler Motor , Air Conditioner Blower Motor 50/60HZ Contact Now YDK110-25-4 0.8A Fan Coil Unit Motor Cast Aluminium Housing 880rpm Speed Contact Now View More Find Similar Products By Category: Supplier Homepage Products Fan Coil Unit Motor MachineU China Products Machinery Electric Equipment Making Machinery Transformer Making Equipment Coil Winding Machine Contact Supplier Message* Email* Phone or WhatsApp* Name Company Submit Requirement Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Submitted successfully! Your request message has been successfully sent to the supplier. Please keep in touch and they will contact you as soon as possible. OK China Hot Products: A \| B \| C \| D \| E \| F \| G \| H \| I \| J \| K \| L \| M \| N \| O \| P \| Q \| R \| S \| T \| U \| V \| W \| X \| Y \| Z \| 0~9 Copyright © 2009-2025 Machineu.com. All rights reserved. Copyright © 2009-2025 Machineu.com. All rights reserved.	140	0.64	940	≤46

Technical Parameters of Fan Coil Unit Motor FCU Motor:
