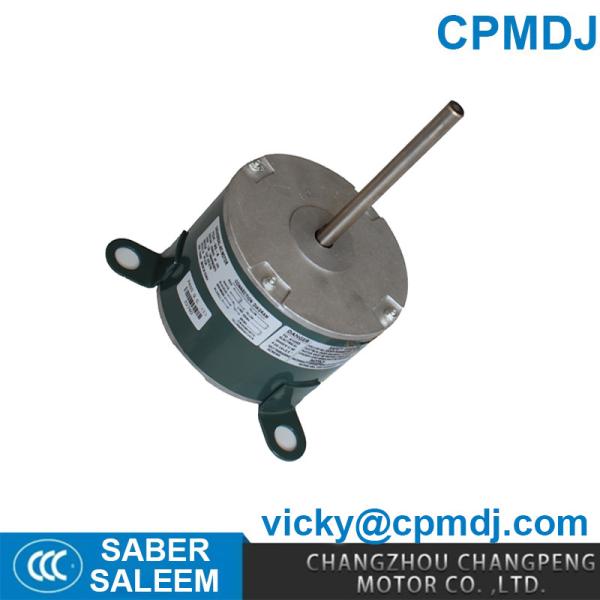

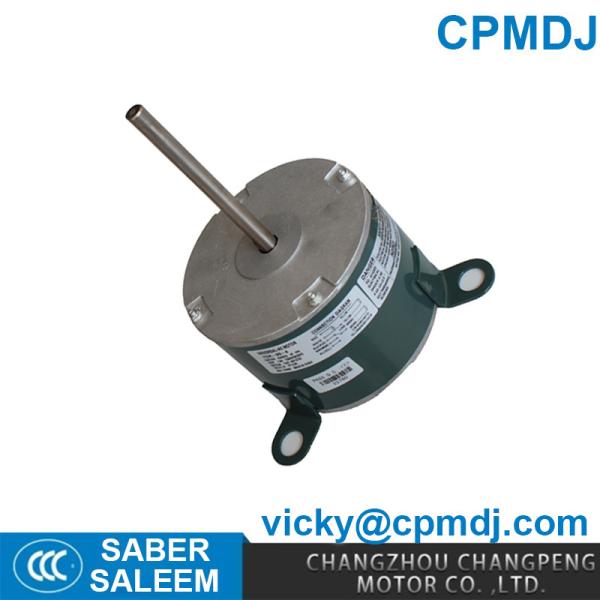

IE1 Efficiency 80W 4 Poles Condenser Home AC Exhaust Fan Motor
IE1 Efficiency 80W 4 Poles Condenser Home AC Exhaust Fan Motor
IE1 Efficiency 80W 4 Poles Condenser Home AC Exhaust Fan Motor
IE1 Efficiency 80W 4 Poles Condenser Home AC Exhaust Fan Motor
IE1 Efficiency 80W 4 Poles Condenser Home AC Exhaust Fan Motor
IE1 Efficiency 80W 4 Poles Condenser Home AC Exhaust Fan Motor
IE1 Efficiency 80W 4 Poles Condenser Home AC Exhaust Fan Motor
IE1 Efficiency 80W 4 Poles Condenser Home AC Exhaust Fan Motor
IE1 Efficiency 80W 4 Poles Condenser Home AC Exhaust Fan Motor
IE1 Efficiency 80W 4 Poles Condenser Home AC Exhaust Fan Motor
Specifications
Brand Name :
CPMDJ
Model Number :
YDK140-80-4
Certification :
CCC
Place of Origin :
Made in China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
10000000
Delivery Time :
15-35 days
Packaging Details :
Foam+Carton
Product name :
YDK140-80-4 Condenser Fan Motor For Air Conditioner Ac Dc Brushless Indoor Outdoor Unit Air Cooler Fan Motor
Model :
YDK140-80-4
Voltage :
220V, 60HZ, 3 phases
Power :
80W
Poles :
4
Insulation :
B
Efficiency :
IE 1
Protect Feature :
Enclosed
Description

YDK140-80-4 Condenser Fan Motor For Air Conditioner Ac Brushless Indoor Outdoor Unit Air Cooler Fan Motor

Product Feature
1.smooth running
2. long work times and Low temperature
3.low noise,steady performance
4.suitable for many occasions
5. energy-saving,short Delivery time
6.long life, high efficiency,low noise, high reliability

Specifications of Air Conditioner Blower Motor

1-Shaft dia or length can be any as customers needs.
2-Stator thickness can be any from 10mm to 50mm.
3-Mounting holes size and distance can be any as customers needs
4-Brackets can be either metal or aluminum. Its height can be changed.
5-Motor rotation direction can be CW or CCW.

6-The motors can be customized according to the different voltages, frequencies and rotation speed.

Model Voltage(V) Frequency Power Current(A) Rated speed (rpm) Capacitor
YDK110-8-6 220~240 50/60 8 0.12 700/560/450 1.2
YSK110-10-6 220~240 50/60 10 0.2 730/580/460 1
YSK110-12-6 220~240 50/60 12 0.17 750/600/480 1
YSK110-16-6 220~240 50/60 16 0.1 780/620/500 1.2
YSK110-20-6 220~240 50/60 20 0.2 830/660/520 2
YSK110-25-6 220~240 50/60 25 0.23 850/680/540 2
YD110-10-4 220~240 50/60 10 0.15 750/600/480 1.2
YSK110-16-4 220~240 50/60 16 0.17 800/640/510 1.5
YSK110-20-4 220~240 50/60 20 0.23 830/660/520 2
YSK110-25-4 220~240 50/60 25 0.27 850/680/540 2.5
YSK110-35-4 220~240 50/60 35 0.35 900/720/580 2.5
YDK110-16-4 220~240 50/60 16 0.17 800/640/510 1.5
YSK110-20-4 220~240 50/60 20 0.23 830/660/520 2
YSK110-30-4 220~240 50/60 30 0.3 880/700/560 2.5
YSK110-40-4 220~240 50/60 40 0.48 950/750/600 2.5
YSK110-45-4 220~240 50/60 45 0.55 980/780/630 3.5
YDK110-20-4 220~240 50/60 20 0.23 850/680/540 2
YSK110-25-4 220~240 50/60 25 0.27 880/700/560 2.5
YSK110-35-4 220~240 50/60 35 0.35 950/750/600 2.5
YSK110-40-4 220~240 50/60 40 0.48 1000/800/640 2.5
YSK110-50-4 220~240 50/60 50 0.6 1050/840/670 4
YDK110-25-4 220~240 50/60 25 0.27 880/700/560 2.5
YSK110-35-4 220~240 50/60 35 0.35 930/730/580 2.5
YSK110-40-4 220~240 50/60 40 0.48 980/780/630 2.5
YSK110-50-4 220~240 50/60 50 0.6 1050/840/670 4
YSK110-60-4 220~240 50/60 60 0.65 1100/950/750 3.5
YSK110-70-4 220~240 50/60 70 0.75 1200/900/700 3.5
YSK110-100-4 220~240 50/60 100 0.9 1300/1200/1000 5
YSK110-125-4 220~240 50/60 125 1 1400/1200/1000 5

IE1 Efficiency 80W 4 Poles Condenser Home AC Exhaust Fan Motor
