Bladeless 12025 DC Bracket Cooling Fan 110x23mm Plastic Material
Bladeless 12025 DC Bracket Cooling Fan 110x23mm Plastic Material
Bladeless 12025 DC Bracket Cooling Fan 110x23mm Plastic Material
Bladeless 12025 DC Bracket Cooling Fan 110x23mm Plastic Material
Bladeless 12025 DC Bracket Cooling Fan 110x23mm Plastic Material
Bladeless 12025 DC Bracket Cooling Fan 110x23mm Plastic Material
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Aidecoolr
Model Number :
CC12025(frameless) Ver. B
Packaging Details :
Bulk packaging
Supply Ability :
3000000 Piece/Pieces per Month
MOQ :
500
Price :
$1.90/pieces 1000-2999 pieces
Type :
Axial Flow Fan
Applicable Industries :
Other, Home appliance
Customized support :
OEM, ODM
Electric Current Type :
DC
Mounting :
mounting by screws
Blade Material :
Plastic
Voltage :
12V/18V/24V
Warranty :
1 Year
After-sales Service Provided :
Free spare parts
Bearing Type :
Sleeve or 2-Ball
size :
110mmx23mm
Noise level :
27-35dBA
Port :
shenzhen,Hongkong
Description
Aidecoolr 12025 bladeless fan ,size D 110x23mm frameless fan

Based on the information provided by the link you shared, the product appears to be a bladeless frameless fan with dimensions of 120x25mm and a thickness of 23mm.

The bladeless design can help reduce noise and increase airflow efficiency, making it ideal for use in applications where noise can be an issue. The product is made from durable materials and is designed to be compact and easy to install.

Overall, if you are in need of a bladeless frameless fan for your cooling application to help improve its cooling performance or airflow, this product might be worth considering.

However, it's important to do your own research and make sure that this product is compatible with your specific hardware and voltage requirements before making a purchase.

Parameters:

Model Bearing
Type		 Fan Type version Rated
Voltage		 current Speed Air Flow static Pressure Noise Level
vDc Amp RPM CFM MM-HO dBA
BF12025L12S Sleeve Frameless B 12V 0.11 1,400±10% 49.0 1.50 27.0
BF12025L12D 2-Bal
BF12025M12S Sleeve Frameless -8 12v 0.16 1,800±10% 61.0 2.30 31.0
BF12025M12D 2-Ball
BF12025H12S Sleeve Frameless B 12V 0.25 2,200±10% 73.0 3.10 35.0
BF12025H12D 2-Bal
BF12025L18S Sleeve Frameless -B 18v 0.08 1,400±10% 49.0 1.50 27.0
BF12025L18D 2-Ball
BF12025M16S Sleeve Frameless B 0.10 1,800+10% 31.0
BF12025M18D 2-Ball
BF12025H18S Sleeve Frameless -B 18v 0.15 73.0 3.10 35.0
BF12025H18D 2-Ball

Parts Specs:

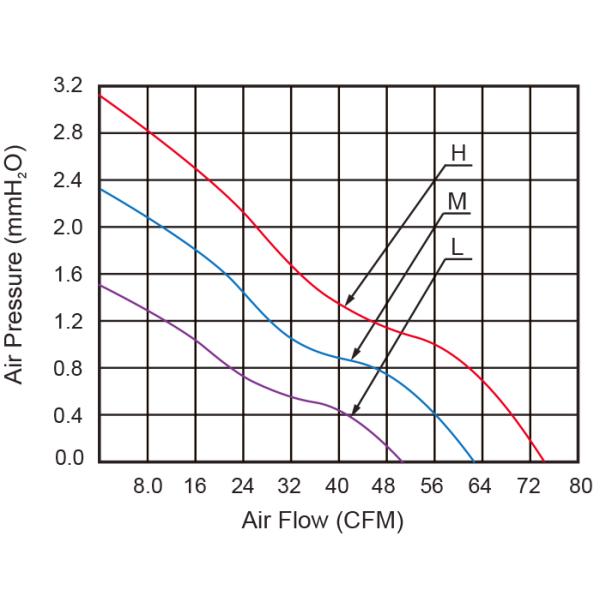

 P&Q Curve

Bearing type:Sleeve,2-Ball

Material:
Frame & Impeler:PBT

Lead wire:
UL2468 AWG #26 or equivalent
Red Wire Positive (+)
Black Wire Negative (-)

FG,PWM,RD,Protection functions are optional

5V,12V,24V are available

 Bladeless 12025 DC Bracket Cooling Fan 110x23mm Plastic Material

Electrical Specifications:

Insulation Resistance 10MΩ/between unshackled wire and frame at 500VDC/min
Dielectric Strength 5Ma Max./Measured between lead wire(+)and frame at 500VAC/min
Rotating Direction Anti-Clockwise
Polarity Protect Circuit is protected when VCC&GND are exchanged
No. of pole 4Poles
Bladeless 12025 DC Bracket Cooling Fan 110x23mm Plastic Material

Environmental Specifications

Operating Temp Range Temperature:-10℃~+70℃
Humidity:35%~85%RH
Store Temperature Temperature:-40℃~+70℃
Humidity:35%~85%RH
Thermal Shock Standard:MIL-STD 202F Method 107D,Condition D
Insulation Shock UL:Class A

FCL Shipment LCL Shipment
Bladeless 12025 DC Bracket Cooling Fan 110x23mm Plastic Material Bladeless 12025 DC Bracket Cooling Fan 110x23mm Plastic Material

Air shipment:

Bladeless 12025 DC Bracket Cooling Fan 110x23mm Plastic Material

FAQ

Lifetime:

Bearing type Lifetime
Sleeve 30,000 hours
Hydraulic 40,000 hours
2-Ball 60,000 hours
