Plastic BF5008 Cooling Blower Fan 5V 12V 24V 50x50x80mm Practical
Plastic BF5008 Cooling Blower Fan 5V 12V 24V 50x50x80mm Practical
Plastic BF5008 Cooling Blower Fan 5V 12V 24V 50x50x80mm Practical
Plastic BF5008 Cooling Blower Fan 5V 12V 24V 50x50x80mm Practical
Plastic BF5008 Cooling Blower Fan 5V 12V 24V 50x50x80mm Practical
Plastic BF5008 Cooling Blower Fan 5V 12V 24V 50x50x80mm Practical
Plastic BF5008 Cooling Blower Fan 5V 12V 24V 50x50x80mm Practical
Plastic BF5008 Cooling Blower Fan 5V 12V 24V 50x50x80mm Practical
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Aidecoolr
Model Number :
BF5008
Packaging Details :
Bulk packaging,polybag packaging,blister,color box
Supply Ability :
3000000 Piece/Pieces per Month
MOQ :
500
Price :
$2.00/pieces 1000-2999 pieces
Type :
Centrifugal Fan
Applicable Industries :
Auto, Power Supply, 3D Printer
Electric Current Type :
DC
Blade Material :
Plastic
Mounting :
device fan
Voltage :
5V/12V/24V
After-sales Service Provided :
Free spare parts
Bearing type :
Hydraulic
Noise level :
28-38dBA
Port :
shenzhen,Honhgkong
Description
Aidecoolr BF5008 blower fan,50x50x80mm,suitable for automotive wireless charger,3D printer

Dimensions:

Based on the information provided by the link you shared, the product appears to be a blower fan with dimensions of 50x50x80mm, designed for use in automotive wireless chargers and 3D printers.

The product is made from durable materials and is designed to be easy to install. It can help improve the cooling performance or airflow of your equipment or device.

Overall, if you are in need of a blower fan to help improve the cooling performance or airflow in your automotive wireless charger or 3D printer, this product might be worth considering.

However, it's important to do your own research and make sure that this product is compatible with your specific hardware and voltage requirements before making a purchase.

Model Bearing
Type		 Rated
Voltage		 Operation
Voltage		 current lnput Power Speed Air Flow Static Pressure Noise Level
vDc voc Amp Watt RPM CFM MM-HO dBA
BF5008L05SH Hydraulic 5V 4.5~5.5 0.10 0.50 4,000±10% 2.60 8.00 28.0
BF5008M05SH Hydraulic 5v 4.5~5.5 0.19 0.95 5,000±10% 3.40 11.4 33.0
BF5008H05SH Hydraulic 5v 4.5~5.5 0.36 1.80 6,000±10% 4.20 19.0 38.0
BF5008L12SH Hydraulic 12V 10.8~13.2 0.05 0.60 4,000±10% 2.60 8.00 28.0
BF5008M12SH Hydraulic 12V 10.8~13.2 0.15 1.80 5.000±10% 3.40 114 33.0
BF5008H12SH Hydraulic 12v 10.8~13.2 2.76 6,000±10% 19.0 38.0

Parameters:Plastic BF5008 Cooling Blower Fan 5V 12V 24V 50x50x80mm Practical

Parts Specs:

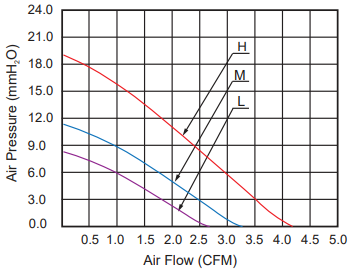

 P&Q Curve

Bearing type:Hydraulic

Material:
Frame & Impeler:PBT

Lead wire:
UL2468 AWG #26 or equivalent
Red Wire Positive (+)
Black Wire Negative (-)

FG,PWM,RD,Protection functions are optional

5V,12V,24V are available

 Plastic BF5008 Cooling Blower Fan 5V 12V 24V 50x50x80mm Practical

Electrical Specifications:

Insulation Resistance 10MΩ/between unshackled wire and frame at 500VDC/min
Dielectric Strength 5Ma Max./Measured between lead wire(+)and frame at 500VAC/min
Rotating Direction Anti-Clockwise
Polarity Protect Circuit is protected when VCC&GND are exchanged
No. of pole 4Poles

Environmental Specifications

Operating Temp Range Temperature:-10℃~+70℃
Humidity:35%~85%RH
Store Temperature Temperature:-40℃~+70℃
Humidity:35%~85%RH
Thermal Shock Standard:MIL-STD 202F Method 107D,Condition D
Insulation Shock UL:Class A

Packaging & Shipping

FCL Shipment LCL Shipment
Plastic BF5008 Cooling Blower Fan 5V 12V 24V 50x50x80mm Practical Plastic BF5008 Cooling Blower Fan 5V 12V 24V 50x50x80mm Practical

Air shipment:

Plastic BF5008 Cooling Blower Fan 5V 12V 24V 50x50x80mm Practical

FAQ

Lifetime:

Bearing type Lifetime
Sleeve 30,000 hours
Hydraulic 40,000 hours
2-Ball 60,000 hours
