40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger
40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger
40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger
40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger
40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger
40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger
40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger
40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Aidecoolr
Model Number :
BF4010
Packaging Details :
Bulk packaging,polybag packaging
Supply Ability :
3000000 Piece/Pieces per Month
MOQ :
500
Price :
$1.90/pieces 1000-2999 pieces
Type :
Centrifugal Fan
Applicable Industries :
Ventilation, Charger
Customized support :
OEM, ODM
Electric Current Type :
DC
Blade Material :
Plastic
Mounting :
Mounting by screws
Voltage :
5V/12V/24V
Warranty :
1 Year
After-sales Service Provided :
Free spare parts
Size :
40x40x10mm
Bearing Type :
Sleeve or 2-Ball
Port :
Shenzhen,Hongkong
Description

40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger

Based on the information provided by the link you shared, the product appears to be a small blower fan with dimensions of 50x50x15mm, designed for use in bidets, air purifiers, and 3D printers.

The compact size and efficient design make it ideal for use in applications where space is limited and noise reduction is important.

The product is made from durable materials and is designed to be easy to install.

Overall, if you are in need of a small blower fan to help improve the cooling performance or airflow in your bidet, air purifier, or 3D printer, this product might be worth considering.

However, it's important to do your own research and make sure that this product is compatible with your specific hardware and voltage requirements before making a purchase.

Model Bearing
Type		 Version Rated
Voltage		 current lnput Power Speed Air Flow Static Pressure Noise Level
vDC Amp Watt RPM CFM MM-Ho dBA
BF4010LO5S Sleeve -A sv 0.07 0.35 5.500±10% 1.60 3.10 24.0
BF4010LO5D 2-Ball
BF4010M05S Sleeve -A 5V 0.10 0.50 6,500±10% 1.92 4.50 27.0
BF4010M05D 2-Ball
BF4010HO5S Sleeve -A 5v 0.14 0.70 7,500±10% 5.70 30.0
BF4010H05D 2-Ball
BF4010L12S Sleeve -A 12V 0.03 0.36 5,500±10% 1.60 3.10
BF4010L12D 2-Ball
BF4010M12S Sleeve -A 12V 0.05 0.60 6.500±10% 1.92 4.50
BF4010M12D 2-Ball
BF4010H12S Sleeve -A 12V 0.06 0.72 7,500±10% 5.70 30.0
BF4010H12D 2Ball

Parameters:

Parts Specs:

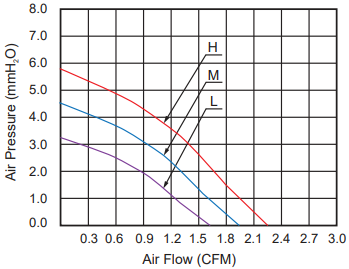

 P&Q Curve

Bearing type:Sleeve,2-Ball

Material:
Frame & Impeler:PBT

Lead wire:
UL2468 AWG #26 or equivalent
Red Wire Positive (+)
Black Wire Negative (-)

FG,PWM,RD,Protection functions are optional

5V,12V,24V are available

 40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger

Electrical Specifications:

Insulation Resistance 10MΩ/between unshackled wire and frame at 500VDC/min
Dielectric Strength 5Ma Max./Measured between lead wire(+)and frame at 500VAC/min
Rotating Direction Anti-Clockwise
Polarity Protect Circuit is protected when VCC&GND are exchanged
No. of pole 4Poles

Environmental Specifications

Operating Temp Range Temperature:-10℃~+70℃
Humidity:35%~85%RH
Store Temperature Temperature:-40℃~+70℃
Humidity:35%~85%RH
Thermal Shock Standard:MIL-STD 202F Method 107D,Condition D
Insulation Shock UL:Class A

40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger

Packaging & Shipping
FCL Shipment LCL Shipment
40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger 40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger

Air shipment:

40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger

FAQ

Lifetime:

Bearing type Lifetime
Sleeve 30,000 hours
Hydraulic 40,000 hours
2-Ball 60,000 hours
