Specifications
Brand Name :
Aidecoolr
Model Number :
CC-BW10A
Place of Origin :
Guangdong, China
Packaging Details :
Brown Box or Color Box
Supply Ability :
500000 Piece/Pieces per Month
MOQ :
500
Price :
$2.70 - $3.80/pieces
Type :
Heatsink
Heatsink Material :
Aluminum
Application :
Processor
Heatsink Size :
92*92*13T
Fan Size :
80*80*15MM
Suitability :
LGA1150/LGA1155/LGA1156
Noise level :
max 42dBA
Port :
Shenzhen,HongKong
Description

Aidecoolr CPU cooler fan for LGA 1150/1155/1156 ,ALUMINIUM HEATSINK92*92*13T,80*80*15mm Fan

Based on the information provided by the link you shared, the product appears to be a CPU cooler. Specifically, it is an AIDECOOLR CC-SW37A CPU cooler designed for LGA1155/1156 CPUs.

The product features a PWM function and an aluminum heatsink with dimensions of 92x92x25mm, which is designed to help dissipate heat generated by the CPU during operation. The product is compatible with a variety of different LGA1155/1156 CPU models and is easy to install.

The fan is powered by a 12V DC power source and has a maximum speed of 2200 RPM, providing sufficient cooling for most LGA1155/1156 CPUs.

The product is suitable for use in both home and office computer applications.

Overall, if you are in need of a reliable and effective CPU cooler for your LGA1155/1156 CPU, this product might be worth considering. However, it's important to do your own research and make sure that this product is compatible with your specific hardware before making a purchase.

Fan Specifications:

our company

With years of export experience along with excellent quality, advanced services and competitive prices, Coolcox has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Coolcox has won numerous customers' trust and support.

More shipping and delivery information :

1.The sample will be shipped by express, like FEDEX, DHL, UPS and EMS. And the freight should be paid by clients.

2.DHL,UPS,FEDEX,TNT or any other international express for sample or small quantity.

3.Usually,the mass order will be shipped by sea.

4.Anyway,the more details can be discussed.Practical Computer CPU Cooling Fan Multipurpose Fit LGA 1150/1155/1156

Fan Model cc8015H12D PWM
Dimension 80*80*15 MM
Voltage 12V(10.8-13.2V)
Power consumption DUTYCYCLE=100%3.84W
DUTY cYCLE=0%0.6ow
Rated current DUTYcYCLE=100%0.32+0.02A
DUTY cYCLE=0%0.05A+0.02A
Speed DUTY CYCLE=100%4000+10%RPM
DUTY CYCLE=0%1500+20ORPM
At 25℃,After 3~5 minutes rotating
(Fan alone)
Air flow DUTY CYCLE=100%41.6CFM
DUTY CYCLE=0%15.6 CFM
Air Pressure DUTY CYCLE=100%3.5mm-H20
DUTY CYCLE=0%0.9 mm-H2O
Noise DUTYCYCLE=100%42dBA (max)
Bearing 2-Ball Bearing
Lead Wire UL1007 28# L=200+10MM
BLACK(-)
YELLOW()
GREEN(FG)
BLUE(PWM)
connector 2510-4PIN

Heatsink Specifications:

SIZE
SIZE 93*92*13T
Material Aluminum 6063
color silver

CC9225M12S PWM Test Records:

Practical Computer CPU Cooling Fan Multipurpose Fit LGA 1150/1155/1156

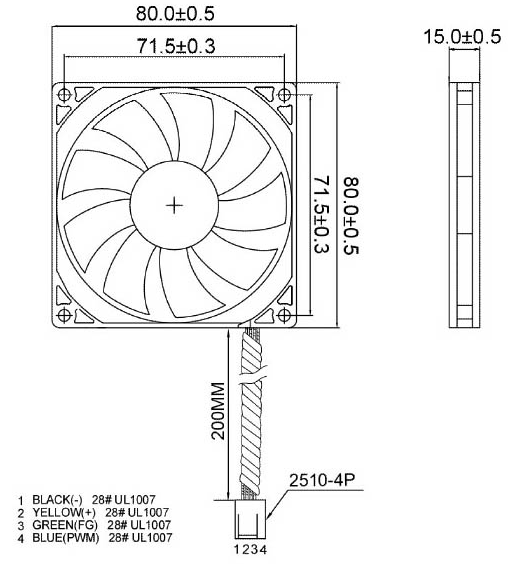

Fan Dimensions:Heat Sink Dimensions:

Practical Computer CPU Cooling Fan Multipurpose Fit LGA 1150/1155/1156Practical Computer CPU Cooling Fan Multipurpose Fit LGA 1150/1155/1156Practical Computer CPU Cooling Fan Multipurpose Fit LGA 1150/1155/1156
