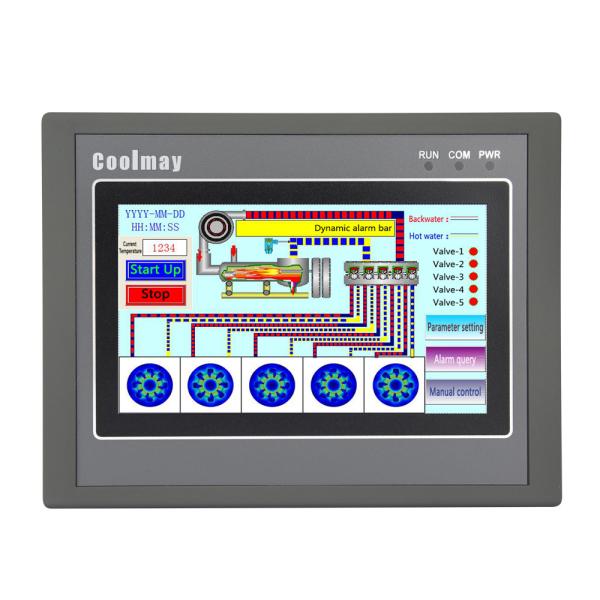

4.3Inch Analog Control HMI PLC All In One For Agricultural Irrigation

Coolmay HMI/PLC all-in-one machine has innovatively realized the high integration of HMI and PLC switch, analog and temperature in hardware. It can be used in various occasions requiring PLC control without external PLC and other expansion modules. The highly integrated industrial automation control solution uses pluggable terminals, which greatly facilitates the disassembly, installation and maintenance of terminal customers. It can be replaced directly when it fails, achieving "zero travel expenses" and free on-site maintenance.

Parameter:

Feature:

1. Structure
Highly integrated, compact structure, cost saving and space saving.

2. Programming Software
HMI: Adopts CoolMayHMI touch screen programming software.
PLC: Compatible with Mitsubishi Works 2/ GX Developer 8.86.

3. Input
Digital input: 12 channels digital input.
Analog input: 4 AD inputs can be installed.
Optional: E/K/S/T/J thermocouple/PT100/PT1000/NTC10K/NTC50K/NTC100K/ 0~10V/0~5V/0~20mA/4~20mA or mixed type and other special specifications (thermocouple supports negative temperature).

4. High-speed counting input
Single phase 6 channels 10KHz high-speed counting or 3 channels AB phase 10KHz or 2 channels ABZ phase plus 1 channel AB phase 10KHz.

5. Output
Digital output: 12 channels digital outputs (Y0~Y3 are MOS tubes).
Option: Relay(MR) or MOS(MT); Relay output: max load 5A, MOS output: max load 2A.
Analog quantity: 2 DA outputs can be installed. Option:0~10V /0~5V/ 0~20mA/ 4~20mA or mixed.

6. High-speed pulse output
Support 8 channel 10 KHz pulse output.

7. Communication
Support RS232 communication, and optional RS485/CAN/WIFI/network port (support Mitsubishi programming port protocol/MODBUS protocol/RS protocol/BD board protocol).

8. Program encryption
Support PLC special encryption, completely prohibit reading programs, and protect users’ intellectual property rights.

Introduction of each interface and indicator

POWER: Power indicator, connected to the power light

RUN: PLC running status indicator. This light is on when the PLC is running.

COM: touch screen and PLC communication status indicator, when the two communicate, the light is on

Power terminal: The positive and negative terminals of the DC24V switching power supply are respectively connected to the DC24V and 0V of the power supply terminal.

PLC programming port: two PLC programming ports (MiniB type usb port / RS232), PLC program can be downloaded through 232 programming line or USB cable download

Touch screen programming port: download touch screen configuration program

USB interface: mainly can be directly inserted into the U disk of the file system FAT 32, can also be inserted into the mouse.
