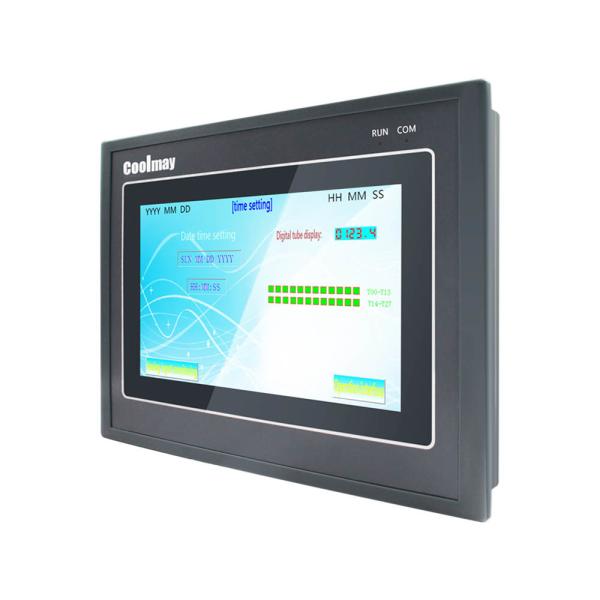

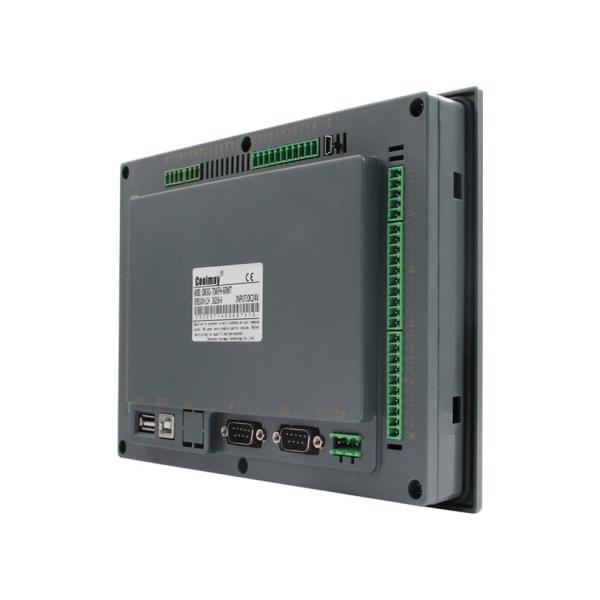

Resistive IP65 64MB HMI PLC All In One For Pallet Washing Machine
Resistive IP65 64MB HMI PLC All In One For Pallet Washing Machine
Resistive IP65 64MB HMI PLC All In One For Pallet Washing Machine
Resistive IP65 64MB HMI PLC All In One For Pallet Washing Machine
Specifications
Brand Name :
Coolmay
Model Number :
QM3G-70KFH
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Details Need To Be Negotiated
Payment Terms :
T/T,Paypal, Western Union, Credit Card
Supply Ability :
1500 pcs per week
Delivery Time :
within 3 working days after payment confirmed
Packaging Details :
Carton
size :
7 inch
digital points :
max 30DI/30DO
analog points （Optional） :
max 16AI/8AO
Analog type :
temperature/Voltage/Current
high speed pulse :
support
high speed counting :
support
Ethernet :
Optional
WIFI :
Optional
Description

Resistive IP65 64MB HMI PLC All In One For Pallet Washing Machine

Resistive Touch Screen Display Built-in PLC 7 Inch HMI PLC All in One Modbus Protocal Different Analog

Packing List

  • 1*HMI PLC All-in-One
  • 1*Free HMI Downloading cable
  • 1*Free PLC Progamming cable

Features:

  1. Integrate logic control, analog input and output, and HMI functions in one.
  2. Support high-speed counting,high speed pulse,communication port integrated.
  3. Support arc and linear interpolation

Paramaters of HMI Part:

size of HMI: 7 inch

cutout size: 217*154mm

Resoution:800*480

RAM:NOR Flash 16MB

ROM:64MB

CPU:32bit CPU 408MHz

com ports:1*type B download port, 1*RS232

Software: mView

Paramters of PLC Part:

Digital I/O: Max 30DI/30DO(Max 28R)

I/O level: default NPN input and output, MR can be customized PNP input PNP output, MT can be customized PNP input and NPN output

DO type: transistor(MT) or relay(MR) or mixed(MRT)

Analog I/O(optional): max 16AI/8AO

AI(Optional):

Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed

AO(Optional):

0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/-5~5V/ -10~10V (2AO for 1 minus voltage)

com port:1*mini USB,1*RS485,1*RS232

software: WORKS 2/ GX developer 8.86

We are committed to providing you with a variety of solutions (Communication Port, Analog, Temperature,Weighing, etc.)

Resistive IP65 64MB HMI PLC All In One For Pallet Washing Machine

Resistive IP65 64MB HMI PLC All In One For Pallet Washing Machine

Resistive IP65 64MB HMI PLC All In One For Pallet Washing Machine

Resistive IP65 64MB HMI PLC All In One For Pallet Washing Machine

Model
QM3G-70KFH
Dimension
226*163*35.6mm
Cutout size
217*154mm
Power
Consumption
6-7W
HMI
Feature
60K-color resistive touch screen, supports portrait display
Type
7.0"TFT
Display size
154*87mm
Resolution
(pixels)
800*480
RAM
NOR Flash 16MB
ROM
 64MB
CPU
32bit CPU 408MHz
Default
Type-B HMI download port (can download PLC program
through the USB penetrating function), RS232
Optional com port
1 RS485 (changed from default RS232)
software
Coolmay mView HMI Programming Software
PLC
I/O
Max 30DI/30DO (max 28MR)
I/O level
Input: Passive NPN, public terminal isolated
Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact
DO type
Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT)
(Relay output: max load 5A/ transistor output: max load 500mA)
High-speed
counting
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,
or 2 ABZ 60KHz + 1 AB phase 10 KHz
High-speed pulse
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.
High-speed counting + high-speed pulse < 480KHz
Default
programming port
1 Mini USB, 1 RS232
Optional COM port
1 Rs485 or 2 Rs485 COM ports (one is changed from the
default Rs232 port)
CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232 port)
Analog I/O
(optional)

Max 16AI/8AO
AI type (optional)
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
AO type (optional)
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/
-5~5V/ -10~10V (2AO for 1 minus voltage)
Software
Compatible with Mitsubishi GX Developer 8.86 and WORKS 2

Real Application

Resistive IP65 64MB HMI PLC All In One For Pallet Washing Machine

Resistive IP65 64MB HMI PLC All In One For Pallet Washing Machine
