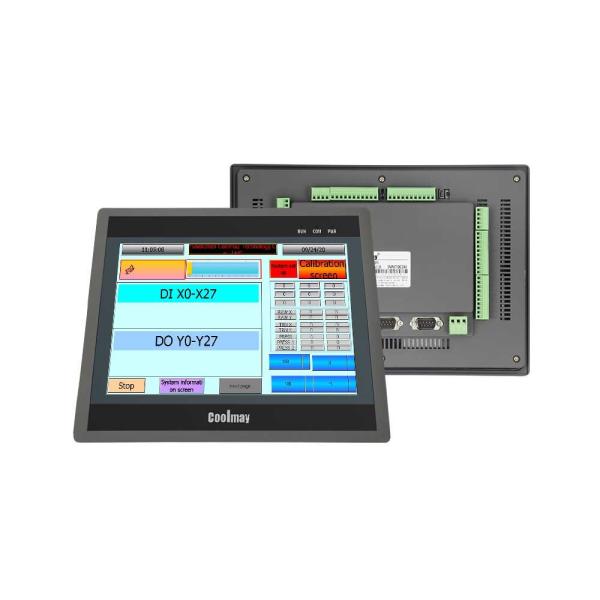

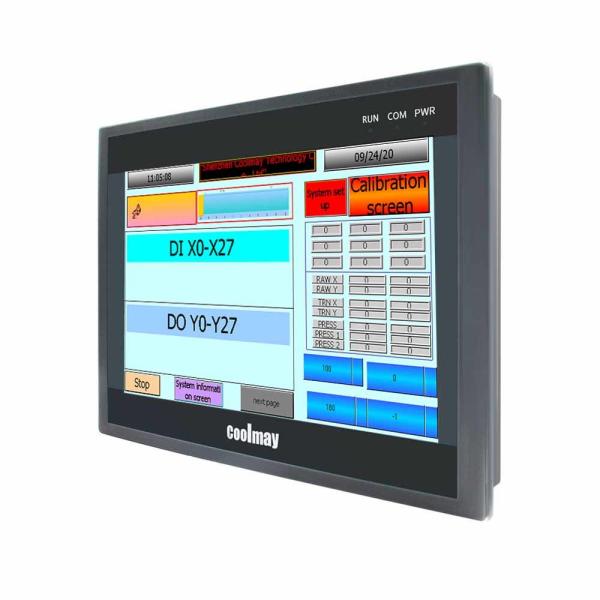

10 Inch Integrated HMI PLC 60K Color Resistive Small PLC With Display

Integrated HMI PLC 32bit CPU 408MHz Programmable Logic Controller 60K-Color ResistiveTouch Screen

The all-in-one solution is to integrate the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication port into a compact unit to meet the needs of customer equipment automation control.

Parameter:

Advantage:
Post-retail cost
- Based on an all-in-one design, all control elements are integrated into one unit,and the product uses pluggable terminals.
- Users only need to replace the all-in-one machine to solve the problem, simpleand convenient.
- All maintenance can be carried out remotely, without the need for professionaltechnicians to come to service, thereby savingtravel expenses.

Post-retail labor cost
- All maintenance problems of the device can be completed by the user without the need of standing professional after-sales personnel.

Zero development cost
- Coolmay research and development does not require software development, only hardware design, no manpower and material costs.

Zero development time
- Normal project development must start from the first code, but Coolmay only needs to adjust the hardware slighty.Under normal circumstances, it can be completed within a week.
- All products have been tested by the market for more than ten years, and their reliability has been recognized by customers.
- General development requires multiple experiments to succeed. But Coolmay is based on 15 years of technology precipitation, and usually the development project can be completed once.

◆ Upper computer programming software compatible with Works 2/GX Developer8.86 (supports Ladder diagram and SFC language, does not support structured programming/labels).
◆ Powerful, compatible with FX3G/FX3U/FX3S PLC, high processing speed.
◆ Military level 32 bit CPU adopted, which is faster and more adapted to industrial environment of high electromagnetic interference.
◆ Special encryption, prevent illegal reading thoroughly. 8-bit encryption, 12345678 as password can thoroughly prevent reading of ladder logic program.
◆ Clock supported, rechargeable battery adopted.
◆ Default with 1 HMI download port, 2 PLC programming ports (RS232/MiniB USB port or Type-C), and one USB port.
◆ Support Mitsubishi programming protocol/MODBUS protocol/RS protocol/BD board protocol, easily realize PLC interconnection and communication with external devices.
◆ Convenient wiring. All wiring terminals adopt 3.81 pitch pluggable terminals, which is convenient for customers to use.
◆ Flexible use. More specifications and batches can be customized according to customer requirements.
◆ 32K program capacity, 32K retentive register, support interrupt, linear arc interpolation ,PID auto-tuning, high powerful.
◆ The PLC is compatible with Mitsubishi programming software, and the HMI uses TK series human-machine interface programming software mView.

Application scenario:

Food packaging machinery, electronic manufacturing equipment, printing machinery, textle machinery, medical machinery testing machinery, wind powerequipment,engineering machinery, plastic machinery tobacco machinery, agriculture, forestry and animal husbandry (aquaculture), environmental protec-tion equipment, automobile manufacturing,AGV trolleys,logistics storage equipment...
