Anti Corrosion 4.3 Inch Modbus HMI Touch Screen Panel 72mA 24V

4.3 Inch HMI Modbus Master Slave IP65 TFT Human Machine Interface

Specification:

Upgraded hmi device.

Support almost all lanaguge, and fonts.

Keyboard using, Gesture operation etc are available.

Different size available :

3.5 inch , 4.3 inch, 5 inch, 7 inch, 10 inch, 15 inch.

Features:

1. IP65 Panel protection grade, 65K TFT
   Brand new high-brightness,high-contrast display LCD, providing colorful operation interface.

2. Optional WIFI
   802.11b/g/n wireless communication standard protocol; convenient upload/download function of configuration software via network cable.

3. Thin and light embedded

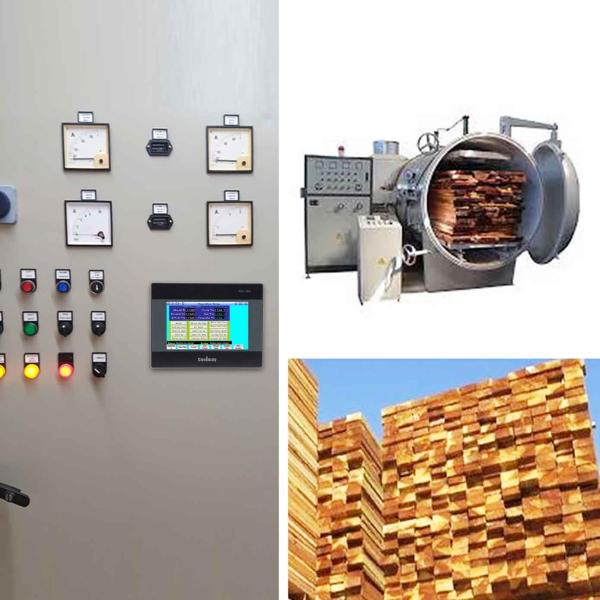

   Can be easily installed in various complex industrial application environments.

4. Conformal coating protection for motherboard

   In various harsh industrial environments, it is more effective against shock, moisture,high and low temperature, and chemical corrosion.

   Model	TK6043FH
   Cutout size	120*94mm
   Display	4.3" TFT
   Resolution	480*272
   Brightness	400cd/m²
   Backlight time	60,000 hours
   Display color	65536 colors
   ROM	NOR Flash 8MB
   RAM	64MB
   CPU	32bit CPU 408MHz
   Download port	Type-C
   COM port	1 RS232, 1 RS485
   Protocol	Support MODBUS, free port and common PLC communication Protocol
   Calendar	Yes
   Input Voltage	12-24VDC±10%<150mA @ 24VDC
   Protection Class	IP65 (front panel)
   Temperature	Ambient environment: 0~50℃ | Storage environment: -20~70℃
   Humidity	20%~90% RH
   Language	Almost all
