12DI 12DO Industrial Control PLC Programming For Industrial Automation
12DI 12DO Industrial Control PLC Programming For Industrial Automation
12DI 12DO Industrial Control PLC Programming For Industrial Automation
12DI 12DO Industrial Control PLC Programming For Industrial Automation
Specifications
Brand Name :
Coolmay
Model Number :
L02M24T
Certification :
CE
Place of Origin :
China
MOQ :
2 pcs
Price :
79~139
Payment Terms :
T/T, Western Union
Supply Ability :
100,000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
Packed with standard carton box
Capacity :
32K steps
Digital I/O :
12DI/12DO
Analog I/O :
4AD/4DA
Max I/O :
512 points
PWM :
Yes
PID :
Yes
Ethernet :
RS45
Software :
GX Works2
Description

12DI 12DO Industrial Control PLC Programming For Industrial Automation

Industrial Control PLC 24VDC Input Digital Programmable Controller 12DI 12DO 4AI 4AO Ethernet RS485 Monitor

Coolmay L02 series PLC is a high-function general-purpose controller specially designed for automation equipment. L02 series modules can be expanded up to 31 units. The L02 series host has a built-in communication network and communicates with the Ethernet/IP industrial network to realize high-speed data transmission.

Specifications

Model LO2M24T
Programming language Ladder diagram(LD) / lnstruction list / Sequential function chart(SFC)
Program capacity 32k steps
Expansion model Max limit of 31 units: max 12 analog input/output respectively
Max l/O FX3U mode: 512 points; FX3G mode: 256 points (the sum of input and output points)
CPU Digital I/O 12DI/ 12DO
CPU analog I/O 4AD/4DA
16-bit counter C [CO~C15] 16points General
32-bit counter C [C220~C234] 15points Retentive
[C235~C245 Single phase single counting][C246~C250 single phase double counting]
[C251~C255 Two-phase double counting]
High-speed pulse 4-axis 200KHz+4-axis 100KHz
High-speed counter 6 channels 60KHz
Do type Transistor output, load maximum 500mA, low level NPN, COM connected to negative
Default COM Type-C, RS-232, RS-485*2, Ethernet, CAN
Protocol

Programming port Modbus RTU, Modbus TCP, Modbus UDP,

freeport protocol, CAN, Ethernet/IP, BD board
Rated input voltage 24VDC(土10%)
Software Compatible with GX WORKS 2

Integratred host design

L02 host motion controller has built-in multiple l/O and communication interfaces, which can meet the market demand for compactness, high performance and high value.

12DI 12DO Industrial Control PLC Programming For Industrial Automation

CPU performance

  • Maximum I/O: 512 points
  • Program capacity: 32k steps
  • Data storage: 32k words
  • Maximum expansion module: 31 units

12DI 12DO Industrial Control PLC Programming For Industrial Automation

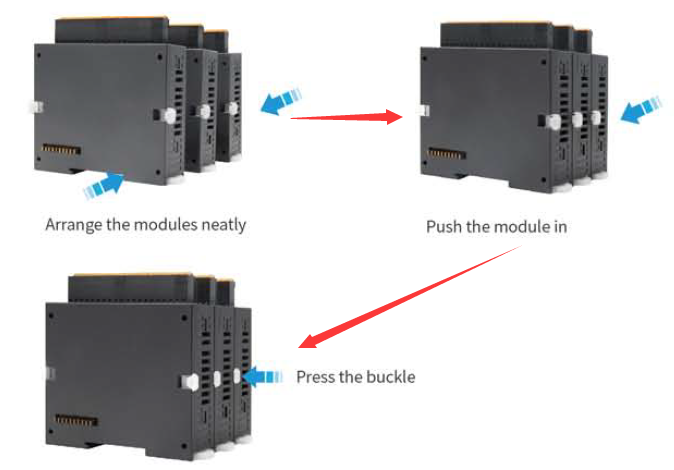

Easy installation


Open the white buckle, align the expansion interface and push the module directly in, press the white buckle at both ends to complete the installation.

12DI 12DO Industrial Control PLC Programming For Industrial Automation
