Small Size Plc Wifi Module 300MW Transmission Power For Remote Device Monitoring
Small Size Plc Wifi Module 300MW Transmission Power For Remote Device Monitoring
Small Size Plc Wifi Module 300MW Transmission Power For Remote Device Monitoring
Small Size Plc Wifi Module 300MW Transmission Power For Remote Device Monitoring

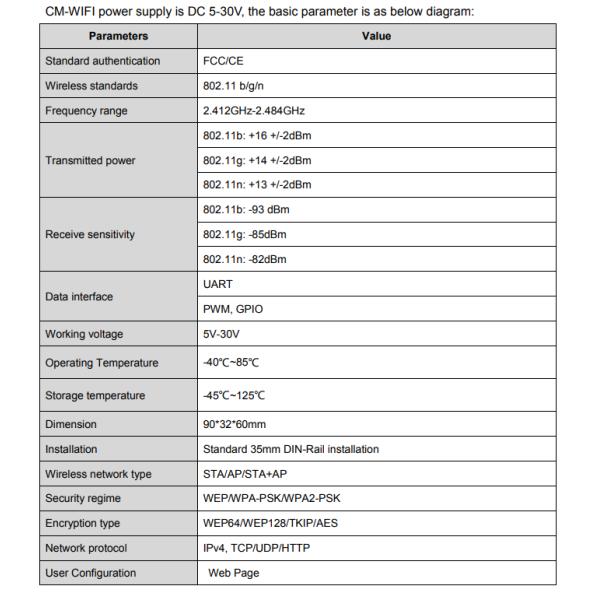

Specifications
Brand Name :
Coolmay
Model Number :
CM-WIFI
Certification :
CE
Place of Origin :
China
MOQ :
1 peice
Price :
USD 22~28 per peice
Payment Terms :
T/T, Western Union, MoneyGram, PayPal, Alipay
Supply Ability :
2000 pcs per day
Delivery Time :
3-7 working days after payment done
Packaging Details :
Carton Box
Dimension :
90*60*32mm
Installation :
Standard guide rail installation and can be installed on NS35/7.5 or NS32 guide slot
Frequency range :
2.412GHz ~ 2.484GHz
Network standards :
802.11 b/g/n
Data interface :
RS232, RS485 300bps～460800bps
Network type :
STA/ AP/ STA + AP
Network protocol :
IPv4, TCP/ UDP/ HTTP
Transmit power :
300~460800bps
Description

Small Size Plc Wifi Module 300MW Transmission Power For Remote Device Monitoring

Wireless WIFI Industrial IoT Module 300MW Transmission Power Remote Device Monitoring Module

CM-WIFI is compact and powerful network modules developed by Coolmay.

1. It transparently transmits network data packets and RS232/RS485 interface data.

2. 300MW transmission power, easy to cover 100 meters of site, can realize wireless. Programming/debugging/monitoring in any corner .

3. Completely replaces wired cable, communication between serial devices (PLC/HMI /instrument, etc.) and computers (host computer) or serial ports can be realized.

4. Cross-regional connectivity, easily control serial devices (PLC/HMI/instrument, etc.) remotely at home or office.

5. More convenient if used together with Coolmay PLC( Control via APP accepted).

Main Application Areas CM-WIFI can be widely used in the following area.

● Remote device monitoring

● Internet of things application

● Industrial control

● Handheld device

Small Size Plc Wifi Module 300MW Transmission Power For Remote Device Monitoring

Model CM-WIFI CM-GPRS

CX-GPRS-G

(supports GPS location)

 CX-WIFI-2NET CX-4G

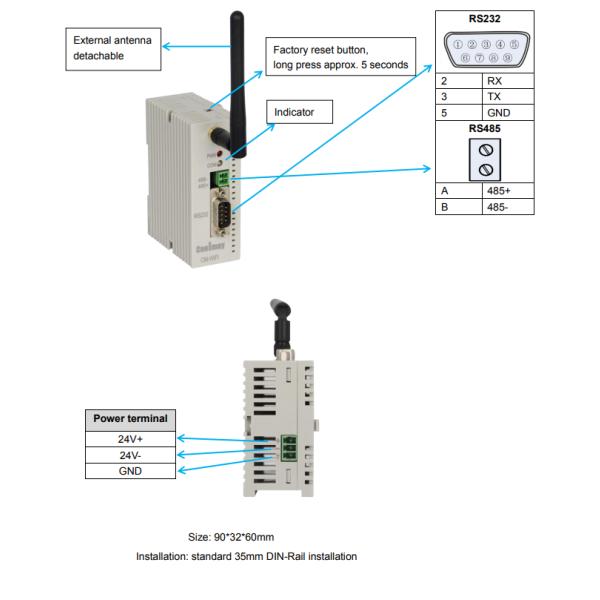

Installation Standard guide rail installation and can be installed on NS35/7.5 or NS32 guide slot
Dimension 90*60*32mm 65*90*36mm
Wiring Power and RS232/485 applies pluggble terminals
Frequency range 2.412GHz ~ 2.484GHz 850/ 900/ 1800/ 1900MHz GSM 850/ 900/ 1800/ 1900MHz GSM 2.412 GHz~2.484 GHz 5 modes 12 channels
Network standards 802.11 b/g/n GSM/ GPRS/ EDGE GSM/ GPRS/ EDGE 802.11 b/g/n TDD-LTE/ FDD-LTE WCDMA/ TD-SCDMA/ GSM/ GPRS/ EDGE
Data interface RS232, RS485
300bps～460800bps		 RS232, RS485
2400bps～921600bps		 RS232, RS485
2400bps～921600bps

RS232, RS485

300bps~460800bps
Ethernet: 100Mpbs

RS232, RS485

300~230400bps
Network type STA/ AP/ STA + AP GSM/ GPRS/ EDGE GSM/ GPRS/ EDGE Station/ AP mode TDD-LTE/ FDD-LTE WCDMA/
TD-SCDMA GSM/ GPRS/ EDGE
Network protocol IPv4, TCP/ UDP/ HTTP TCP/ UDP/ DNS/ HTTP TCP/ UDP/ DNS/ HTTP TCP/ UDP/ ARP/ ICMP/ DHCP/ DNS/ HTTP TCP/ UDP/ DNS/ HTT
User configuration Web page/ Serial port AT command

Serial port/ network/ message AT instruction

(configuration software is offered)

Serial port/ network/ message AT instruction

(configuration software is offered)

 Web server/ AT instruction

Serial port/ network/ message AT instruction

(configuration software is offered)
Transmit power 300~460800bps 2400~921600bps 300~460800bps 300~230400bps
Manuals CM-WIFI user manual CM-GPRS user manual CM-WIFI-2NET user manual CX-4G user manual
Software Visual serial port CM-VCOM CM-GPRS module setting software CM-NET module setting software CX-4G module setting software

Small Size Plc Wifi Module 300MW Transmission Power For Remote Device Monitoring

Small Size Plc Wifi Module 300MW Transmission Power For Remote Device Monitoring
