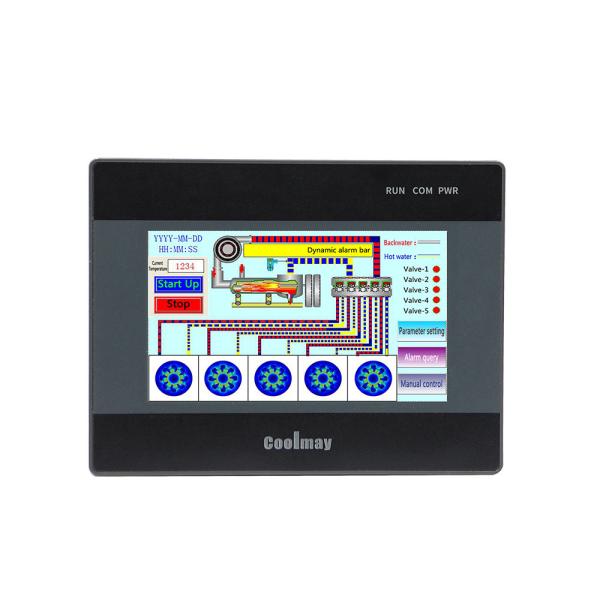

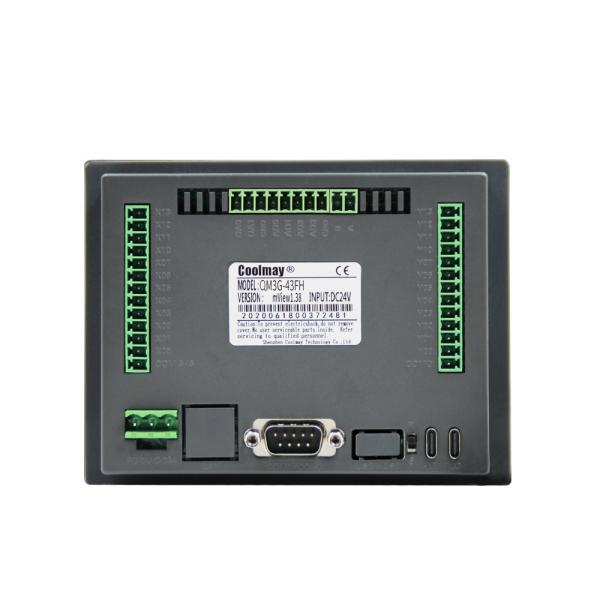

Coolmay 4.3 Inch Integrated HMI PLC All In One Rs232 Rs485 Com Port
Coolmay 4.3 Inch Integrated HMI PLC All In One Rs232 Rs485 Com Port
Coolmay 4.3 Inch Integrated HMI PLC All In One Rs232 Rs485 Com Port
Coolmay 4.3 Inch Integrated HMI PLC All In One Rs232 Rs485 Com Port
Specifications
Brand Name :
Coolmay
Model Number :
QM3G-43FH-16M
Certification :
CE,Rohs
Place of Origin :
China
MOQ :
1
Price :
usd92-usd165per piece
Payment Terms :
Western Union, T/T
Supply Ability :
5000pcs/month
Delivery Time :
5-7 working days
Packaging Details :
box 26*19*10cm
Product :
Integrated PLC HMI
Dimension :
134x102x34mm
Resolution :
480x272
Touch type :
4 wire resistive panel
Digital :
16
Com Port :
RS232,RS485
Power :
DC24V
INPUT :
NPN
Description

Coolmay 4.3 Inch Integrated HMI PLC All In One Rs232 Rs485 Com Port

Coolmay 4.3 Inch Integrated HMI PLC All In One With Modbus Rs232 Rs485 Com Port​

HMI PLC all-in-one solution is to integrate the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication port into a compact unit to meet the needs of customer equipment automation control.

Specification:

DC24V NPN Style

4.3 inch 480x272 pixels

8 digital input

8 digital output

Modbus rs232 + rs485

Analog optional

Integrated HMI PLC All In One

Features:

  1. Customized HMI PLC all-in-one is the first choice for small and medium-sized automation, with multifunctional, stable performance, convenient maintenance, safe and reliable.
  2. Max support 6 analog inputs(7'')and 2 analog outputs, 12 bit precision. Analogs can be directly read by registers and for data output.
  3. Support multi-channel high-speed counting and high-speed pulse functions. High-speed counting conventional 6 single-phase 10KHz
  4. The touch panel adopts 32bit CPU, which runs fast. The performance is equivalent to Tk series HMI.
  5. The HMI and PLC can be encrypted separately. PLC password with 12345678 can completely prohibit program reading, and cannot modify the clock data. (Note: PLC only supports 8-bit password encryption)
  6. Supports external interruption and watchdog function. 7 inch all-in-one machine can select 1 channel to load cell (accuracy is 24 bits) or a CAN communication port.
  7. Applies space 3.81mm pluggable terminal, which is convenient for wiring.
  8. PLC is compatiable with Mitsubishi programming software. HMI uses mView programming software.

Model QM3G-43FH-16M
HMI Part
Cutout size 120*94mm
Display 4.3" TFT
Resolution 480*272
Brightness 400cd/m²
Protect IP65
Backlight time 60,000 hours
Display color 65536 colors
ROM NOR Flash 8MB
RAM 64MB
CPU 32bit CPU 408MHz
Download port Type-C
COM port 1 RS232
PLC Part
Digital Input 8
Digital Output 8
IO Level NPN
Analog Input 4 (Optional)
Analog Output 2 (Optional)
Com Port

1 TYPE-C, 1 RS232

Optional COM port

1 RS485 or 2 RS485 COM ports (one of which is changed from the default RS232 port);

1 WIFI (occupy default RS232 port)
Temperature Ambient environment: 0~50℃ | Storage environment: -20~70℃
Humidity 20%~90% RH
Language Almost all
