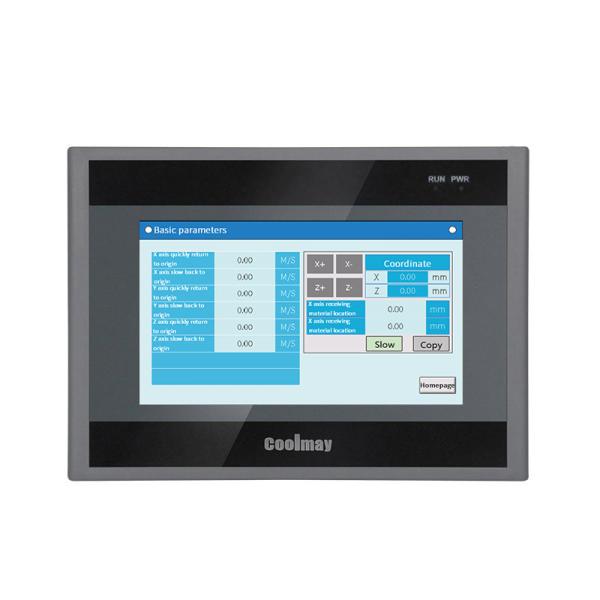

CE HMI PLC All In One Analog Module 24VDC Input Human Machine Interface PLC
CE HMI PLC All In One Analog Module 24VDC Input Human Machine Interface PLC
CE HMI PLC All In One Analog Module 24VDC Input Human Machine Interface PLC
CE HMI PLC All In One Analog Module 24VDC Input Human Machine Interface PLC
Specifications
Brand Name :
Coolmay
Model Number :
QM3G-70KFH
Certification :
CE
Place of Origin :
CHINA, GONGDONG
MOQ :
1 peice
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
15000 Units Per Week
Delivery Time :
3-8 works days
Packaging Details :
carton
RAM :
NOR Flash 16MB
Resolution(pixels) :
800*480
Power Consumption :
6-8W
Input :
24VDC
Description

HMI PLC ALL-IN-ONE ANALOG MODULE 24VDC INPUT HUMAN MACHINE INTERFACE PLC

The all-in-one solution is to integrate the controller, operation interface, input/output, analog input/output, high-speed counting/pulse and communication port into a compact unit to meet the needs of customer equipment automation control.

PRODUCT DESCRIPTION of HMI PLC ALL IN ONE

Features:

-Integrated PLC,HMl,digital I/O(DW/DO), analog I/O(AD/DA), high speed functions,etc..

-Compatible with FX3G/FX3U/FX3S PLC,fast operation.

-Up to 30DI/30DO,16AD/8DA.

-Default 2 PLC programming ports, 1 HMl download port.

-Supports optional one or two Rs485, CAN, WIFl, network port on PLC, and supports optional Rs232,Rs485,network port (under development)on HMI.

-Supports multi-channel high speed count and pulse functions.

  2. Model QM3G-70KFH
    Dimension 226*163*35.6mm
    Cutout size 217*154mm
    Input 24VDC
    Power Consumption 4-6W
    HMI
    Feature 60K colors resistive touch screen, supports portrait display
    Type 7.0"TFT
    Display size 154*87mm
    Resolution(pixels) 800*480
    RAM 64MB (Please inquire if requires storing historical data)
    ROM NOR Flash 8MB
    CPU 32bit CPU 408MHz
    COM ports Type-B HMI download port (can download PLC program through the USB penetrating function), RS232
    Software Coolmay TPWorks HMI Programming Software
    PLC
    I/O level

    - Input: Passive NPN, public terminal isolated

    - Transistor output: Low level NPN, COM connect to negative

    - Relay output: Normally open dry contact
    DO type and load

    - MT: 2A/point, 4A/4 points COM; MT: 0.5A/point, 0.8A/4 points COM, 1.6A/8 points COM

    - MR: 2A/point, 4A/4 points COM, 5A/12 points COM.
    High-speed counting Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10KHz

    High-speed pulse

    (Only for MT models)

    8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

    High-speed counting + high-speed pulse < 480KHz
    COM port 1x mini USB, 1x RS232, 1x RS485
    Software Compatible with GX Developer8.86 and GX WORKS 2
    Detailed info. refer to: “Coolmay QM3G-FH All-in-One User Manual”, “Coolmay CX3G/FX3GC PLC Programming Manual”, “Coolmay TP HMI User Manual”

Maintenance and service

  • Your products will be 18-month warranty excluding artificial damage.
  • You would receive unlimited support via video, phone or email.
  • OEM/ODM is supported, MOQ is 200 sets. More modules or functions can be customized as per your requirements.

CE HMI PLC All In One Analog Module 24VDC Input Human Machine Interface PLC

RFQ:

Q: Do you provide a cargo warranty?
Yes, we provide warranty on all goods.
Q: Can Coolmay provide technical support?
A: We have been in this field for more than 12 years. If you have any questions, please contact us and we will provide advice from our engineers to help you solve the problem.

Q: Does Coolmay keep inventory or trade only?
A:We have a large number of warehouses. Keep a large amount of goods in the warehouse to ensure fast delivery.
Q: What is your MOQ?
A: We provide you with a small order quantity for each item, depending on your specific order!
