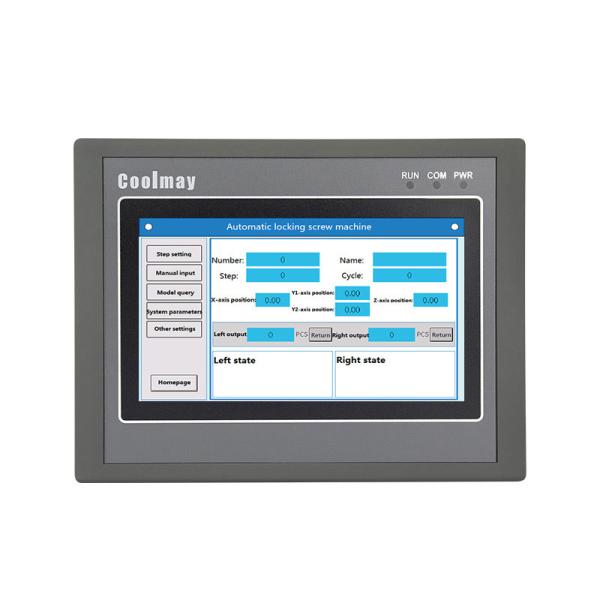

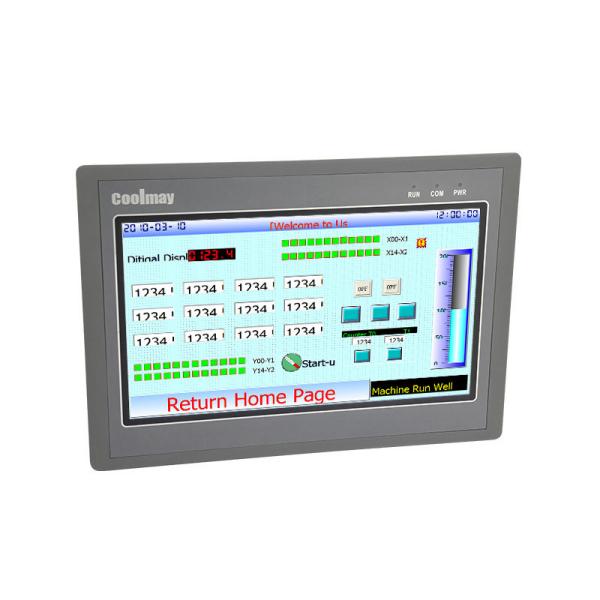

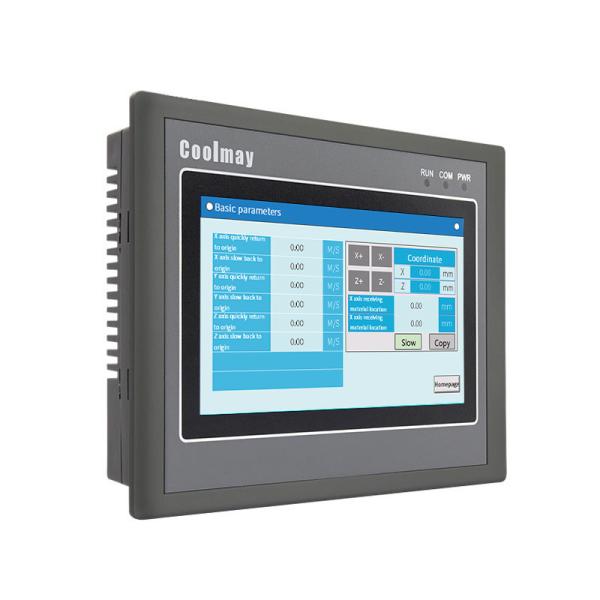

65536 True Colors HMI Display Touch Screen 20% - 90% RH 134*102*32mm
65536 True Colors HMI Display Touch Screen 20% - 90% RH 134*102*32mm
65536 True Colors HMI Display Touch Screen 20% - 90% RH 134*102*32mm
65536 True Colors HMI Display Touch Screen 20% - 90% RH 134*102*32mm
65536 True Colors HMI Display Touch Screen 20% - 90% RH 134*102*32mm
65536 True Colors HMI Display Touch Screen 20% - 90% RH 134*102*32mm
Specifications
Brand Name :
Coolmay
Model Number :
MT6043HQ
Certification :
CE
Place of Origin :
CHINA, GONGDONG
MOQ :
1 peice
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
15000 Units Per Week
Delivery Time :
3-8 works days
Packaging Details :
carton
Backlight :
LED
Backlight time :
60,000 h
Resolution (pixels) :
480*272
COM port :
1 RS232 and 1 RS485
Description

134*102*32mm 65536 true colors hmi display touch screen 20%～90% RH

Human-Machine Interface (HMI) connects industrial control equipment such as programmable logic controllers (PLC), frequency converters, DC speed regulators, and meters. It is a digital device that uses the display screen to write working parameters or input operating commands through an input unit (such as a touchpad, a mouse, etc.) to realize information interaction between humans and machines. It consists of two parts: hardware and software.

PRODUCT DESCRIPTION of HMI PLC ALL IN ONE

Feature:

  1. ①　Support 18 languages.

    ②　Support data storage functions and default as usb flash drive storage,and SD card storage is optional (cannot coexist with usb storage), max.100,0000 data.

    ③　Supports storage of recipe,historical data,curves,alarming listing.

    ④　Support Ethernet port and support Ethernet monitoring.

    ⑤　Support program download, database upload and download by usb flash drive or SD card,and support functions of external mouse,usb flash drive.

  2. Specs Dimension 134*102*32mm
    Cutout size 120*94mm
    Display size 97*56mm
    Weight(kg) Appox. 0.33 kg
    Display Display 4.3” TFT

    Resolution

    (pixels)

    		 480*272
    Brightness 300cd/m2
    Contrast ratio 400:1
    Backlight LED
    Backlight time 60,000 h
    Display color 65536 true colors
    Touch type 4-wire resistive panel
    Storage ROM 128MB
    RAM 64MB
    CPU ARM9 core 400MHz
    Operating system WINCE 5.0
    Interface USB port USB 2.0×1 (USB port and can be connected to external USB flash drive, mouse, etc.)
    Download port Yes (Mini type B male port cable for program download
    Ethernet port Optional
    COM port 1 RS232 and 1 RS485
    Protocol Support MODBUS, free port and common PLC communication Protocol

Maintenance and service

  • Your products will be 18-month warranty excluding artificial damage.
  • You would receive unlimited support via video, phone or email.
  • OEM/ODM is supported, MOQ is 200 sets. More modules or functions can be customized as per your requirements.

65536 True Colors HMI Display Touch Screen 20% - 90% RH 134*102*32mm

FAQ

1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect.
