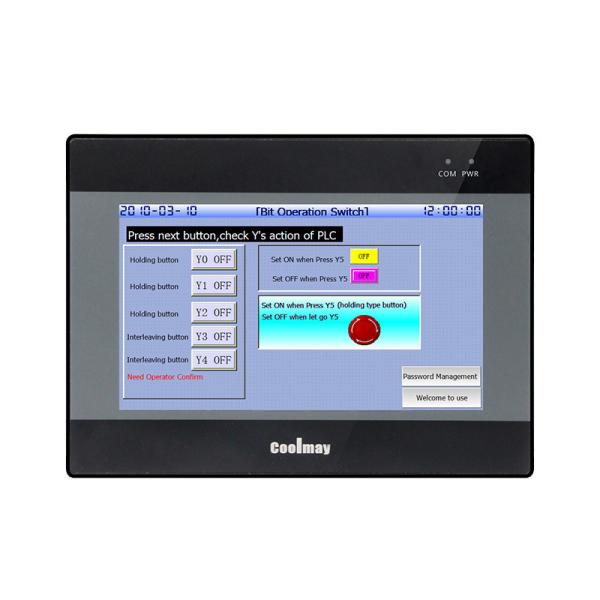

Coolmay 7 inch HMI touch panel PLC Interface cnc controller plc hmi
Features
●7" HMI 800*480 TFT LCD ●High precision and high relability resistive touch panel
●Natural cooling system
●IP65 panel protection level
●LED backlight
●Buit-in storage memory and perpetual calendar
●Provide a large number of vector galleries and self-built galleries
●Software function templated and personalized coexistence
●Support multi-language, batch translation function
●Import and export of batch data and recipes
Advantages
1) Over 10 years brand, Specialized in PLC and HMI automation products studying since 2005.
2) Powerful team, with experienced professional developing team, have already got many patent certificate
3) Various products, and support customized service, you can always find your prefer one.
4) Perfect after-service, support 18 months warranty under right operation, and support lifelong technical introduction.
5) Free training , Case and software for plc controller and hmi touch panel etc will be kept updated in our official website.
6) Exported directly, we are not only the developer, but also the manufacurer, you could get high quality products in very good price.
| Model | TK6070FH |
| Specs | Dimension | 200*146*36mm |
| | Cutout size | 192*138mm |
| | Display size | 154*87mm |
| | Weight(kg) | Appox. 0.54 kg |
| Display | Display | 7.0" TFT |
| | Resolution (pixels) | Standard: 800*480 Optional: 1024*600 (Model: TK6070HD) |
| | Brightness | 300cd/m² |
| | Contrast ratio | 400:1 |
| | Backlight | LED |
| | Backlight time | 60,000 hours |
| | Display color | 65536 colors |
| | Touch type | 4-wire resistive panel |
| Storage | ROM | NOR Flash 16MB |
| | RAM | 64MB (HMI when stores historical data, optional ferroelectric is required) |
| | CPU | 32bit CPU 408MHz |
| Interface | Download port | Type-C, RS232, RS485 |
| | COM port | 1 RS232, 1 RS485 |
| | Optional | 1 WIFI (occupy default RS485 port) |
| | Protocol | RS232/RS485 supports MODBUS, free port and common PLC communication Protocol |
| Calendar | Yes |
| Input Voltage | 12-24VDC±10%<150mA @ 24VDC |
| Consumption | 107mA/24V |
| Protection Class | IP65 (front panel) |
| Temperature | Ambient environment: 0～50℃ | Storage environment: -20～70℃ |
| Humidity | 20%～90% RH |
| Certification | CE |
| Software | CoolMay mView HMI programming software Detailed info. refer to Coolmay TK Series HMI Programming Manual CoolMay TK HMI User Manual |
