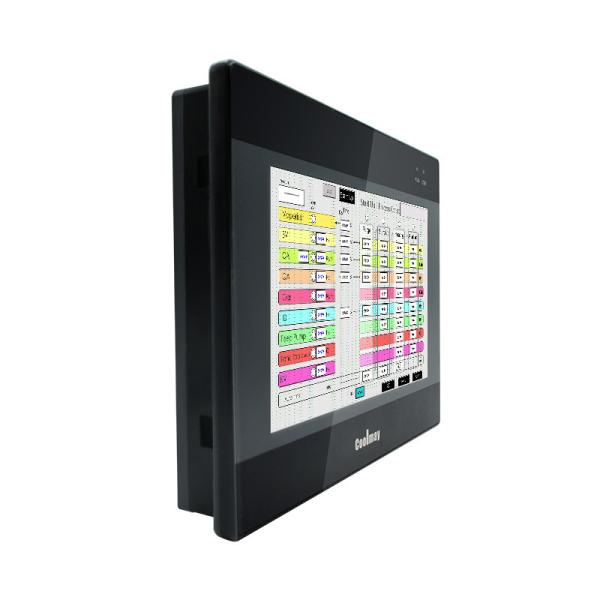

TFT 7 Inch HMI PLC All In One Coolmay Programmable Logic Controller
TFT 7 Inch HMI PLC All In One Coolmay Programmable Logic Controller
TFT 7 Inch HMI PLC All In One Coolmay Programmable Logic Controller
TFT 7 Inch HMI PLC All In One Coolmay Programmable Logic Controller
Specifications
Brand Name :
Coolmay
Model Number :
QM3G-70FH-24MT-2AD-K
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union, Credit Card
Supply Ability :
1500 pcs per week
Delivery Time :
5-8 work days
Packaging Details :
Carton
Size of HMI :
7"TFT
Product Name :
programmable logic controller
Resolution :
800*480
Power Consumption :
6-7W
Display size :
222*125mm
Description

Coolmay 7 Inch Programmable Logic Controller HMI PLC All In One

The package will include

*1 set of device QM3G-70FH-24MT-2AD-K and cables

* Software and manuals are free of charge. They are available on our website or please contact our sales team for download links.

Note:

(1) The device includes functions below

7 inch HMI+PLC all-in-one,

24DI/20DO, relay/transistor mixed output,

RS485 port on PLC, RS232 port on HMI

(2) 1 set of cables is free of charge. Please order in our store for additional cables.

Specifications of QM3G-70FH series

Display Dimension 200*146*36mm
Cutout size 192*138mm
Type 7"TFT
Feature 60K-color resistive touch screen, supports portrait display
Memory RAM 64MB
ROM NOR Flash 16MB
CPU 32bit CPU 408MHz
I/O DI/DO

Max 24DI/20DO

(max 16MR)
DI/DO level

Input: Passive NPN, public terminal isolated

Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact
DO type and load Relay MR/MOS tube, MOStube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM.

Analog I/O

(optional)

 Max 12AI/8AO
AI type (optional)

Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/

0~10V/ 0~5V/ 0~20mA/ 4~20mA/ -5V~5V/ -10V~10V/ mixed
AO type (optional)

0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/

-5~5V/ -10~10V (2AO for 1 minus voltage)
High-speed function High-speed counting

Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,

or 2 ABZ 60KHz + 1 AB phase 10 KHz
High-speed pulse

8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

High-speed counting + high-speed pulse < 480KHz
Connection HMI Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port
1 RS485 (changed from default RS232)
PLC 1 TYPE-C, 1 RS232 (program port)
1 RS485 or 2 RS485 COM ports (RS485 port on HMI and RS232 on PLC will be unavailable)
CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232 port)
Software HMI Coolmay mView HMI Programming Software
PLC Compatible with Mitsubishi GX Developer 8.86 and WORKS 2
