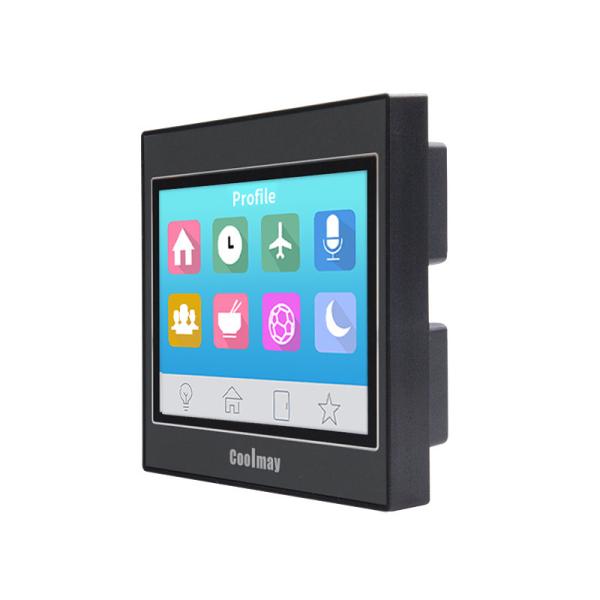

True Color Display Hmi Programming Panel RS485 Quickly Download Program 320×240
True Color Display Hmi Programming Panel RS485 Quickly Download Program 320×240
True Color Display Hmi Programming Panel RS485 Quickly Download Program 320×240
True Color Display Hmi Programming Panel RS485 Quickly Download Program 320×240
Specifications
Brand Name :
Coolmay
Model Number :
MT6037H
Certification :
CE
Place of Origin :
Shenzhen
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100,000 set per month
Delivery Time :
3-8 working days
Packaging Details :
Packed with standard carton box
Display :
3.5”TFT
Cutout size :
72*72mm
Dimension :
88*88*25mm
Resolution :
320*240 pixels
RAM :
64MB
ROM :
128MB
Description

60,000 TFT True Color Display Quickly Download Program Via USB

Parameter:

Specs

Dimension

88*88*25mm

Cutout size

72*72mm

Display size

73*56mm

Weight(kg)

Appox. 0.3 kg

Display

Display

3.5” TFT

Resolution

(pixels)

320*240

Brightness

300cd/m²

Contrast ratio

400:1

Backlight

LED

Backlight time

60,000 h

Display color

65536 true colors

Touch type

4-wire resistive panel

Storage

ROM

128MB

RAM

64MB

CPU

ARM9 core 400MHz

Operating system

WINCE 5.0

Interface

USB port

USB 2.0×1 (USB port and can be connected to external USB flash drive, mouse, etc.)

Download port

Yes (Mini type B male port cable for program download

Ethernet port

Optional

COM port

1 RS232 and 1 RS485

Protocol

Support MODBUS, free port and common PLC communication Protocol

Audio

Optional

Calendar

Yes

Input Voltage

Default as DC12~24±10%V

Consumption

100mA*24V

Protection Class

IP65 (front panel)

Temperature

Ambient environment: 0～50℃ | Storage environment: -20～70℃

Humidity

20%～90% RH

Certification

CE

Software

Coolmay HMI programming software

Function Instruction:

■ Supported PLCs

We support the following manufactures, Mitsubishi. Omron. Panasonic. Siemens. ModBus RTU. ModBus ASCII. ModBus TCP. LG. Delta. Fatek. Vigor and so on. As for new brands, we will supply relevant communication protocol for updating.( The brands referred above are reserved by the relevant manufactures)

■ Quickly download program via USB

Download via USB Ver1.1/2.0 will shorten the download time

■ on-line simulation

After program, you can directly use the PC to connect the controller to simulate whether the human-machine action is correct.

■ Multiple security

Provide password protection to protect the intellectual property of programmer. Provide password protection of using element of screen. The element can be used only when user’s privilege level is higher than the status of the element.

Main features:

  • Provides vector galleries and supports self-built gallery

  • Resistive touch panel with high precision and reliability

  • Supports any-format static images and GIF animation

  • Supports all fonts in Windows

  • 60,000 TFT true color display

  • Optional data storage function, you need to select U disk storage in the HMI software, and the hardware USB

  • interface requires an external USB drive (SD card storage is optional, and cannot coexist with U disk storage)

  • MT60 series support date import or export and program downloading by USB drive

  • Default RS232 and RS485 port, support multiple protocols

  • MT60 series supports vertical display

Naming Rule

1). MT60xx series

MT 6070 H - W - Y

① ② ③ ④ ⑤ ⑥

①Series: MT series HMI touch panel

②Version: MT60 series :based on wince system

MT90 series : NO Operating system

③LCD Size:

037: 3.5" 043: 4.3" 050: 5.0"

070: 7.0" 100: 10.2" 150: 15’’

④H: Standard horizontal, HV: Standard vertical,Wince 5.0

HA:upgraded horizontal,Wince 7.0 KH: different cutout size.

⑤Ethernet /CAN port: W- ethernet port (optional for MT60 series hmi)

CAN-can port (optional for MT90 series hmi,change from rs485 port)

⑥Y: Audio port (optional)

Horizontal HMI model Resolution
MT6037H/MT9037H 320*240
MT6043H/MT9043KH 480*272
MT6050H/MT9050KH/MT6070H/MT9070KH 800*480
MT6070HA/MT6100HA 1024*600
MT6150HA

1024*768
