Multi Holes Tin Plated Copper Sheet / Custom Electrical Grade Copper Bar
Multi Holes Tin Plated Copper Sheet / Custom Electrical Grade Copper Bar
Multi Holes Tin Plated Copper Sheet / Custom Electrical Grade Copper Bar
Multi Holes Tin Plated Copper Sheet / Custom Electrical Grade Copper Bar
Multi Holes Tin Plated Copper Sheet / Custom Electrical Grade Copper Bar
Multi Holes Tin Plated Copper Sheet / Custom Electrical Grade Copper Bar
Specifications
Brand Name :
BG
Model Number :
Tin Plated Copper Sheet
Certification :
ISO9001, SGS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
150 Tons
Delivery Time :
Negotiation
Packaging Details :
Standard export carton package
Name :
Tin Plated Copper Sheet
Hole :
Multi Holes
Thickness: :
2.0mm
Width: :
165mm
Length: :
275mm
Feature :
Excellent electrical conductivity
Finish :
Tin Plated
Size :
Custom
Description

Multi Holes Tin Plated Copper Sheet / Custom Electrical Grade Copper Bar

Tin Plated Copper Sheet Introduction

Battery bus bar are often used as electrical conductors in power distribution systems, where heat can easily be dissipated. Because of the low value of the metal, it can be the best economic option for the application.

As with all custom components, the moment a question or quote request comes to RHI our engineering design team employs a process designed to make sure that each customer makes the right choice in metal, design and fabrication. Whether the choice is to shop online for Rectangular Aluminum Bar, to create custom aluminum or copper bus bar we work side-by-side with your engineers with the shared goal of making your part work from inception to completion.

Tin Plated Copper Sheet Application:

Electronic products, Children toys, Locks, Watches, Glasses, Baby carriage, Bicycle, Kitchen appliances, cameras, printers, office equipment, precision equipment and various kinds of vehicles.

Tin Plated Copper Sheet Details
Product Name: Multi Holes Tin Plated Copper Sheet / Custom Electrical Grade Copper Bar
Thickness: 2.0mm
Width: 165mm
Length: 275mm
Feature: Multi Holes
Finish: Tin Plated
Custom:Yes

Tin Plated Copper Sheet Technical Parameters:

Thickness×Width (mm) 1.5 -20× (15-500)
Copper content 99.98%
Density (g/cm³) 8.9
Resistivity (Ωmm²/m) 0.018
Tensile Strength (MPa) ≥250
Elongation ( %) 45-50%
melting Point 1083℃

Conventional Types and Sizes:

Types Total Thickness Thickness of copper Width Length Weight(kg/m)
BG-1.0*550*650 1.0 0.3mm+0.3mm 550 650 3.18
BG-1.5*550*650 1.5 0.3mm+0.3mm 550 650 4.77
BG-6.0*268*333 6.0 0.3mm+0.3mm 268 333 4.77
BG-3 ×30 3 0.3mm+0.3mm 30mm ≤6000mm 4.806
BG-4 ×40 4 0.3mm+0.3mm 40mm ≤6000mm 8.544
BG-5 ×50 5 0.3mm+0.3mm 50mm ≤6000mm 13.35
BG-6 ×60 6 0.3mm+0.3mm 60mm ≤6000mm 19.224
BG-8*80 8 0.3mm+0.3mm 80mm ≤6000mm 34.176
BG-10*100 10 0.3mm+0.3mm 100mm ≤6000mm 53.4
BG-12*120 12 0.3mm+0.3mm 120mm ≤6000mm 76.896
Others As request

1. Different Material Support

Stainless Steel, Steel, Brass, Bronze, copper, Beryllium copper, Iron, Aluminum, Zinc, Zamak, ect.

2. Exquisite Processing

Stamping, CNC machining, casting, laser cutting, drilling, tapping, laser welding, butt welding, argon arc welding, CNC turning

surface grinder processing, cylindrical grinder processing

3. Multifarious Surface Treatment Provide

Sand blasting,Power coating,Painting,Anodization,Electrophoresis, Zinc/Chrome/Nickel plating,Black oxidation

4. Advance Equipment

CNC turning centers, CNC machining centers, Precision grinding machine, CNC milling machine, Swiss lathes,

Tapping machines, EDM wire cutting , drilling machine, 3-dimensional measuring instruments, projectors, test machine

5. Strick Inspection

All of our operations are strictly compliant with ISO 9001: 2008 guidelines. And During the process, we also have a series of inspection rule. Includes Incoming material inspection, Inspection of work-in-progress, Finished product inspection, Random warehouse inspections

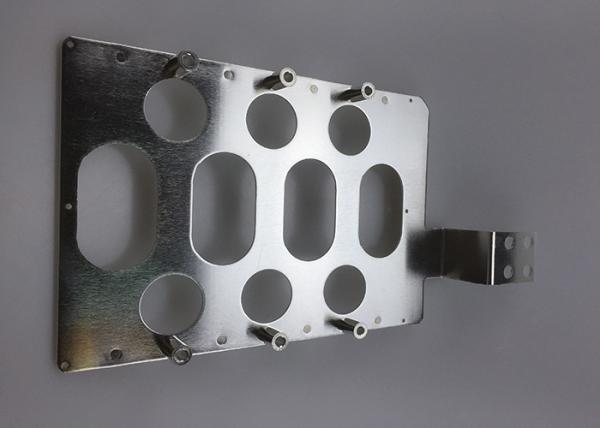

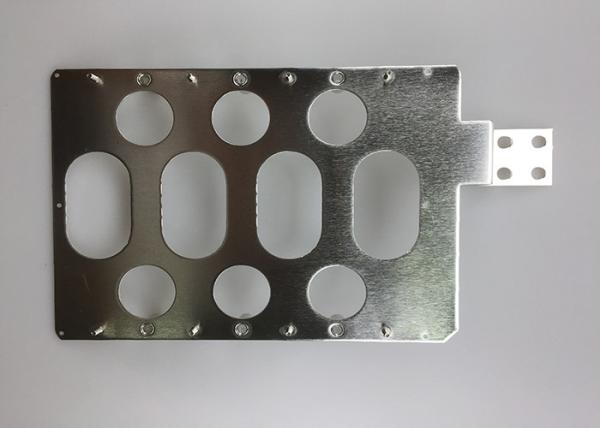

Tin Plated Copper Bus Bar Pictures

Multi Holes Tin Plated Copper Sheet / Custom Electrical Grade Copper Bar
