Good Conductive Tin Plated Copper Bus Bar For Emerson Sealed Lead Acid Battery
Good Conductive Tin Plated Copper Bus Bar For Emerson Sealed Lead Acid Battery
Good Conductive Tin Plated Copper Bus Bar For Emerson Sealed Lead Acid Battery
Good Conductive Tin Plated Copper Bus Bar For Emerson Sealed Lead Acid Battery
Good Conductive Tin Plated Copper Bus Bar For Emerson Sealed Lead Acid Battery
Good Conductive Tin Plated Copper Bus Bar For Emerson Sealed Lead Acid Battery
Good Conductive Tin Plated Copper Bus Bar For Emerson Sealed Lead Acid Battery
Good Conductive Tin Plated Copper Bus Bar For Emerson Sealed Lead Acid Battery
Good Conductive Tin Plated Copper Bus Bar For Emerson Sealed Lead Acid Battery
Good Conductive Tin Plated Copper Bus Bar For Emerson Sealed Lead Acid Battery
Specifications
Brand Name :
Baoge
Model Number :
L03
Certification :
ISO9001,SGS
Place of Origin :
Guangdong, China
MOQ :
100
Price :
Negotiation
Delivery Time :
15-20 work days
Packaging Details :
carton
Material :
Copper
Operating Temperature :
-45 to +150 ºC
Surface Treatment :
Tin Plated
Feature :
Long service life
Advantage :
Good thermal conductivity
Usage :
Battery, power supply, Frequency converter
Description

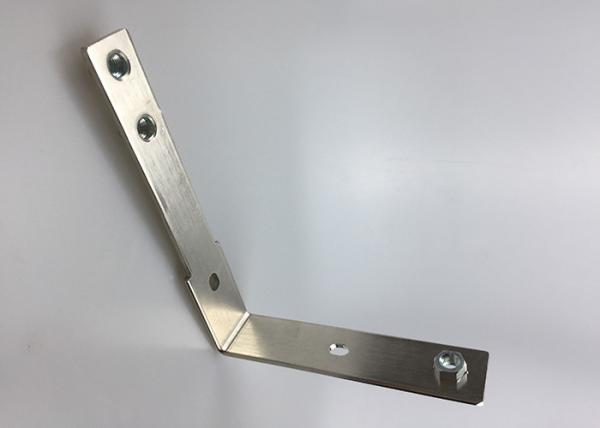

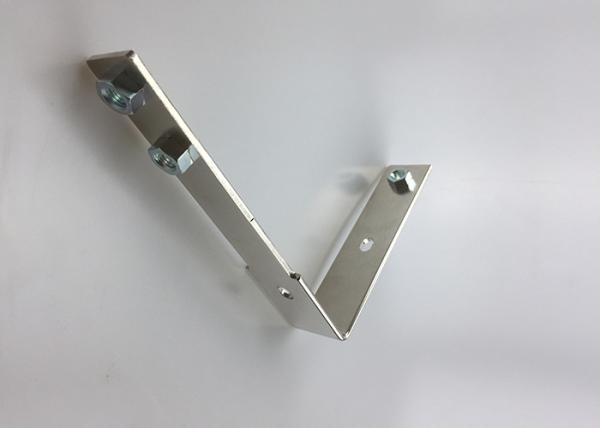

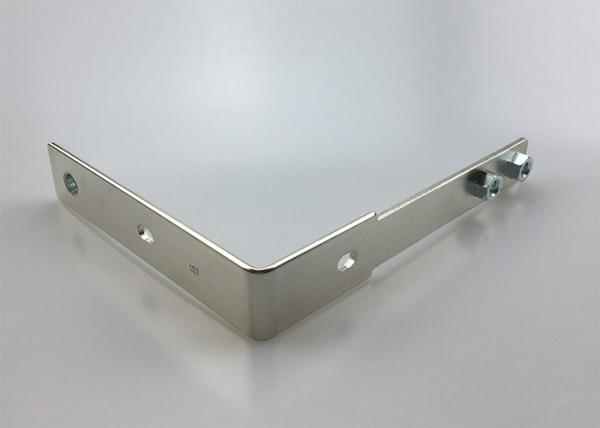

Copper busbar for Emerson sealed lead-acid battery

Copper busbar information:

Material Standard GB : T2 Copper with Min. 99.9%
DIN: E-Cu58 (Number: 2.0065)
EN: Cu-ETP ( Number: CW004A)
ISO: Cu-ETP
UNS: C11000
JIS: C1100
BS: C101
Other Material also can be customized
Resistance 0.00001Ω
Conductivity 57%
Copper Foil of
Single Layer Thickness		 0.1/0.2/0.3/0.5/1.0mm,depend on bus bar structure,
we will advise suitable thickness
Insulation Material PVC Dipping Coating is good performance, Special shaped bus bar can be put on directly, it is not easy to break when it be bent with many times.
Insulation Performance PE and PVC are good, PVC dipping is better than PE heat shrink tubes
Flame Retardant/Fire Resistance UL94-V-0 or upon you request
Leakage Testing PVC Dipping Sleeves:
In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA;
In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA;
Or upon your working voltage, we advise to choose better solution.
Surface Plating Nickel, tin or silver plated etc
Plating Thickness:Normally 3um to 12um
or upon customers' request
Salt Spray Testing In a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest
Bending Testing Bend 10000 times in 15 radian angle without breakage or fracture.
Temperature Rise Testing Depend on flexible busbar cross-sectional area,
We can offer all temperature rising test report before delivery if you request
Operating Temperature -45 to +150 ºC
Copper Foil Tensile Strength ≥500N
Quote Time Quotation sheet will be sent in 1-3 working days when receive your enqiury
Sample/Trial Order
Delivery Time		 In 5 -15 working days according to different bus bar structure and manufacture process
Quality Management Standard Meet Auto Industry IATF 16949
Eco-friendly Certificate
ROHS, REACH

Testing Capabilities

Test Programs Tester Standard Test Result
Endurance test Endurance meter upon your request √
Release force test Universal material testing machine upon your request √
Loop resistance,contact resistance test Loop resistance testing equipment upon your request √
Temperature rising test Temperature rising tester GB/T14048.1-2000 √
Electric conductivity test Conductivity tester YS/T478-2005 √
Salt spray test Salt spraying tester GB/T2423.17-2008 √
Thermal ageing, heat vibration test Air exchange aging test machine upon your request √
Coating thickness test X-ray coating thickness tester upon your request √
Voltage drop test Voltage drop tester upon your request √

Emerson Sealed Lead-acid Battery:

Outstanding features of the product:

The output power factor is up to 0.9, providing more available power KW;

Rack/tower compatible, the panel can be rotated to match different installation methods;

The backup time can be expanded by cascading battery modules;

The built-in battery of the standard machine can be replaced and maintained online;

Ultra-wide input voltage/frequency range for harsh grid environments;

Super charging ability, battery recharge time is short;

Excellent energy saving and environmental protection features:

High power factor up to 0.99 for high power utilization

Meet the EU ROHS Environmental Protection Directive

Adjustable speed intelligent fan, energy saving and noise reduction

Use Area:

Small computer room, internet room,

Office terminal, server, workstation,

Communication node device,

Laboratory equipment, monitoring equipment, automatic control equipment, etc.
