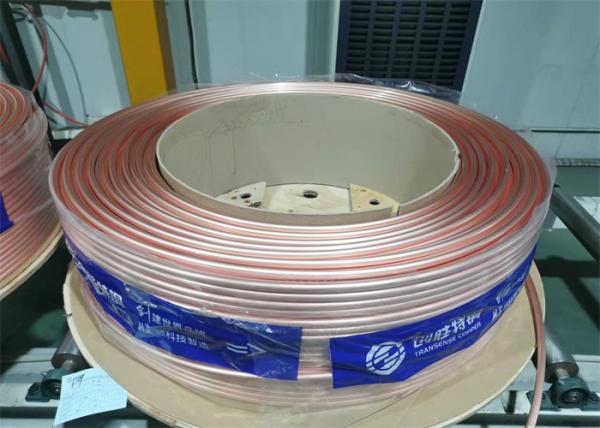

Seamless Level Wound Coil Non Alloy Cu DHP C12000 Copper Material
Seamless Level Wound Coil Non Alloy Cu DHP C12000 Copper Material
Seamless Level Wound Coil Non Alloy Cu DHP C12000 Copper Material
Seamless Level Wound Coil Non Alloy Cu DHP C12000 Copper Material
Specifications
Brand Name :
Transense
Model Number :
CU-DHP;C12000;C11000
Certification :
Rohs
Place of Origin :
Jiangsu, China
MOQ :
1 ton
Price :
USD LME Cu + Fabrication cost
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
400 Tons one month
Delivery Time :
3-4 weeks
Packaging Details :
Coil
Material :
CU-DHP;C12000;
Annealing state :
Soft; semi-hard
Standard :
ASTMB68;JISH3300;GB/T19447;EN12735
Surface :
Washed and clean
Alloy or not :
Non-Alloy
Grade :
Copper
Product name :
Level Wound Coil for Handling of Medical Gases
colour :
Red
Description

Cu-DHP C12000 Copper Seamless Level Wound Coil Tubes For Handling Of Medical Gases


Product Description

The seamless coil tube (Level Wound Coil)produced by our company is mainly used in the connection of heat exchangers and pipeline systems in the air conditioning and refrigeration industries.Level Wound Coil (LWC) Copper Tubes feature minimum copper content of 99.9% as per IS-191 and are available in Forged / Hot Rolled / Extruded as well as Cold Worked finish in different dimensions and specifications. :Level Wound Coil are also available in hard, half-hard as well as soft conditions.Level Wound Coil (LWC) Copper Tubes are available in drawn, light anneal, and soft anneal tempers. Inner diameter payoff eliminates need for vertical de-reeling equipment, allowing tube to be pulled directly from horizontally stacked coils


Application

Level Wound Coil suit to long production runs for industrial applications and available in ultrathin walls, LWC copper tube coil mainly used for air conditioning and refrigeration, heat exchanger.



Size of smooth Level Wound Coil
0.15 0.2 0.28 0.3 0.35 0.42 0.5 0.61 0.76 0.95 1.2 1.5
4 ■ ■ ■ ■ ■ ■ ■
4.75 ■ ■ ■ ■ ■ ■ ■ ■
5 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
6 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
6.35 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
7 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
7.94 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
8 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
9.52 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
10 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
12.7 ■ ■ ■ ■ ■ ■ ■ ■ ■
15.88 ■ ■ ■ ■ ■ ■ ■ ■
19.05 ■ ■ ■ ■ ■ ■
22 ■ ■ ■ ■ ■ ■

Seamless Level Wound Coil Non Alloy Cu DHP C12000 Copper MaterialSeamless Level Wound Coil Non Alloy Cu DHP C12000 Copper MaterialSeamless Level Wound Coil Non Alloy Cu DHP C12000 Copper Material
