cu dhp Copper Condenser Tube 19.05mm OD For Refrigerator Automobile Industry
cu dhp Copper Condenser Tube 19.05mm OD For Refrigerator Automobile Industry
cu dhp Copper Condenser Tube 19.05mm OD For Refrigerator Automobile Industry
cu dhp Copper Condenser Tube 19.05mm OD For Refrigerator Automobile Industry
Specifications
Brand Name :
Transense
Model Number :
CU-DHP;C12000
Certification :
Rohs;ISO9001;ISO14001;ISO45001;PED4.3
Place of Origin :
Jiangsu, China
MOQ :
1 ton
Price :
USD LME Cu + Fabrication cost
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
400 Tons one month
Delivery Time :
3-4 weeks
Packaging Details :
Bundle and wooden case
Product name :
Copper condenser tube
Material :
CU-DHP;C12000
Annealing state :
semi-hard
Standard :
ASTMB68;JISH3300;GB/T19447;EN12735
Surface :
clean
Alloy or not :
Non-Alloy
Grade :
Copper
Warrant :
1 years
Description

Condenser Tube for refrigerator and air-condition, automobile industry

Product Description

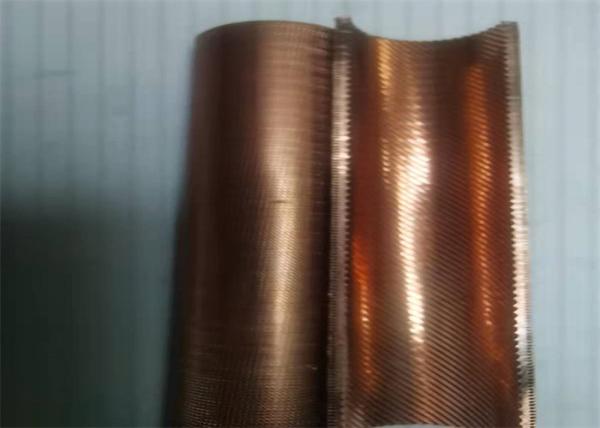

Copper condenser tube,specially designed for the condenser, the sharp ridges on the radial and axial outside finned section of the tube destroy the surface tension of gas, so as to make the condensing liquid dripping. The tube has high heat transfer coefficient and condensing efficiancy.Copper Condenser Tube will pass 100% Eddy Current Testing, 100% hydraulic Testing.OEM of copper condenser tube is available according to drawings and/or samples.Copper condenser tubes are sold well in U.S.A, Germany, Australia etc.

Application

Copper condenser tube especially suitable for central air-conditioner centrifuge, water-cooled screw chilled water units, the shell heat exchanger, heat exchanger with phase transition.Copper condenser tubes are mainly used in heating(gas-fired boilers, condensing boilers, flue gas condensers), in mechanical and automotive engineering(oil coolers, mine coolers, air coolers for diesel engines), in chemical engineering(gas coolers and heater, process cooler), in power plants(air cooler, cooling tower), and in nuclear engineering(uranium enrichment plants).

Packing of copper condenser tube Outside: Plywood sea-worthy case.

Copper Condenser Tube
Item Light tube Wing fragment
O.D. O.D. Wall Thickness minimum Wall Thickness Ridge Height Nominal outside surface area actualoutside surface area Nominal inside surface area Nominal inside surface area
mm mm mm mm mm ㎡/m ㎡/m ㎡/m ㎡/m
1 19.05 18.85 0.635 0.56 0.35 0.0598 0.2282 0.0529 0.0858

cu dhp Copper Condenser Tube 19.05mm OD For Refrigerator Automobile Industrycu dhp Copper Condenser Tube 19.05mm OD For Refrigerator Automobile Industry
